Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX-R 600 SUZUKI GSX-R600 W SUZUKI (VIN: JS1AD311, JS1AD111, JS1AD121) 36A - FUEL TANK (MODEL W)

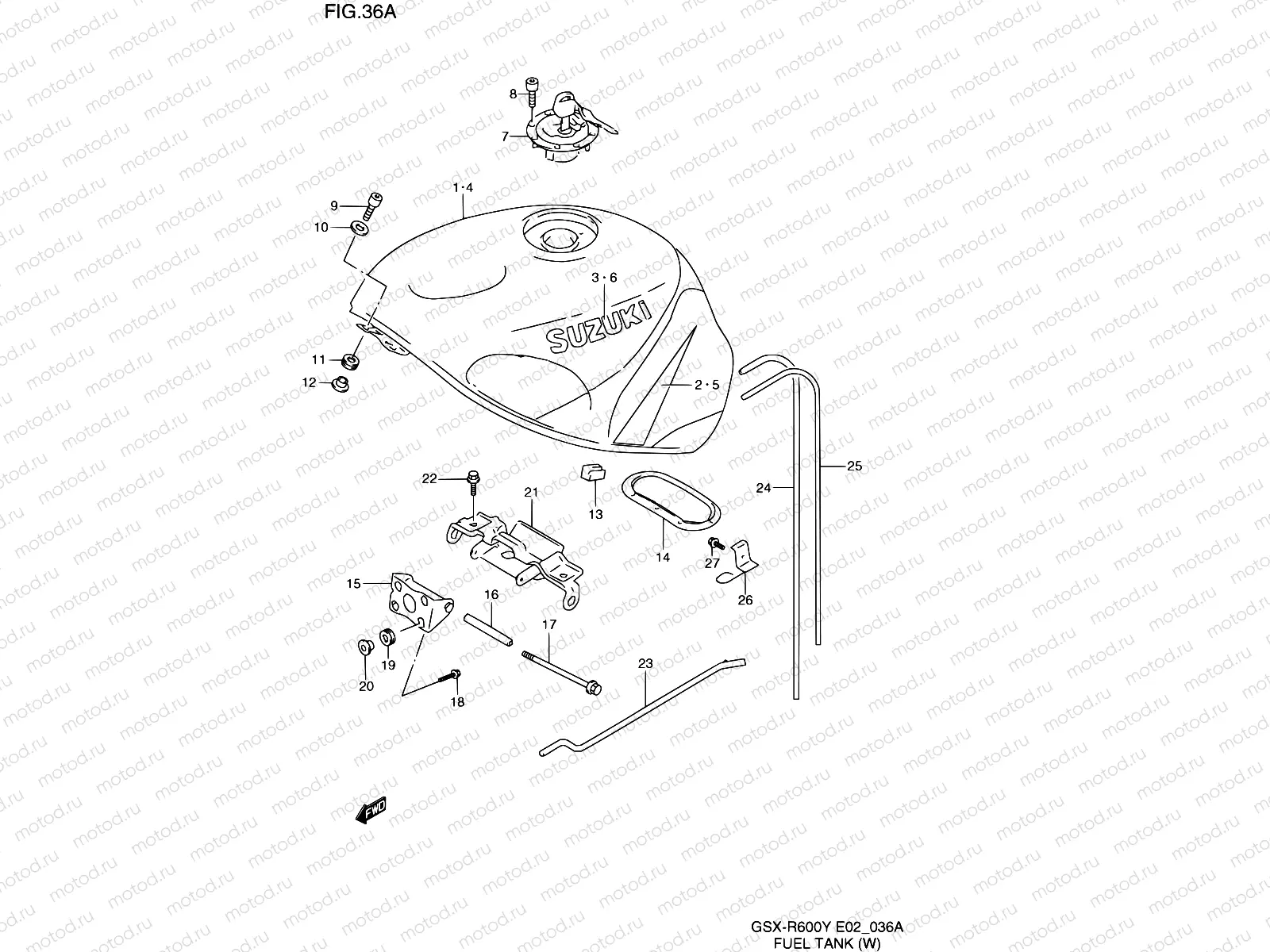

36A - FUEL TANK (MODEL W)

36A - FUEL TANK (MODEL W)

Например: 44100-34E50-Y0W

1

44100-34E50-Y0W

TANK ASSY,FUEL

1

44100-34E50-24K

Tank assy, fuel (charcoal)

2

68110-34E20-019

Autocollant (Black)

3

68111-12C30-33J

Emblem

4

44100-34E40-L99

Tank assy, fuel

5

68110-34E20-1LE

TAPE SET,FUEL TANK

4 497 ₽/шт

6

68111-12C30-0JW

EMBLEM,FUEL TANK

3 400 ₽/шт

7

44200-33821

Fuel cap

8

09106-05017

БОЛТ

113 ₽/шт

9

09139-06029

Болт

178 ₽/шт

10

09160-06084

Шайба 6.5X18X1

81 ₽/шт

11

09320-09009

РЕЗИНКА

187 ₽/шт

12

09169-06062

Кольцо/шайба

114 ₽/шт

13

44541-33E01

Cushion,fuel Tank Side

5 100 ₽/шт

14

44590-02821

Packing Set,fuel Pump

6 545 ₽/шт

15

44530-33E01

BRACKET,FUEL TANK NO.1

3 060 ₽/шт

16

44561-33E10

SPACER,FUEL TANK RR

1 427 ₽/шт

17

01550-0895B

Болт

2 620 ₽/шт

18

09116-06152

BOLT(6X20)

146 ₽/шт

19

09320-08001

Damper

20

09169-06062

Кольцо/шайба

114 ₽/шт

21

44550-33E00

Bracket ,tank

22

01550-0816B

Болт крепёжный

97 ₽/шт

23

44574-33E01

STAY,FUEL TANK

3 315 ₽/шт

24

09352-50005-600

ШЛАНГ

436 ₽/шт

25

09352-70104-600

Hose(7X10.2X600)

561 ₽/шт

26

44480-33E0V

Guide, drain hose

27

01550-0612B

БОЛТ

81 ₽/шт
