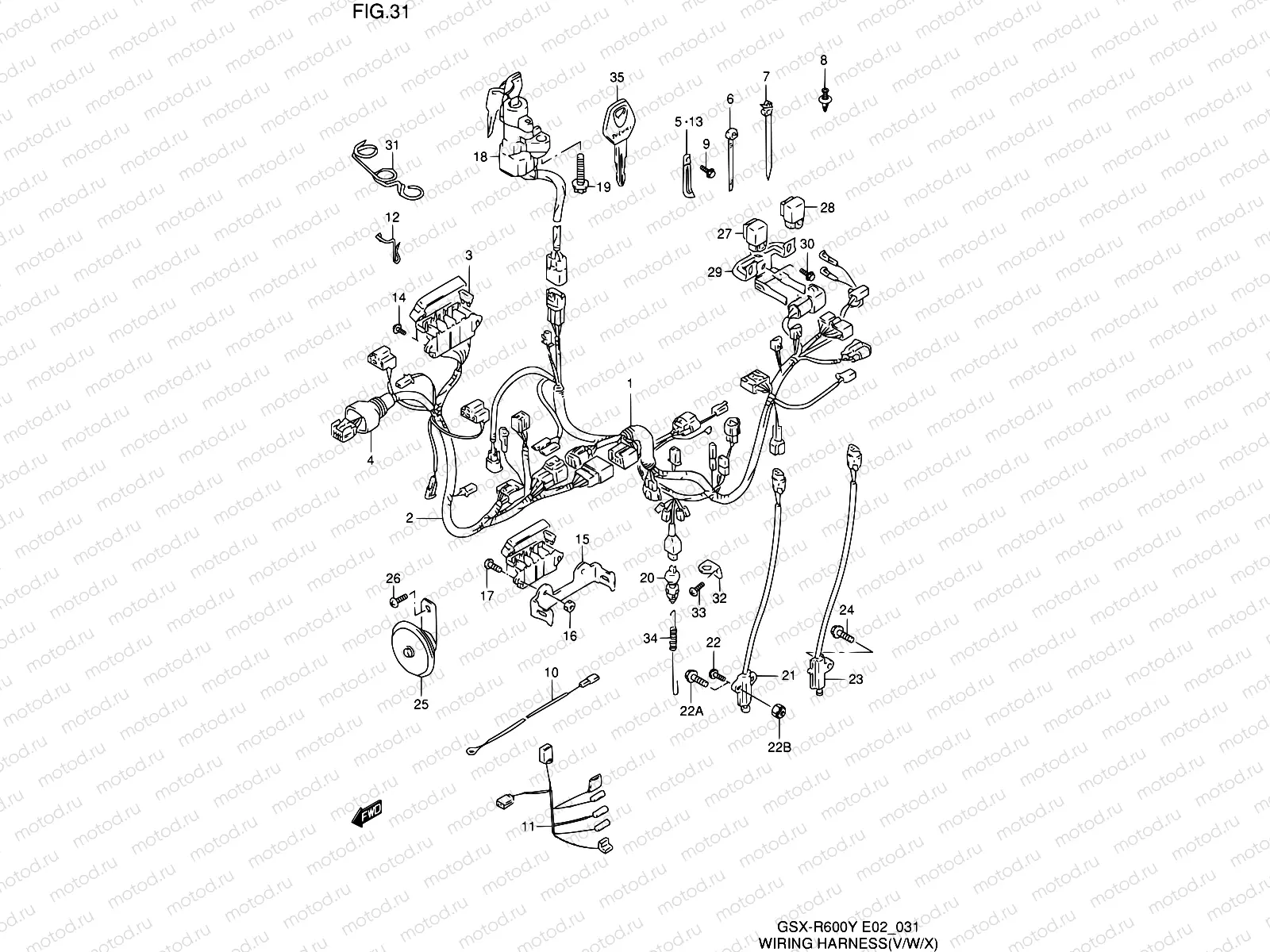

31 - WIRING HARNESS (MODEL V/W/X)

31 - WIRING HARNESS (MODEL V/W/X)

Например: 36610-34E10

1

36610-34E10

Harness,wiring

2

36620-33E20

HARNESS,WIRING,NO.2

2

36620-34E10

HARNESS,WIRING,NO.2

2

36620-34E20

Harness, wiring no.2

3

09481-10504

Ограничитель,10A

1 250 ₽/шт

3

09481-15501-LCP

Fusible (10A)

4

36618-33E00

COVER,SPEEDOMETER COUPLER

438 ₽/шт

5

09404-06039

Clamp(L:65)

194 ₽/шт

6

09407-14403

КЛЕММА

221 ₽/шт

6

09407-18402

Струбцина (L:165)

211 ₽/шт

6

09407-25401

Хомут

221 ₽/шт

7

09407-17402

CLAMP

210 ₽/шт

8

09409-07305-5PK

CLIP(BLACK)

187 ₽/шт

9

01550-0612B

БОЛТ

81 ₽/шт

10

36851-17E10

WIRE,OIL PRESSURE SWITCH LEAD

1 165 ₽/шт

11

36856-33E10

WIRE,CARB HEATER

2 190 ₽/шт

15

36744-33E00

BRACKET,FUSE BOX

837 ₽/шт

16

09159-05048

Гайка

468 ₽/шт

17

02142-0512A

Болт

85 ₽/шт

18

37100-33E20

LOCK ASSY,STEERING

17 712 ₽/шт

18

37100-33E11

LOCK ASSY,STEERING

14 936 ₽/шт

18

37100-02F10

LOCK ASSY,STEERING

17 712 ₽/шт

19

09139-08016

БОЛТ ПЕТЛИ ДВЕРИ (8X20)

170 ₽/шт

20

37740-45D00

SWITCH ASSY,STOP LAMP

1 224 ₽/шт

21

37840-26X51

Switch Assy,side Stand

7 077 ₽/шт

22

01550-0620B

БОЛТ

81 ₽/шт

22

08319-2106B

Гайка

119 ₽/шт

25

38500-08F10

Звуковой сигнал

5 943 ₽/шт

26

09125-08003

Болт

900 ₽/шт

27

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

29

38930-33E00

Bracket,relay

30

01550-0612B

БОЛТ

81 ₽/шт

31

36619-33E00

GUIDE,WIRING HARNESS

1 403 ₽/шт

32

43251-21E00

BRACKET,STOP LAMP SWITCH

375 ₽/шт

33

02142-0608A

Болт

740 ₽/шт

34

09443-06005

SPRING

2 310 ₽/шт

35

37146-33E00

KEY,BLANK

2 899 ₽/шт
