Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX-R 600 SUZUKI GSX-R600 W SUZUKI (VIN: JS1AD311, JS1AD111, JS1AD121) 11A - CARBURETOR (MODEL W/X/Y)

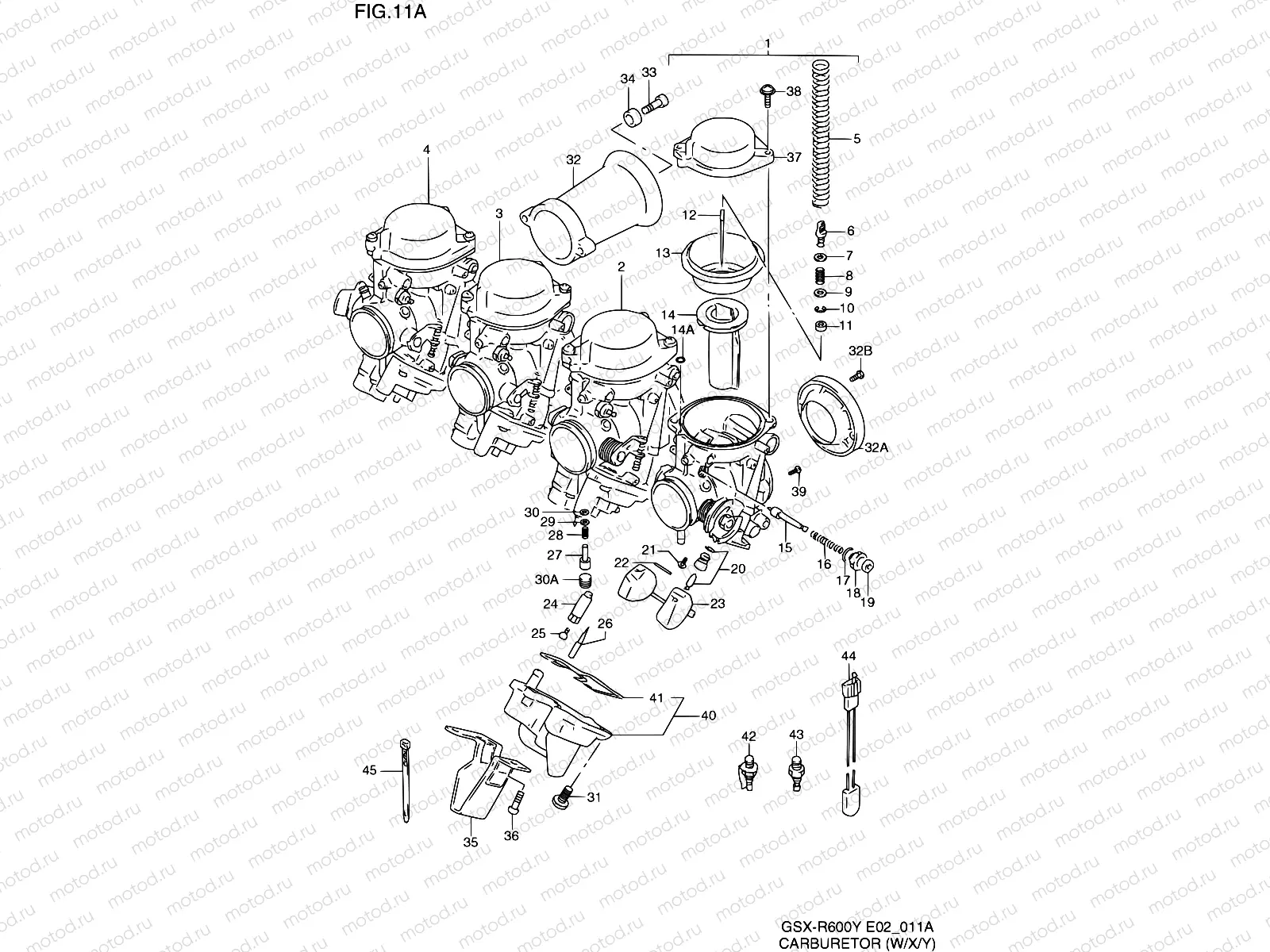

11A - CARBURETOR (MODEL W/X/Y)

11A - CARBURETOR (MODEL W/X/Y)
Например: 13201-34E60
1
13201-34E60
Carburettor (LH)
1
13201-34E80
Carburettor (LH)
1
13201-34E70
Carburettor (LH)
1
13201-34EG0
Carburettor (LH)
1
13201-34EA0
Carburettor (LH)
1
13201-34EF0
Carburettor (LH)
2
13202-34E60
Carburetor,ml
2
13202-34E80
Carburetor assy, ml
2
13202-34E70
Carburetor assy, ml
2
13202-34EG0
Carburetor assy, ml
2
13202-34EA0
Carburetor assy, ml
2
13202-34EF0
Carburetor assy, ml
3
13203-34E60
Carburetor,mr
3
13203-34E80
Carburetor assy, mr
3
13203-34E70
Carburetor assy, mr
3
13203-34EG0
Carburetor assy, mr
3
13203-34EA0
Carburetor assy, mr
3
13203-34EF0
Carburetor assy, mr
4
13204-34E60
Carburettor (RH)
4
13204-34E80
Carburettor (RH)
4
13204-34E70
Carburettor (RH)
4
13204-34EG0
Carburettor (RH)
4
13204-34EA0
Carburettor (RH)
4
13204-34EF0
Carburettor (RH)
5
13573-34E00
Пружина
1 022 ₽/шт
6
13418-33E00
HOLDER
337 ₽/шт
7
09280-05004
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
204 ₽/шт
8
13481-33E00
Пружина
170 ₽/шт
9
13382-44030
Шайба
4 110 ₽/шт
10
13394-17E60
RING,MULTIPLE JET NOZZLE
162 ₽/шт
11
13387-44030
RING
323 ₽/шт
12
13383-34E60
Жиклер
1 146 ₽/шт
12
13383-34E80
.needle, jet (5dz25-3)
12
13383-34E70
.needle, jet (5dhz32-1)
12
13383-34E10
Жиклер игольчатый
1 146 ₽/шт
13
13507-17C02
Diaphragm
3 460 ₽/шт
14
13501-34E00
VALVE,PISTON
12 062 ₽/шт
14
13501-08F00
VALVE,PISTON
10 795 ₽/шт
14
13295-33010
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
194 ₽/шт
15
13411-05300
PLUNGER
2 635 ₽/шт
15
13411-34EC0
.plunger
16
13417-26D00
Пружина
238 ₽/шт
17
13278-47091
O Ring
210 ₽/шт
18
13418-44080
Держатель
867 ₽/шт
19
13682-31210
CAP,STARTER VALVE
459 ₽/шт
20
13370-33E81
Valve Assy,needle(Ni)
7 761 ₽/шт
21
13602-05A10
Болт
238 ₽/шт
22
13254-92910
PIN,FLOAT
188 ₽/шт
23
13250-33E00
Поплавок
6 452 ₽/шт
24
13385-33E00
Держатель двигателя
2 992 ₽/шт
25
09491-27008
Жиклер главный (135)
790 ₽/шт
25
09491-26019
JET,POWER(132.5)
1 189 ₽/шт
25
09491-26016
Жиклер-проводник воздуха
989 ₽/шт
26
09492-12008
Жиклерпроводник
2 635 ₽/шт
27
13279-33E00
Винт топливный
636 ₽/шт
27
13279-19F10
Регулятор
860 ₽/шт
28
13268-48700
Пружина
210 ₽/шт
29
13291-29900
Шайба
162 ₽/шт
30
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
30
13281-05A00
PLUG
170 ₽/шт
31
02112-05127
Болт
81 ₽/шт
32
13667-34E60
Funnel
32
13667-34E00
Заглушка
2 933 ₽/шт
32
02112-04107
Болт
82 ₽/шт
33
13602-18E20
Vis
34
13663-34E60
Ring
35
13454-34E60
BRACKET
1 189 ₽/шт
36
02112-04107
Болт
82 ₽/шт
37
13502-34E00
Крышка
3 441 ₽/шт
37
13502-34E20
Cover assy,diap
37
13502-34EG0
.cover assy, diaphragm
38
13247-33E00
Болт
170 ₽/шт
39
09491-27008
Жиклер главный (135)
790 ₽/шт
39
09491-28011
Жиклер главный 140
899 ₽/шт
39
09491-29008
.jet, pilot air (145)
40
13245-34E00
Body, float
40
13245-34E10
Body, float
41
13258-33E00
O RING
1 328 ₽/шт
42
13650-25E01
HEATER ASSY,CARBURETOR(15W)
2 550 ₽/шт
43
13650-25E01
HEATER ASSY,CARBURETOR(15W)
2 550 ₽/шт
44
13655-25E00
THERMO SWITCH,CARB HEATER
4 457 ₽/шт
45
09407-14403
КЛЕММА
221 ₽/шт
