Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VL 1500 Intruder LC SUZUKI VL1500 K1 Intruder LC SUZUKI (VIN: JS1AL211) 2A - CYLINDER HEAD (REAR)(MODEL K1/K2/K3/K4)

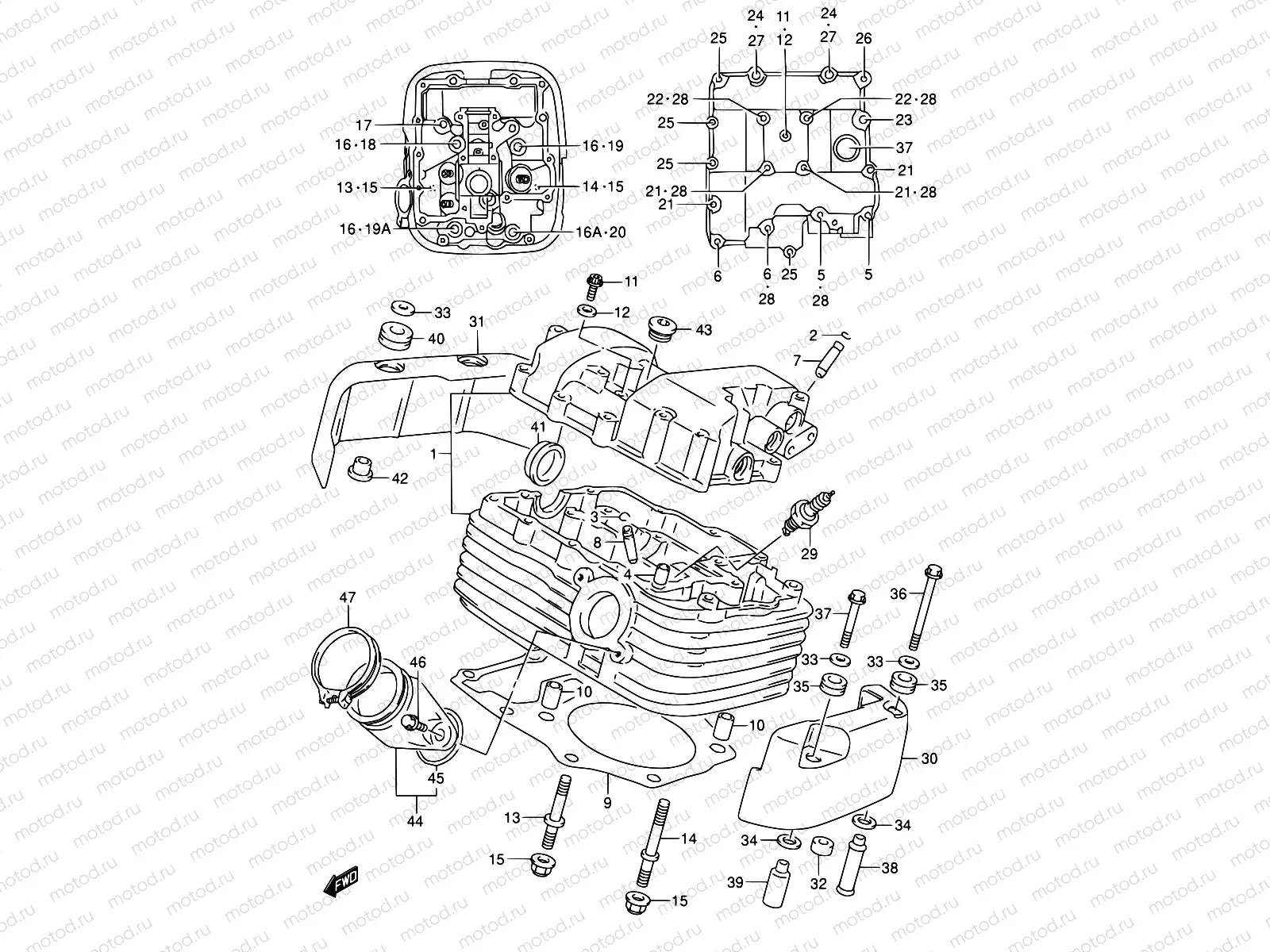

2A - CYLINDER HEAD (REAR)(MODEL K1/K2/K3/K4)

2A - CYLINDER HEAD (REAR)(MODEL K1/K2/K3/K4)

Например: 11103-10F00

1

11103-10F00

Head assy, cylinder rear

1

11103-10F10

HEAD ASSY,CYLINDER RR

98 362 ₽/шт

2

09381-10004

КЛИПС

113 ₽/шт

3

09381-10003

RING,SNAP

114 ₽/шт

4

09206-08001

Стопор

170 ₽/шт

5

09103-06064

BOLT(6X60)

162 ₽/шт

6

09103-06102

BOLT(6X55)

170 ₽/шт

7

11115-38B70

Направляющая впускного клапана

3 230 ₽/шт

8

11115-45740

Направляющая впускного клапана

3 400 ₽/шт

9

11142-10F00

GASKET,CYLINDER HEAD RR

7 025 ₽/шт

10

04211-13189

ШТИФТ

129 ₽/шт

11

07120-0612B

БОЛТ

184 ₽/шт

12

09168-06018

Прокладка

119 ₽/шт

13

09108-08142

Болт

170 ₽/шт

14

09108-08205

Болт

7 080 ₽/шт

15

08316-1008B

Гайка

81 ₽/шт

16

09160-10039

Шайба

119 ₽/шт

16

09168-10017

GASKET(10.5X22X2)

187 ₽/шт

17

09103-08181

BOLT(8X57)

3 010 ₽/шт

18

09103-10178

BOLT(10X180)

872 ₽/шт

19

09103-10179

BOLT(10X190)

872 ₽/шт

19

09103-10180

BOLT(10X200)

759 ₽/шт

20

09103-10181

BOLT(10X215)

12 630 ₽/шт

21

09103-06101

BOLT(6X50)

162 ₽/шт

22

09103-06112

Vis (6x45)

23

09103-08086

BOLT(8X130)

3 090 ₽/шт

24

09103-08213

BOLT(8X268)

1 518 ₽/шт

25

01550-0630A

БОЛТ

102 ₽/шт

26

01550-0635B

Болт

112 ₽/шт

27

09160-08130

Шайба

102 ₽/шт

28

09168-06023

ПРОКЛАДКА

162 ₽/шт

29

09482-00334

SPARK PLUG DPR8EA-9

727 ₽/шт

30

11173-10F00

CAP,CYLINDER HEAD COVER RR,L

13 372 ₽/шт

31

11174-10F00

CAP,CYLINDER HEAD COVER RR,R

10 127 ₽/шт

32

11273-24B00

CUSHION,R CAP

226 ₽/шт

33

09160-06084

Шайба 6.5X18X1

81 ₽/шт

34

09160-09016

Шайба

97 ₽/шт

35

09320-09016

РЕЗИНКА

162 ₽/шт

36

01547-06707

Болт

1 640 ₽/шт

37

01547-06507

Болт крышки головки цилиндров №2

97 ₽/шт

38

11179-10F00

SPACER,CYL HEAD COVER CAP NO.1

1 114 ₽/шт

39

11179-10F10

SPACER,CYL HEAD COVER CAP NO.2

544 ₽/шт

40

09320-13015

CUSHION

204 ₽/шт

41

09241-30008

Заглушка

857 ₽/шт

42

09301-08007

Втулка

194 ₽/шт

43

09248-22004

PLUG,22X11

7 900 ₽/шт

44

13102-10F00

PIPE ASSY,INTAKE RR

12 193 ₽/шт

45

09280-41007

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

1 034 ₽/шт

46

09119-06092

BOLT(6X16)

1 330 ₽/шт

47

09402-52208

ДЕРЖАТЕЛЬ

221 ₽/шт
