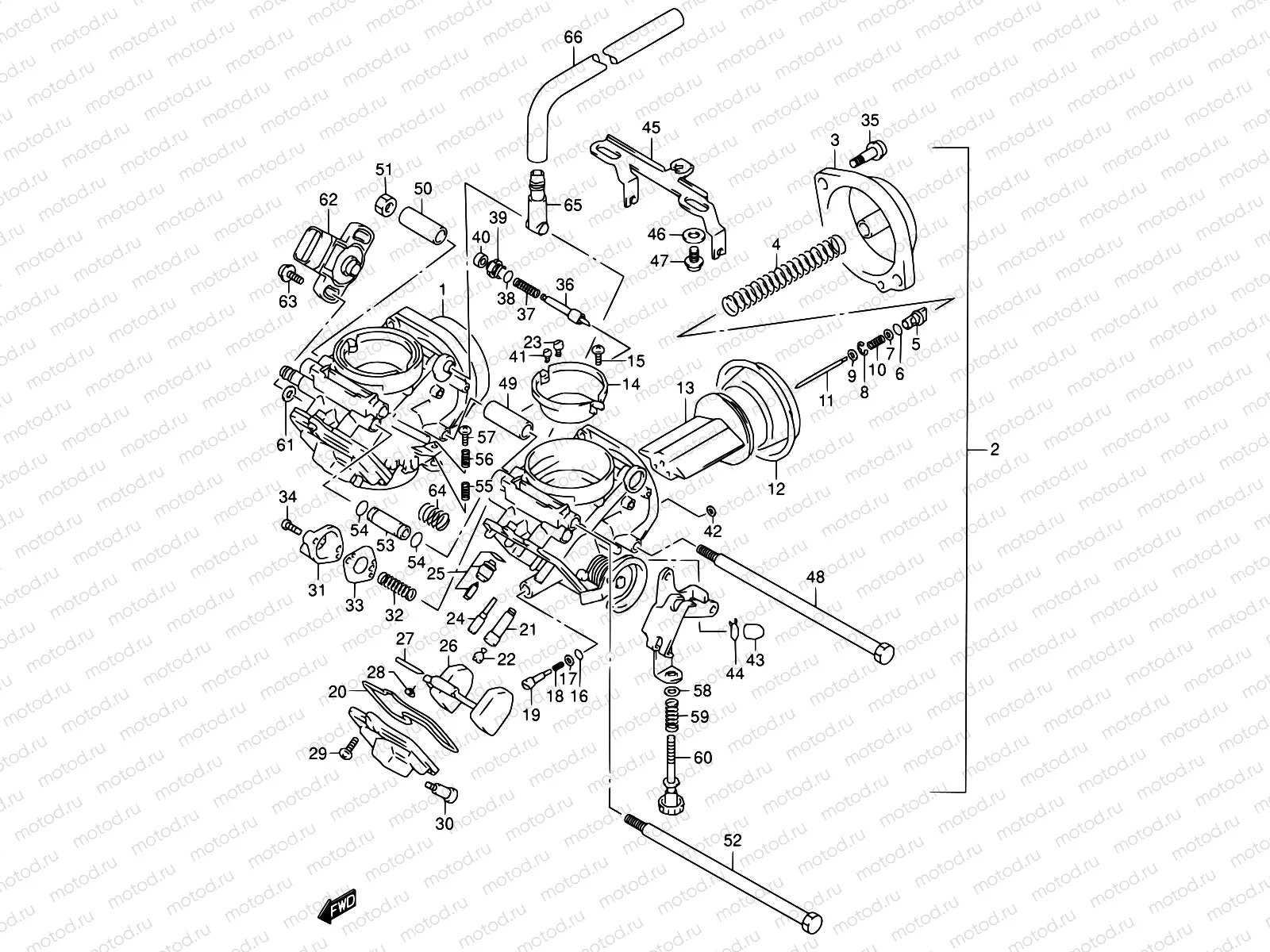

11A - CARBURETOR (MODEL K1/K2/K3/K4)

11A - CARBURETOR (MODEL K1/K2/K3/K4)
Например: 13201-10F90
1
13201-10F90
Carburettor (RH)
1
13201-10F21
Carburettor (RH)
1
13201-10F60
Carburettor (RH)
2
13202-10F90
Carburettor (LH)
2
13202-10F22
Carburettor (LH)
2
13202-10F61
Carburettor (LH)
3
13502-34E00
Крышка
3 441 ₽/шт
4
13573-10F00
Пружина
1 479 ₽/шт
5
13418-33E00
HOLDER
337 ₽/шт
6
09280-05004
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
204 ₽/шт
7
13382-44030
Шайба
4 110 ₽/шт
8
13394-17E60
RING,MULTIPLE JET NOZZLE
162 ₽/шт
9
13387-44030
RING
323 ₽/шт
10
13481-33E00
Пружина
170 ₽/шт
11
13383-10F80
Needle,jet(5e19 (5E19-3)
11
13383-10F90
Жиклер
1 357 ₽/шт
11
13383-10F00
Жиклер
1 376 ₽/шт
11
13383-10F10
Жиклер
2 342 ₽/шт
12
13507-17C02
Diaphragm
3 460 ₽/шт
13
13501-34E00
VALVE,PISTON
12 062 ₽/шт
14
13667-34E00
Заглушка
2 933 ₽/шт
15
02112-04107
Болт
82 ₽/шт
16
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
17
13291-29900
Шайба
162 ₽/шт
18
13268-48700
Пружина
210 ₽/шт
19
13279-33E00
Винт топливный
636 ₽/шт
20
13258-33E00
O RING
1 328 ₽/шт
21
13385-33E00
Держатель двигателя
2 992 ₽/шт
22
09491-22014
JET,MAIN(112.5)
904 ₽/шт
22
09491-22013
Жиклер главный (110)
728 ₽/шт
22
09491-23019
Жиклер главный (117.5)
1 615 ₽/шт
22
09491-23012
Жиклер главный (115)
1 406 ₽/шт
23
09491-80009
JET,MAIN(80)
790 ₽/шт
23
09491-55004
JET,MAIN(55)
790 ₽/шт
24
09492-35021
Жиклер пропускной (35)
1 189 ₽/шт
24
09492-32010
JET,PILOT(32.5)
1 212 ₽/шт
25
13370-33E81
Valve Assy,needle(Ni)
7 761 ₽/шт
26
13250-33E00
Поплавок
6 452 ₽/шт
27
13254-92910
PIN,FLOAT
188 ₽/шт
28
13602-05A10
Болт
238 ₽/шт
29
13603-14A00
Болт
372 ₽/шт
30
13247-02340
Заглушка дренажная
258 ₽/шт
30
13247-02340
Заглушка дренажная
258 ₽/шт
31
13502-10F00
COVER ASSY
2 092 ₽/шт
32
13271-10F00
Пружина
321 ₽/шт
33
13480-10F01
Diaphragm Assy
1 275 ₽/шт
34
13601-04148
Болт
172 ₽/шт
35
13247-33E00
Болт
170 ₽/шт
36
13411-05300
PLUNGER
2 635 ₽/шт
37
13417-26D00
Пружина
238 ₽/шт
38
13278-47091
O Ring
210 ₽/шт
39
13418-44080
Держатель
867 ₽/шт
40
13682-31210
CAP,STARTER VALVE
459 ₽/шт
41
09493-32007
JET,AIR(160)
931 ₽/шт
41
09493-38004
JET,PILOT AIR(1.9)
1 118 ₽/шт
42
13295-33010
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
194 ₽/шт
43
13274-84000
CAP
204 ₽/шт
44
09401-06101
CLIP
114 ₽/шт
45
13413-10F00
LEVER
1 826 ₽/шт
46
13557-33E00
PACKING
170 ₽/шт
47
02142-0408B
Винт
82 ₽/шт
48
13612-10F10
Vis
49
13685-10F20
Pipe
50
13685-10F30
Pipe
51
13324-03010
Nut
52
13612-10F00
Vis
53
13685-10F10
PIPE
837 ₽/шт
54
13246-87400
O RING
364 ₽/шт
55
13268-96111
Пружина
179 ₽/шт
56
13271-44B00
Пружина
238 ₽/шт
57
13267-44B00
Болт
238 ₽/шт
58
13392-78B00
Rondelle
59
13271-33C00
Пружина
238 ₽/шт
60
13267-10F00
SCREW,ADJUST
1 498 ₽/шт
61
13663-31010
Шайба
187 ₽/шт
62
13580-02F01
Sensor Assy,throttle
13 600 ₽/шт
63
13605-20C00
Болт
204 ₽/шт
64
13573-06C10
Пружина
512 ₽/шт
65
13683-10F00
HOSE
1 032 ₽/шт
66
13683-21E11
Hose
