Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VL 1500 Intruder LC SUZUKI VL1500 K1 Intruder LC SUZUKI (VIN: JS1AL211) 28A - SPEEDOMETER (MODEL X/Y/K1/K2/K3/K4)

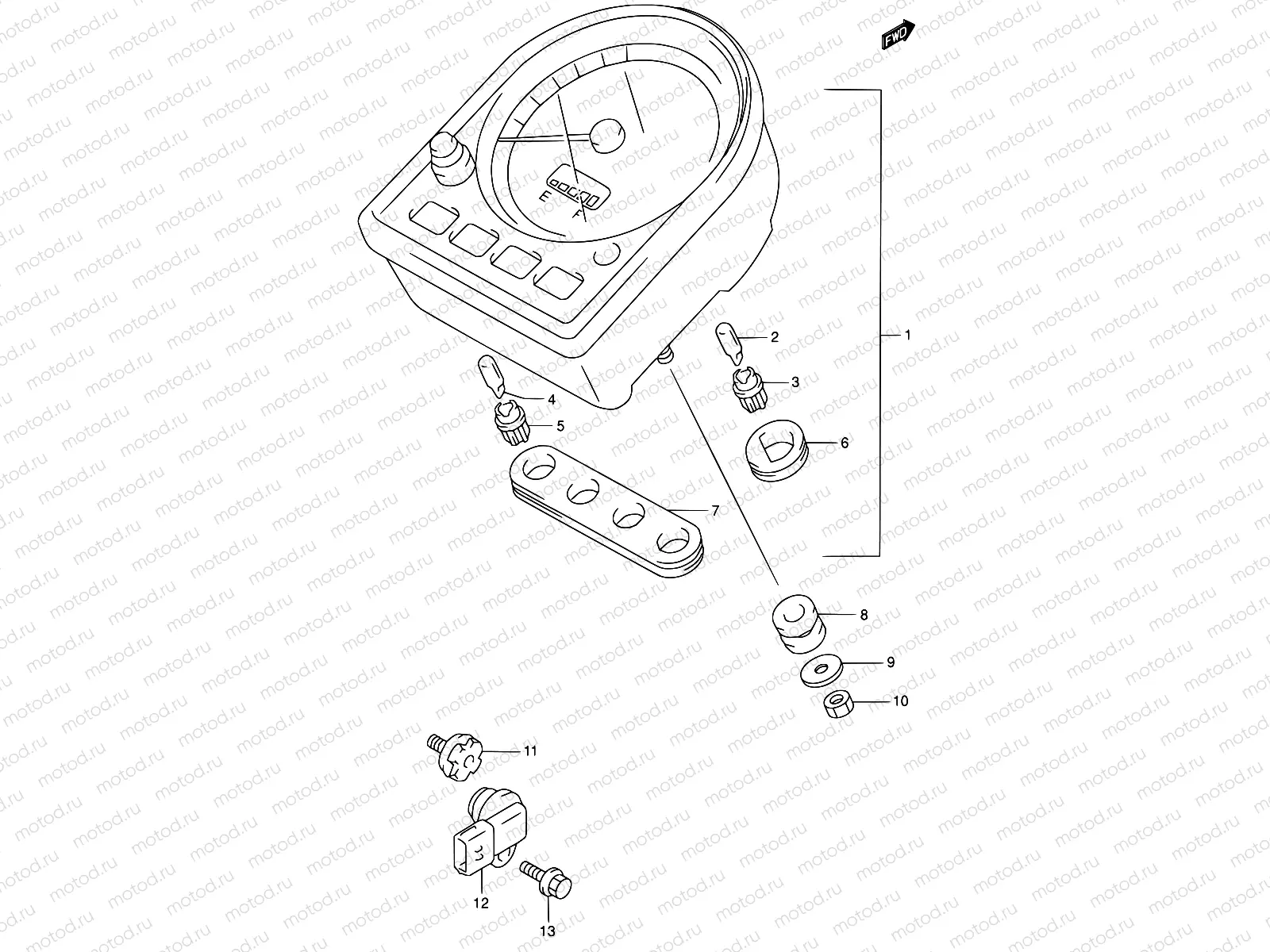

28A - SPEEDOMETER (MODEL X/Y/K1/K2/K3/K4)

28A - SPEEDOMETER (MODEL X/Y/K1/K2/K3/K4)

Например: 34100-10F80

1

34100-10F80

Meter assy,spee

1

34100-10F70

Speedometer

2

09471-12189-LCP

Bulb 14v/0,84w

3

34172-71E70

SOCKET,BULB

255 ₽/шт

4

09471-12108

ЛАМПА НАКАЛИВАНИЯ

226 ₽/шт

5

34173-19D00

SOCKET

1 255 ₽/шт

6

34198-02F00

BLIND,CAP

997 ₽/шт

7

34198-10F00

Blind, cap

8

34189-32B00

CUSHION

255 ₽/шт

9

09160-05037

Шайба

97 ₽/шт

10

08310-0005B

Гайка

1 370 ₽/шт

11

34981-10F00

ROTOR,SPEED

3 273 ₽/шт

12

34990-10F00

Сенсор скорости

13 940 ₽/шт

13

09106-06073

БОЛТ

170 ₽/шт
