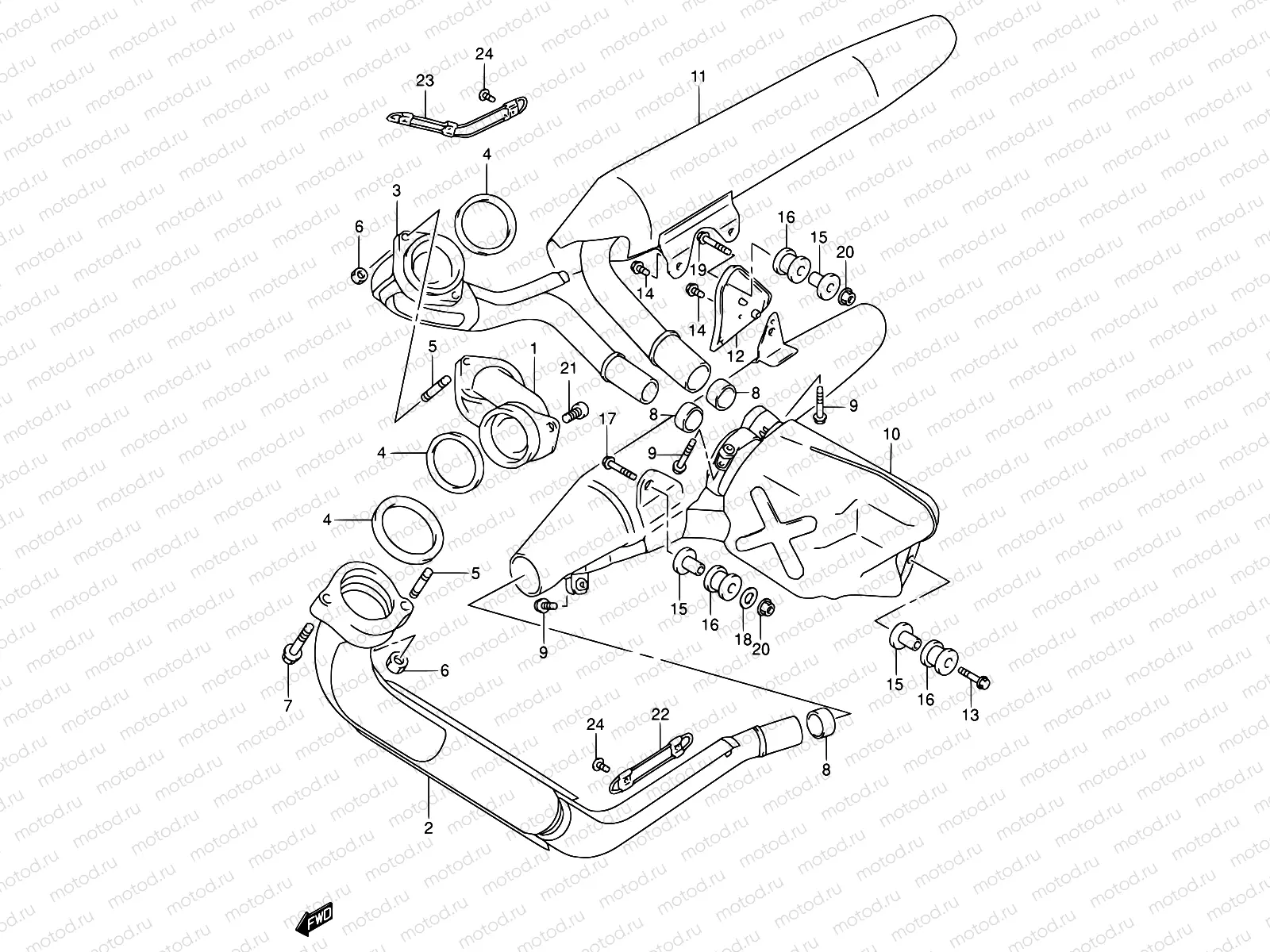

13A - MUFFLER (MODEL K1/K2/K3/K4)

13A - MUFFLER (MODEL K1/K2/K3/K4)
Например: 14111-10F01
1
14111-10F01
MANIFOLD,EXHAUST RR
22 440 ₽/шт
2
14150-10FA0
PIPE,EXHAUST,R
77 418 ₽/шт
3
14160-10F00
PIPE,EXHAUST,L
73 678 ₽/шт
4
14181-10F00
Прокладка
759 ₽/шт
5
09108-08142
Болт
170 ₽/шт
6
08313-20087
Гайка
1 330 ₽/шт
7
09104-08026
BOLT(8X35)
194 ₽/шт
8
14771-13E10
Connector,muf
1 394 ₽/шт
9
09106-08137
BOLT(8X33)
3 990 ₽/шт
10
14305-10F41
MUFFLER,R
112 200 ₽/шт
10
14305-10F30
Muffler comp,r
11
14340-10F41
MUFFLER,L
104 720 ₽/шт
11
14340-10F30
Body comp,muf,l
12
14770-10F00
BRACKET,MUFFLER SUPPORT
3 485 ₽/шт
13
09118-08152-A05
BOLT(8X45)
3 170 ₽/шт
14
09103-08069
Болт
3 440 ₽/шт
15
09180-08156
Кольцо/шайба
272 ₽/шт
16
09320-12049
САЙЛЕНТБЛОК
694 ₽/шт
17
01550-0845B
Болт
113 ₽/шт
18
09160-08146
Шайба
162 ₽/шт
19
01550-0840B
Болт
119 ₽/шт
20
08361-2508A
Гайка
337 ₽/шт
21
07130-0825B
Болт
129 ₽/шт
22
14780-10F10
GUARD,EXH,R
3 363 ₽/шт
23
14790-10F10
GUARD,EXH,L
3 988 ₽/шт
24
09139-06078
SCREW(6X10)
1 720 ₽/шт
