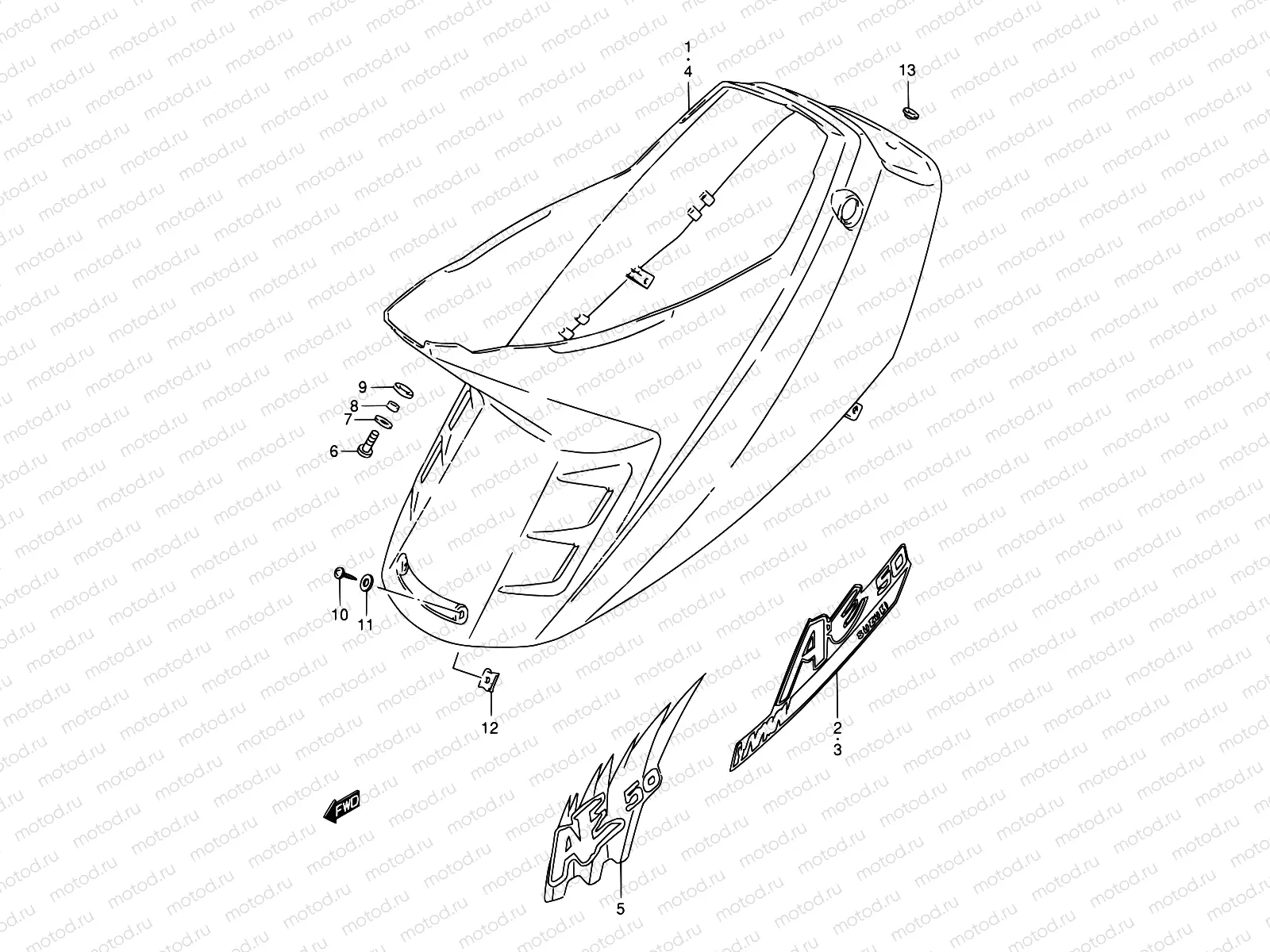

29B - FRAME COVER (MODEL N/P/R/T)

29B - FRAME COVER (MODEL N/P/R/T)
Например: 47310-36D50-019
1
47310-36D50-019
Cover, frame (black)
1
47310-36D50-14C
over, frame (red)
2
68131-36D20-B0W
.emblem, frame cover rh
2
68131-36D20-B0Z
.emblem, frame cover rh
2
68131-36D20-B1A
.emblem, frame cover rh
2
68131-36D20-B9C
.emblem, frame cover rh
3
68141-36D20-B0W
.emblem, frame cover lh
3
68141-36D20-B0Z
.emblem, frame cover lh
3
68141-36D20-B1A
.emblem, frame cover lh
3
68141-36D20-B9C
.emblem, frame cover lh
4
47311-36C20-019
over, frame (black)
5
68131-36D40-Y0C
Emblem, rh
5
68141-36D40-Y0C
Emblem, lh
6
09136-06052
Screw
7
09160-06052
Шайба
136 ₽/шт
8
09180-06306
SPACER(6.5X9X5)
1 250 ₽/шт
9
09320-10077
Cushion
1 720 ₽/шт
10
09136-06052
Screw
11
08322-0105B
Шайба
81 ₽/шт
12
09148-05020
Гайка
97 ₽/шт
13
09169-06071
Шайба
97 ₽/шт
