Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI AE 50 Sepia SUZUKI AE50K R Sepia SUZUKI 17 - HEADLAMP - FRONT TURN SIGNAL

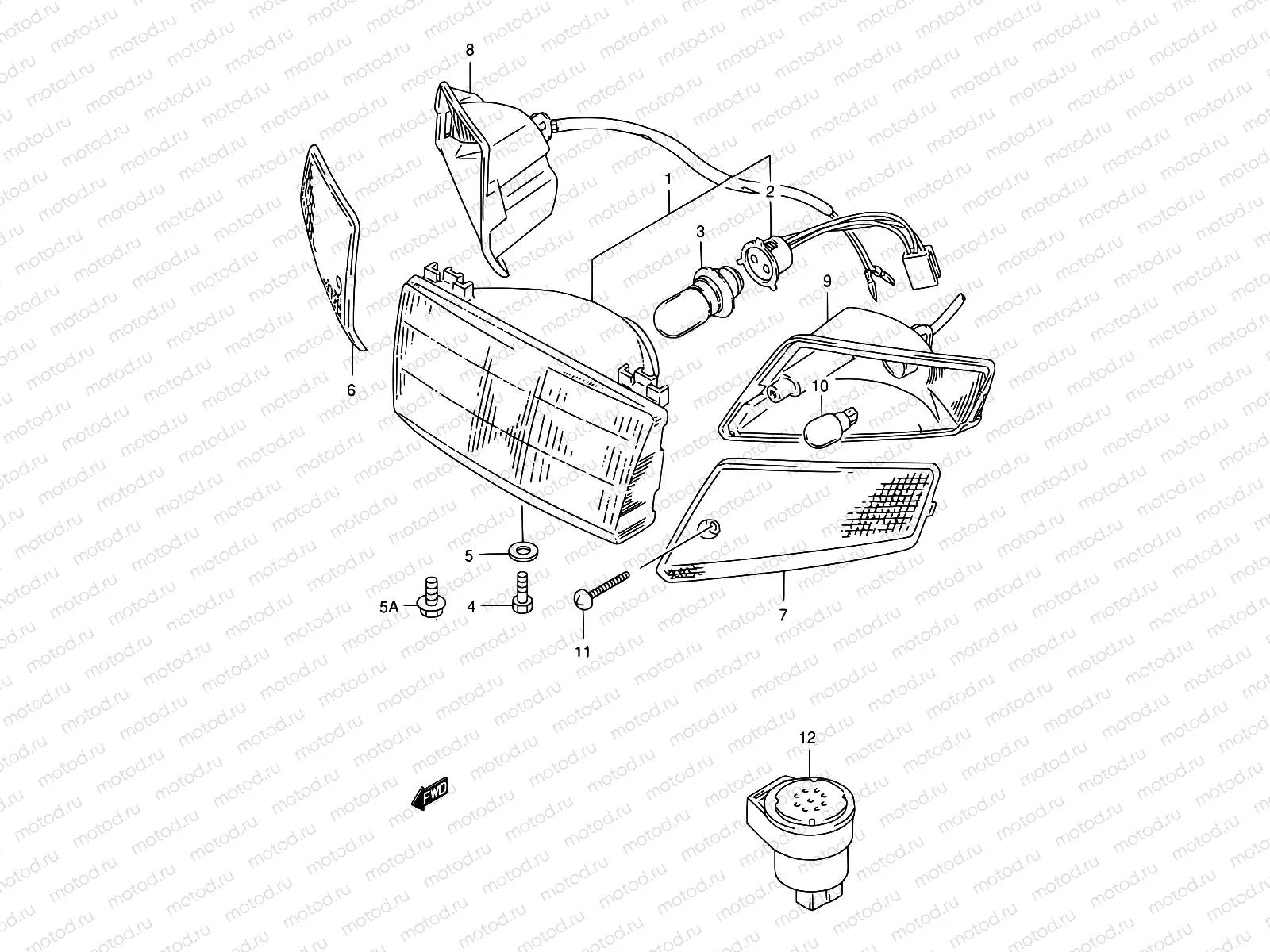

17 - HEADLAMP - FRONT TURN SIGNAL

17 - HEADLAMP - FRONT TURN SIGNAL

Например: 35100-36C10-999

1

35100-36C10-999

Optique de phare

2

35171-16A00

.socket

3

09471-12159

BULB12V25/25W,KOITO9

4

09128-05101

SCREW(5X12)

102 ₽/шт

5

09160-05501

Шайба (5.5X20X1.2)

81 ₽/шт

6

35612-36C00

LENS,FR TURNSIGNAL LAMP,R

657 ₽/шт

7

35632-36C00

LENS,FR TURNSIGNAL LAMP,L

2 125 ₽/шт

8

35615-36C00

Housing, front turn rh

9

35635-36C00

Housing, front turn lh

10

09471-12114

BULB(12V10W,TOKAI DENSO)

2 850 ₽/шт

11

03511-0425A

Болт

1 060 ₽/шт

12

38610-36C00

Relay assy, turn signal
