Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI AE 50 Sepia SUZUKI AE50K R Sepia SUZUKI 18 - HEADLAMP - FRONT TURNSIGNAL (E02,E04,E21,E24)

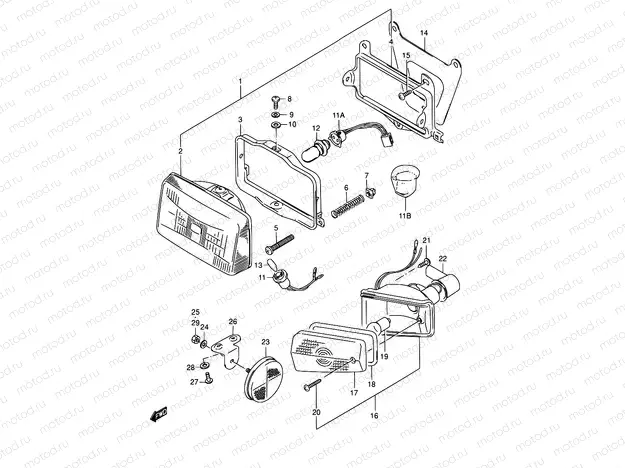

18 - HEADLAMP - FRONT TURNSIGNAL (E02,E04,E21,E24)

18 - HEADLAMP - FRONT TURNSIGNAL (E02,E04,E21,E24)

Например: 35100-36C20

1

35100-36C20

HEAD LAMP ASSY

1

35100-36C30

Headlamp assy

1

35100-36C40

Headlamp assy

1

35100-36C50

Headlamp assy

2

35100-36C20

HEAD LAMP ASSY

2

35121-36C30

.lamp unit

2

35121-36C40

.lamp unit

2

35121-36C50

.lamp unit

3

35127-36C20

.housing

4

35130-36C20

.ring

5

35151-45900

Винт

301 ₽/шт

6

35154-10B00

Spring

7

35135-12E20

NUT,ADJUSTING

192 ₽/шт

8

35136-16700

Болт

301 ₽/шт

9

08321-0105A

Пластина замка

81 ₽/шт

10

08322-0105B

Шайба

81 ₽/шт

11

36118-04A00

SOCKET

829 ₽/шт

11

35171-36C40

Socket

11

35173-46790

Cover,head lamp

12

09471-12017

.bulb (12v,25/25w)

12

997SO-12090

Bulb

13

09471-12063-LCP

Bulb 6v/1,7w

14

35195-36C20

Plate,headlamp

15

02142-0516B

Болт

85 ₽/шт

16

35601-36C30

Lamp, front turnsignal rh

16

35602-36C30

Lamp, front turnsignal lh

17

35612-36C30

.lens, rh

17

35632-36C30

LENS,L

637 ₽/шт

18

35613-36C30

Gasket

19

997SO-12177

Bulb

20

03511-0416A

Болт

900 ₽/шт

21

03541-0512B

Винт

81 ₽/шт

22

35650-36C10

Boot

23

35950-14A00

REFLECTOR,REFLEX FR

2 295 ₽/шт

23

35950-26941

Reflector, front side

24

08321-0105A

Пластина замка

81 ₽/шт

25

08310-0005B

Гайка

1 370 ₽/шт

26

35956-36C10

Bracket, rh

26

35957-36C00

Bracket, lh

26

35957-36C10

Bracket, lh

27

02142-0512A

Болт

85 ₽/шт

28

08322-0105B

Шайба

81 ₽/шт

29

08310-0005B

Гайка

1 370 ₽/шт
