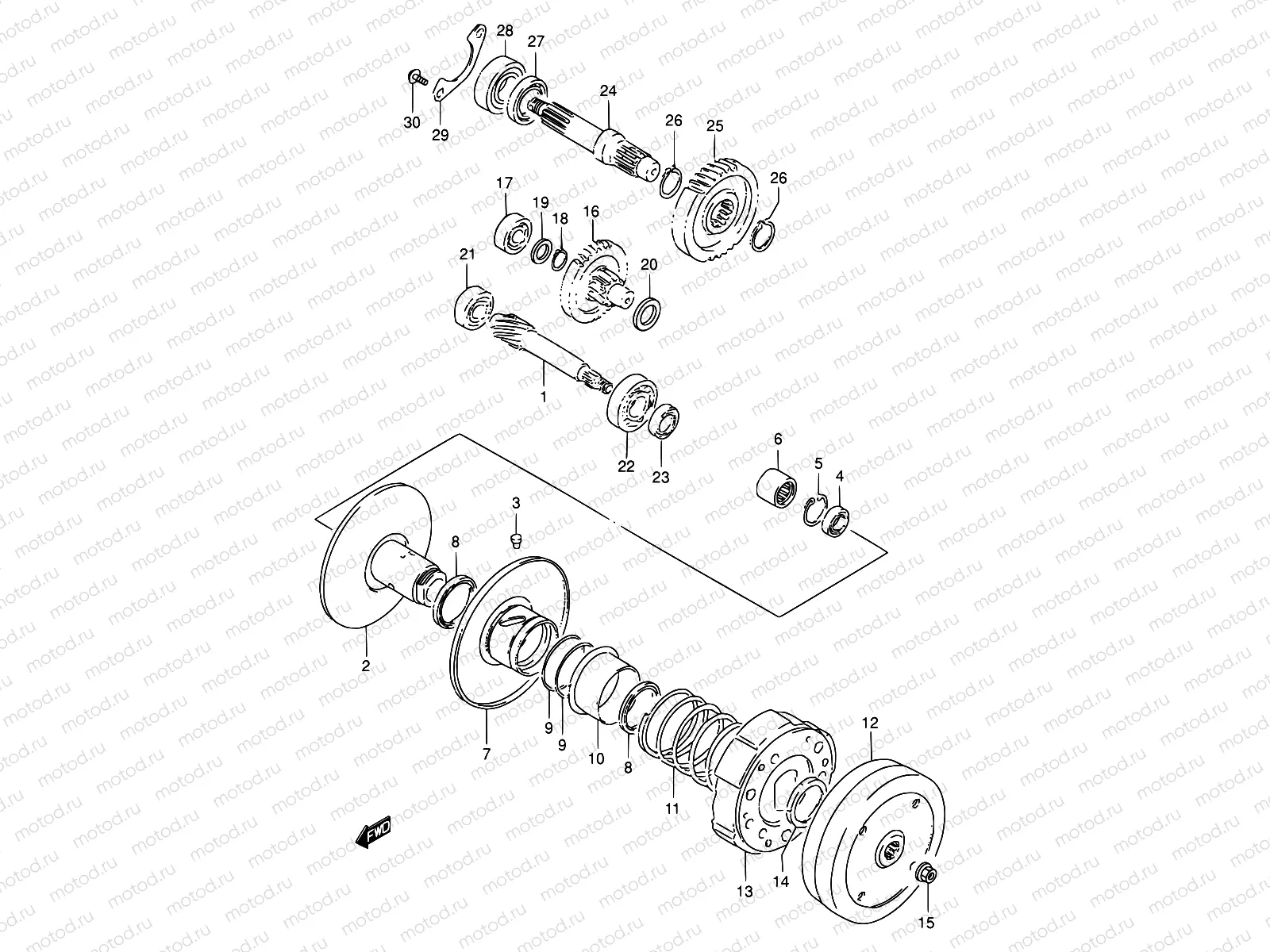

11 - TRANSMISSION (2)(%E.NO.A129-153740)

11 - TRANSMISSION (2)(%E.NO.A129-153740)
Например: 24131-36C02
1
24131-36C02
Вал ведущий
8 289 ₽/шт
2
21210-04C00
FACE,FIXED DRIVEN
5 943 ₽/шт
3
09201-06005
ШТИФТ
1 720 ₽/шт
4
09262-12018
Подшипник
808 ₽/шт
5
08331-41249
CIRCLIP
162 ₽/шт
6
09263-17042
BEARING(17X25X16.7)
1 535 ₽/шт
7
21240-09E01
FACE,MOVABLE DRIVEN
4 497 ₽/шт
8
09283-34007
Сальник
540 ₽/шт
9
09280-41005
Кольцо уплотнительное
1 560 ₽/шт
10
21471-03A11
ВТУЛКА МЕТАЛЛИЧЕСКАЯ
348 ₽/шт
11
09440-52007
Пружина
25 020 ₽/шт
12
21220-04C21
HOUSING,CLUTCH
13 558 ₽/шт
13
21501-29C10
LUTCH ASSY,SHOE
12 199 ₽/шт
14
09140-28004
ШАЙБА
4 650 ₽/шт
15
08316-1010B
Гайка
85 ₽/шт
16
24150-29C25
SHAFT,IDLE
10 870 ₽/шт
17
08113-6201B
earing
1 024 ₽/шт
18
08331-3115A
CIRCLIP
97 ₽/шт
19
09181-12167
Шайба
194 ₽/шт
20
08211-16251
WASHER
1 250 ₽/шт
21
08113-6201B
earing
1 024 ₽/шт
22
08113-63030
Подшипник B1 17X47X14
1 156 ₽/шт
23
09283-17018
SEAL,OIL(17X27X5)
571 ₽/шт
24
24141-36C01
SHAFT,RR AXLE
9 775 ₽/шт
25
24371-29C00
Gear, final driven (nt:41)
26
08331-31229
Зажимы
153 ₽/шт
27
09283-27010
САЛЬНИК
937 ₽/шт
28
08130-62047
BEARING
2 014 ₽/шт
29
24751-07900
RETAINER,DRIVE SHAHFT BEARING
227 ₽/шт
30
02122-0616B
Болт
85 ₽/шт
