Главная Каталог товаров Triumph EPC 2023 Triumph Tiger 1200 GT Explorer Triumph 2023 (VIN: SMTP24V4) Transmission

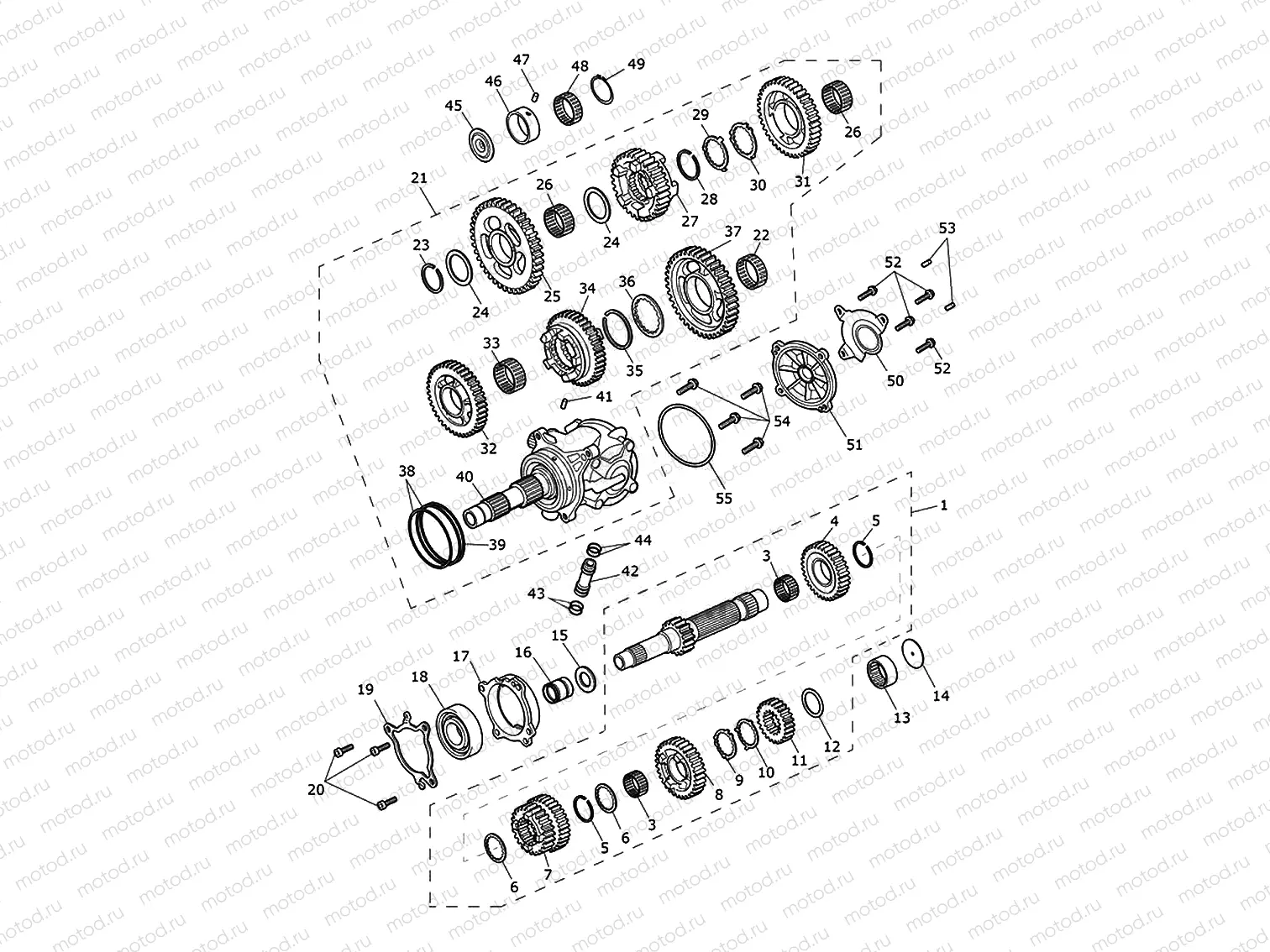

Transmission

Transmission

Например: T1185725

1

T1185725

Input Shaft Assembly

1 шт. в узле

3

T3802630

Bearing, Split

2 шт. в узле

4

T1185705

Gear, Input, 5th, 26T

1 шт. в узле

5

T3503415

Snap Ring

1 шт. в узле

6

T1185560

hrust Washer

2 шт. в узле

7

T1185703

Gear, Input, 3rd/4th, 22T/24T

1 шт. в узле

8

T1185706

Gear, Input, 6th, 31T

1 шт. в узле

9

T1185561

Washer, Splined, Locking, Inner

1 шт. в узле

10

T1185562

Washer, Splined, Locking, Outer

1 шт. в узле

11

T1185602

Gear, Input, 2nd, 22T

1 шт. в узле

12

T1185563

Rondelle

1 шт. в узле

13

T3802839

Needle bearing

1 шт. в узле

14

T1187787

Washer, Restrictor, In, Centre

1 шт. в узле

15

T1176622

Spacer, Clutch, 25 x 43 x 2.7

1 шт. в узле

16

T1176611

Bush, Clutch, 25 x 32 x 37

1 шт. в узле

17

T1187770

Housing, Bearing, Input

1 шт. в узле

18

T3806828

Roulement

1 шт. в узле

19

T1185551

Keeper Plate, Input

1 шт. в узле

20

T3051058

Screw, Cap/HD, M6 x 20, Enc

3 шт. в узле

21

T1185775

Output Assembly, Gearbox

1 шт. в узле

22

T3802529

Bearing, NRB

1 шт. в узле

23

T3502512

Snap Ring

1 шт. в узле

24

T1185577

hrust Washer

2 шт. в узле

25

T1185751

Gear, Output, 1st, 42T

1 шт. в узле

26

T3803034

Bearing, NRB, Split

2 шт. в узле

27

T1185755

Gear, Ouput, 5th, 31T

1 шт. в узле

28

T3503415

Snap Ring

1 шт. в узле

29

T1185576

Washer, Splined, Locking, Inner

1 шт. в узле

30

T1185575

Washer, Splined, Locking, Outer

1 шт. в узле

31

T1185653

Gear, Output, 3rd, 36T

1 шт. в узле

32

T1185654

Gear, Output, 4th, 34T

2 шт. в узле

33

T3803540

Bearing, NRB, Split

1 шт. в узле

34

T1185756

Gear, Output, 6th, 32T

1 шт. в узле

35

T3504015

Snap Ring

1 шт. в узле

36

T1185570

hrust Washer

1 шт. в узле

37

T1185652

Gear, Output, 2nd, 43T

1 шт. в узле

38

T3601279

O Ring, ID 87 x 2

2 шт. в узле

39

T3601285

O Ring, ID 92 x 3

1 шт. в узле

40

T1279000

Bevel Box Assembly, Front

1 шт. в узле

41

T3000005

Dowel, Dia 6.0 x 16

1 шт. в узле

42

T1279052

Spigot, Drain, FBB

1 шт. в узле

43

T3601282

O Ring, ID 16.2 x 3

2 шт. в узле

44

T3601280

O Ring, ID 15.2 x 3

2 шт. в узле

45

T1185531

Washer, Restrictor, Gearbox

1 шт. в узле

46

T1185580

Sleeve, Needle, Bearing

1 шт. в узле

47

T3000032

Dowel, Dia 6 x 10.8

1 шт. в узле

48

T3803037

Needle bearing

1 шт. в узле

49

T3500127

Circlip, Tabbed, 23mm

1 шт. в узле

50

T1279053

Protector, FBB, Cover, Mldg

1 шт. в узле

51

T1279055

Cover, Side, FBB

1 шт. в узле

52

T3205125

Bolt, RHHF, M6 x 25, Blk Enc

4 шт. в узле

53

T3000120

Dowel, 4 x 10

2 шт. в узле

54

T3203319

Bolt, HHF, M8 x 35, Enc, Blk

4 шт. в узле

55

T3601284

O Ring, ID 98 x 2.5

1 шт. в узле
