Главная Каталог товаров Triumph EPC 2023 Triumph Tiger 1200 GT Explorer Triumph 2023 (VIN: SMTP24V4) Side fairings

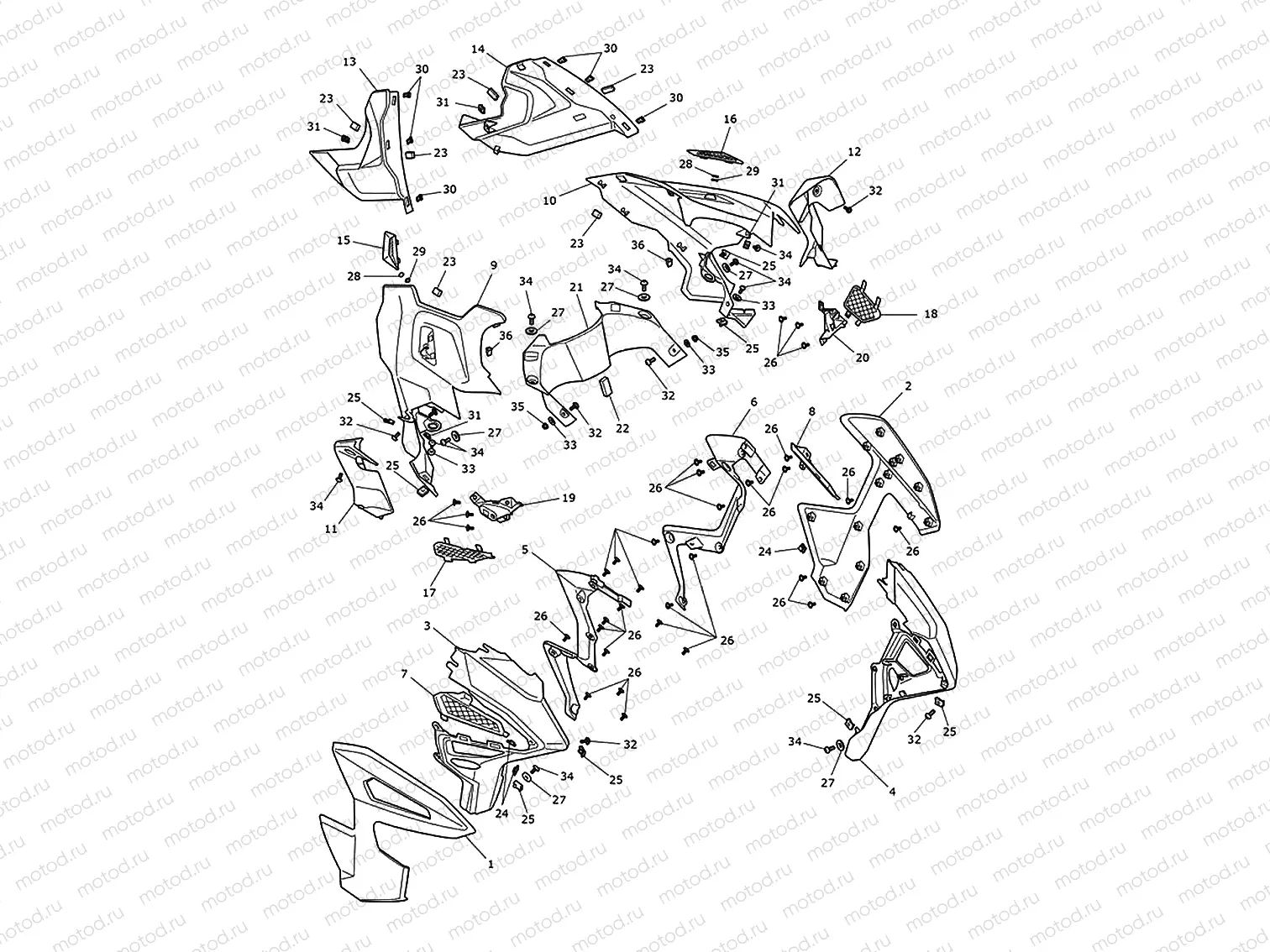

Side fairings

Side fairings

Например: T2313089-PM

1

T2313089-PM

Rad Panel, Pntd, RH, Sapphire Black

1 шт. в узле

1

T2313089-PS

Rad Panel, Pntd, RH, Matt Jet Black

1 шт. в узле

1

T2313089-LS

Rad Panel, Pntd, RH, Matt Graphite

1 шт. в узле

2

T2313090-PS

Rad Panel, Pntd, LH, Matt Jet Black

1 шт. в узле

2

T2313090-PM

Rad Panel, Pntd, LH, Sapphire Black

1 шт. в узле

2

T2313090-LS

Rad Panel, Pntd, LH, Matt Graphite

1 шт. в узле

3

T2313062

Front Rad Panel, Mldg, RH

1 шт. в узле

4

T2313063

Front Rad Panel, Mldg, LH

1 шт. в узле

5

T2313072

Infill, Sidepanel Mldg, RH

1 шт. в узле

6

T2313073

Infill, Sidepanel Mldg, LH

1 шт. в узле

7

T2313096

Vent, Upper, Mldg, RH

1 шт. в узле

8

T2313097

Vent, Upper, Mldg, LH

1 шт. в узле

9

T2313080-NM

ank Panel, Pntd, RH, Expl, Snowdonia Wh

1 шт. в узле

9

T2313080-PM

ank Panel, Pntd, RH, Expl, Sapphire Bla

1 шт. в узле

9

T2313080-JF

ank Panel, Pntd, RH, Expl, Lucerne Blue

1 шт. в узле

10

T2313081-JF

ank Panel, Pntd, LH, Expl, Lucerne Blue

1 шт. в узле

10

T2313081-NM

ank Panel, Pntd, LH, Snowdonia White

1 шт. в узле

10

T2313081-PM

ank Panel, Pntd, LH, Expl, Sapphire Bla

1 шт. в узле

11

T2313075

Deflector, Rad Exit, Mldg, RH

1 шт. в узле

12

T2313076

Deflector, Rad Exit, Mldg, LH

1 шт. в узле

13

T2313056

Rear Tank Panel, Mldg, RH

1 шт. в узле

14

T2313057

Rear Tank Panel, Mldg, LH

1 шт. в узле

15

T2319686

Infill, Tank Panel, Mldg, RH

1 шт. в узле

16

T2319687

Infill, Tank Panel, Mldg, LH

1 шт. в узле

17

T2313092

Vent, Lower, Mldg, RH

1 шт. в узле

18

T2313093

Vent, Lower, Mldg, LH

1 шт. в узле

19

T2313087

Mount, Fog Light, Mldg, RH

1 шт. в узле

20

T2313088

Mount, Fog Light, Mldg, LH

1 шт. в узле

21

T2313064

Front, Tank Panel, Mldg

1 шт. в узле

22

T3660313

Foam Pad

1 шт. в узле

23

T3660171

Rubber Pad, 30x10x15

6 шт. в узле

24

T3455543

Clip, Wire, Self-Adhesive, Black

3 шт. в узле

25

T3350123

Nut, Captive, M5, Non-Secured

8 шт. в узле

26

T3331433

Screw, S/Tap, Pan TX, 4 x 11,

32 шт. в узле

27

T3555011

Washer, 6.5 x 20 x 2

6 шт. в узле

28

T3600109

O Ring, ID 5.6 x 2.3

2 шт. в узле

29

T3550253

Washer, Dia 5 mm, Retaining

2 шт. в узле

30

T2313085

Clip, Bodywork

6 шт. в узле

31

T3350129

Nut, Captive, M5

4 шт. в узле

32

T3330945

Screw, But/Hd, M5 x 16, Blk

6 шт. в узле

33

T3551178

Washer, M5 x 15 x 1.6

4 шт. в узле

34

T3330943

Screw, But/Hd, M5 x 14, Slv

10 шт. в узле

35

T3350010

Locknut, Flgd, M5

2 шт. в узле

36

T3700290

Clip, Panel, Bayonet

2 шт. в узле

37

T2311375

Decal, Rad Panel, RH, Gtex, Graphite

1 шт. в узле

37

T2315757

Decal, Rad Panel, RH, Gtex, Matt Blue

1 шт. в узле

38

T2315753

Decal, Wordmark, Matt Silver

2 шт. в узле

39

T2311377

Decal, Rad Panel, LH, Gtex, Lucerne Blue

1 шт. в узле

39

T2311374

Decal, Rad Panel, LH, Gtex, Graphite

1 шт. в узле

40

T2311385

Decal, Tank Panel, RH, Expl, Graphite

1 шт. в узле

41

T2311389

Decal, Tank panel, Gtex Word, Graphite

1 шт. в узле

42

T2311384

Decal, Tank Panel, LH, Expl, Graphite

1 шт. в узле
