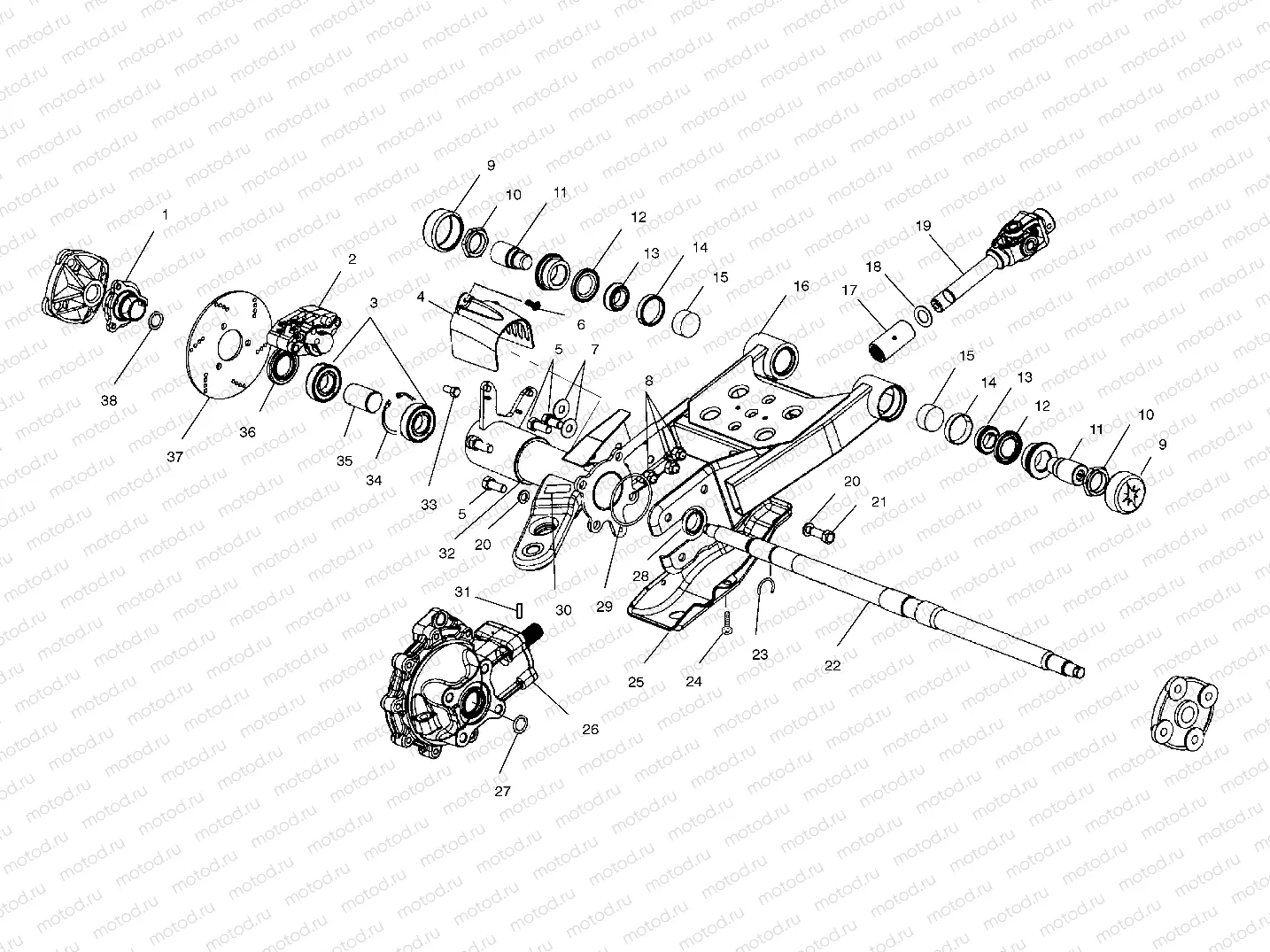

Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 MAGNUM 325 4X4 (A00CD32AA) Polaris 2000 ATV SWING ARM/REAR GEARCASE MOUNTING - A00CD32AA (4949404940C014) | SWING ARM/REAR GEARCASE MOUNTING - A00CD32AA (4949404940C014)

SWING ARM/REAR GEARCASE MOUNTING - A00CD32AA (4949404940C014) | SWING ARM/REAR GEARCASE MOUNTING - A00CD32AA (4949404940C014)

SWING ARM/REAR GEARCASE MOUNTING - A00CD32AA (4949404940C014) | SWING ARM/REAR GEARCASE MOUNTING - A00CD32AA (4949404940C014)

Например: 5132152

1

5132152

HUB,BRAKE DISC,MACH

2

LR--

CALIPER, BRAKE, RH

3

3513523

BEARING BALL DBL.SEAL

4

5411653

SHIELD-BRAKE LINE,REAR

5

7517604

Vis

6

7512084

Vis

7

7555721

Rondelle

8

7542703

NUT FLEXOC

9

5411532

CAP,SWINGARM PIVOT

10

5131863

NUT JAM SWINGARMPIVOT

11

5131864

PIVOT SWINGARM THREADED

12

3610072

SEAL,SWINGARM PIVOT

13

3554506

BRG TAPER.ROLL.CONE

14

3554507

BRG TAPER ROLL CUP

15

5411602

SEAL-SWINGARM PIVOT

16

1541323

SWING ARM

17

7080433

FITTING LUBRICATION THREADED(1

17

5132201

COUPLING-PROP SHAFT GREASED

18

5411092

O-RING

19

1380137

PROPSHAFT ASM REAR

20

7553201

Rondelle (Lock)

21

7517585

BOLT-1/2-13X1 1/4 HXHD GR5-Z

22

5131862

AXLE REAR

23

7710482

RING,RETAINING

24

7517612

Vis

25

5811716

PAD-RUBBER

25

5242851-067

PLATE-SKID,REAR HOUSING,BLK

25

1012881

SKID PLATE,REAR

27

5411531

O-Ring

28

5131930

COLLAR R.AXLE LOCK

29

5411707

O-Ring

30

7072533

"""DECAL HITCH"""

31

7661913

PIN SPRING

32

1012740-067

TUBE,AXLE,LH,BLK

33

7515481

Vis

34

7710471

RING RETAINER INT.

35

5132075

SPACER-BEARING

36

3610071

SEAL REAR AXLE

37

5211849

DISC BRAKE VENTED
