Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 MAGNUM 325 4X4 (A00CD32AA) Polaris 2000 ATV DRIVEN CLUTCH - A00CD32AA (4949404940C002) | DRIVEN CLUTCH - A00CD32AA (4949404940C002)

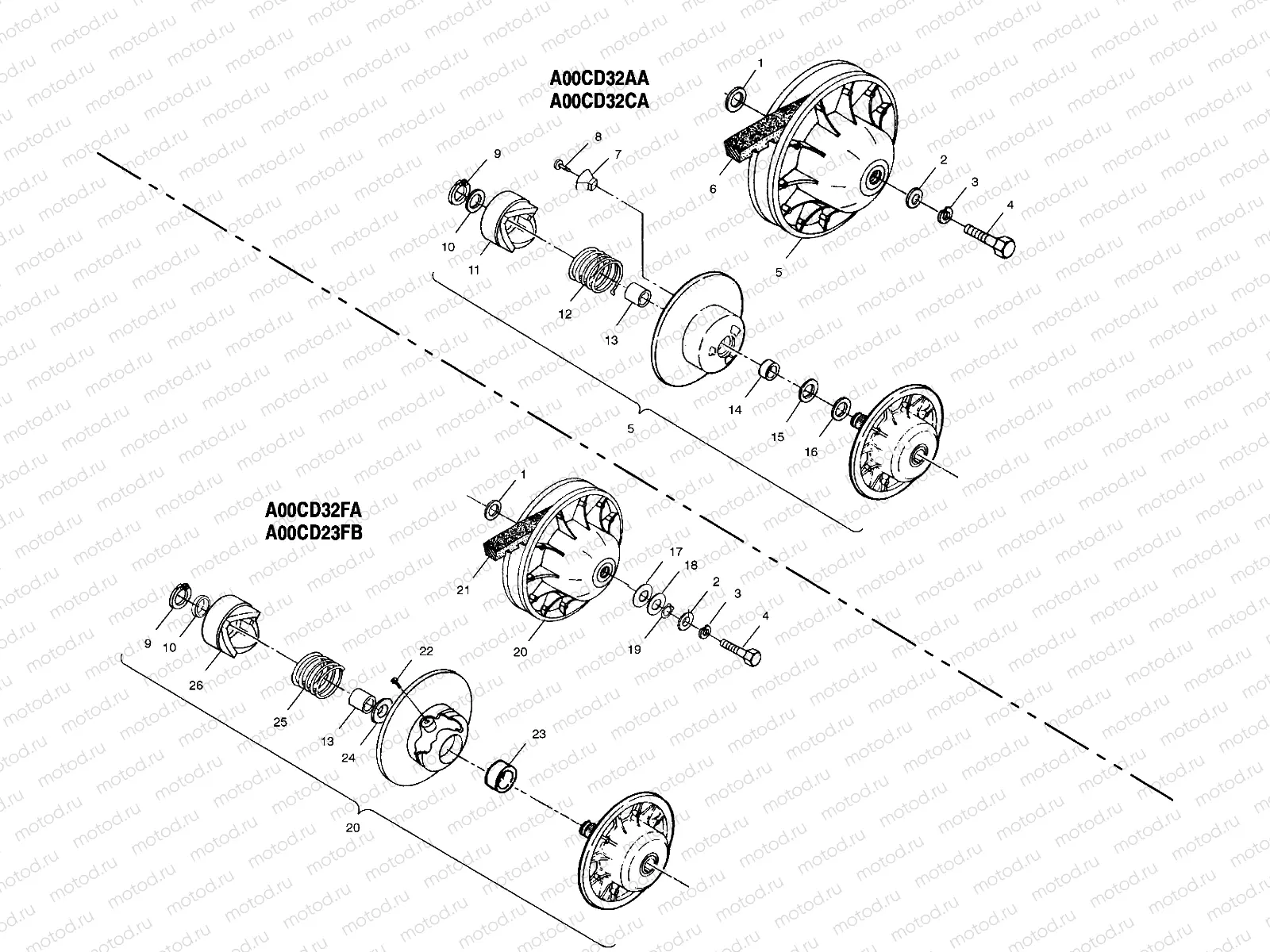

DRIVEN CLUTCH - A00CD32AA (4949404940C002) | DRIVEN CLUTCH - A00CD32AA (4949404940C002)

DRIVEN CLUTCH - A00CD32AA (4949404940C002) | DRIVEN CLUTCH - A00CD32AA (4949404940C002)

Например: 7556120

1

7556120

WASHER-.906 X 1.38 X .060

2

5220646

WASHER DOMED

3

7552901

Rondelle (Lock)

4

7515382

Vis

5

1321874

CLUTCH DRVN ASM

6

3211113

Courroie

7

5450873

BUTTON (3)

8

7511854

Vis

9

7710448

RING RETAINING

10

5210752

SPACER .020

11

5132344

RAMP STA COMP (MACH)

11

5132344

RAMP STA COMP (MACH)

12

7041782

SPRING-CLTCH CHRM SLCN BLK DRI

13

3576511

BUSHING MOVEABLE 1 INCH

14

3576504

BUSHING MOVEABLE 1/2 INCH

15

7556804

WSHR-1.505X2.00X.030-Y

16

7556076

WASHER-1.50X2.00X.025-Y

16

7555898

WASHER-1.5X2.0X.020-Y

17

7556203

WASHER-1.39X2.50X.030 PTFE

18

7556010

BUSHING

19

7710461

RING RETAIN.HD.

20

1322184

CLUTCH DRVN BRKG

21

3211069

BELT DRIVE ENG.BRK.

22

7517323

Vis (spec)

23

3585710

Roulement

24

5211115

Rondelle

25

7041635

SPRING WHT/YELLOW

26

5131674

RAMP STA.BRAKE MACH
