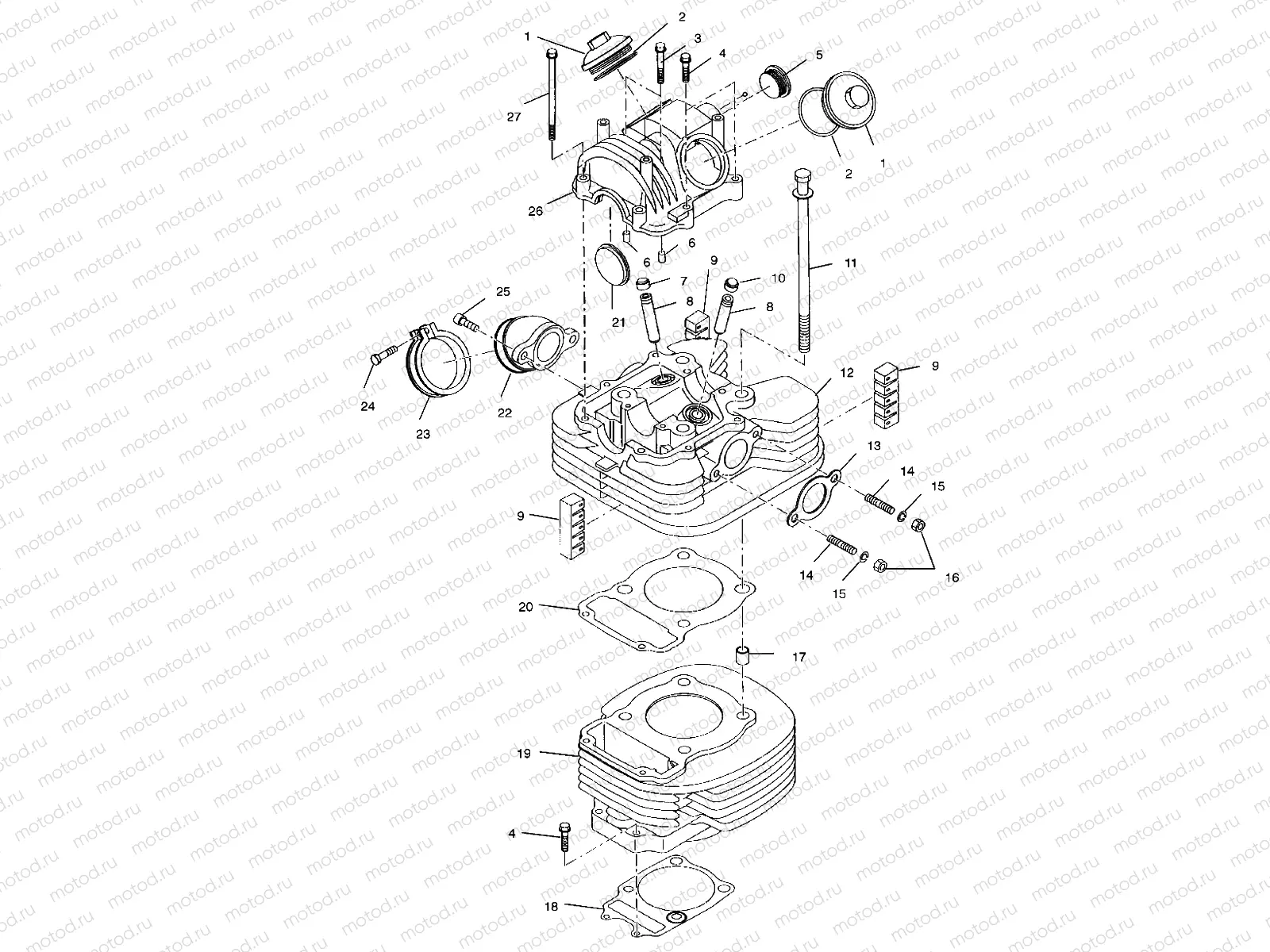

Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 MAGNUM 325 4X4 (A00CD32AA) Polaris 2000 ATV CYLINDER - A00CD32FB (4949404940D004) | CYLINDER - A00CD32FB (4949404940D004)

CYLINDER - A00CD32FB (4949404940D004) | CYLINDER - A00CD32FB (4949404940D004)

CYLINDER - A00CD32FB (4949404940D004) | CYLINDER - A00CD32FB (4949404940D004)

Например: 3087259

1

3087259

COVER-VALVE

2

3086414

O-Ring

3

3087159

Vis

4

3084874

Vis

5

3089272

ASM. PLUG

6

3086410

PIN STRAIGHT

7

3084858

SEAL INTAKE VALVE

8

3084994

GUIDE VALVE

9

3084798

FIN DAMPER A

10

3084859

SEAL EXHAUST VALVE

11

3086418

ASM. BOLT AND WASHER

12

3086796

CYLINDER,SM,HEAD (Incl. 3,4,6-10, 12,14,26)(If built after 3/1/99)

12

3086408

CYLINDER HEAD ASM. Substituted by 3086796 (Incl. 3,4,6-10, 12,14,26)(If built before 3/1/99)

13

3086421

Exhaust gasket

14

3085326

STUD

15

3080530

Rondelle (Lock)

16

3087199

Nut

17

3087266

KNOCK PIPE

18

3086407

Joint d'embase cylindre

19

3086795

CYLINDER-UNIT Substituted by 3086406 (If built after 3/1/99)

19

3086406

CYLINDER UNIT Substituted by 3086883 (If built before 3/1/99)

20

3086415

GASKET-HEAD

21

3086416

GASKET-CAM

22

3087050

ASM. ADAPTER

23

3090180

ASM-BAND ADAPTER

24

3081497

Vis

25

3081330

BOLT SOCKET HEAD

26

3086491

COVER-ROCKER [No Longer Available] (If built before 3/1/99 only)

27

3086419

BOLT,FLANGE
