Главная Каталог товаров Polaris EPC 1993 Polaris ATV Polaris 1993 350L 2X4 (W937539) Polaris 1993 ATV STEERING/A-ARM ASSEMBLY 2X4 350L W937539 (4924032403016A) | STEERING/A-ARM ASSEMBLY 2X4 350L W937539 (4924032403016A)

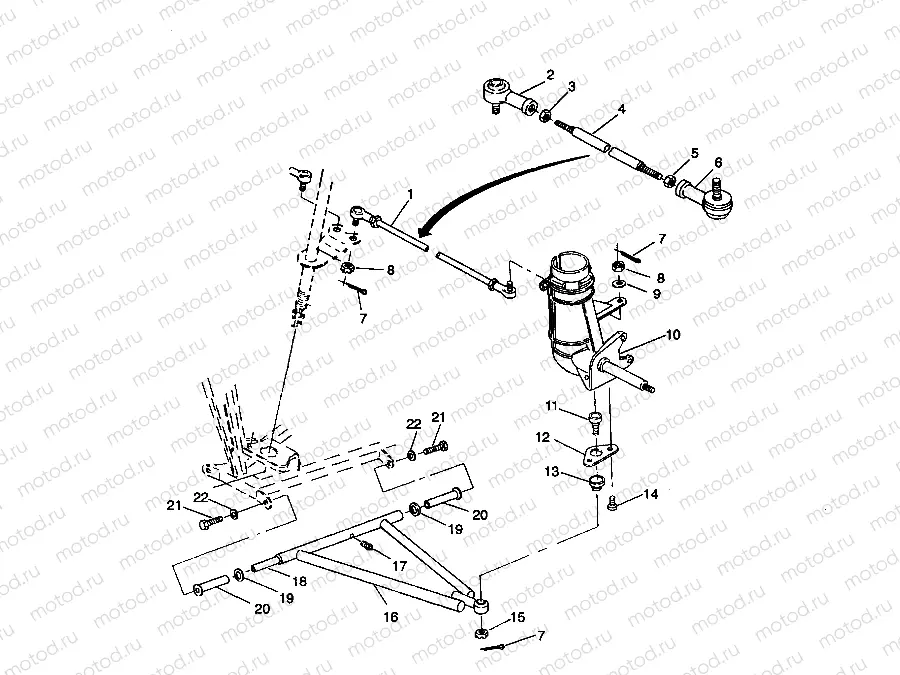

STEERING/A-ARM ASSEMBLY 2X4 350L W937539 (4924032403016A) | STEERING/A-ARM ASSEMBLY 2X4 350L W937539 (4924032403016A)

STEERING/A-ARM ASSEMBLY 2X4 350L W937539 (4924032403016A) | STEERING/A-ARM ASSEMBLY 2X4 350L W937539 (4924032403016A)

Например: 1822070

1

1822070

"""TIE ROD ASM."""

2

7060172

ROD END RH 10 MM.

3

7546901

NUT, RH, 10 MM.(10)

4

5020478

TIE ROD

5

7546902

NUT LH 10 MM.

6

7060147

ROD END

7

7661203

PIN COTTER

8

7546904

NUT CASTLE

9

7555806

WASHER FLAT

10

LR--

CALIPER, BRAKE, RH

11

7061158

BALL-JOINT GREASELESS STRUT

12

5211121

BRKT BALL JOINT

13

5412658

BOOT-BALLJOINT GREASELESS STRT

14

7512284

BOLT SOCKET

15

7542438

NUT CASTLE

16

1580060-067

A-FRAME, LH, BLK. Substituted by 2200479

16

1580061-067

"""A-FRAME RH BLK."""

17

7080433

FITTING LUBRICATION THREADED(1

18

5020680

SHAFT A-ARM (2X4)

19

5020677

BUSHING A-ARM SPACER

20

5436973

BUSHING-A-ARM LONG 102.36MM(10

21

7512492

Vis

22

7552603

Rondelle (Lock)
