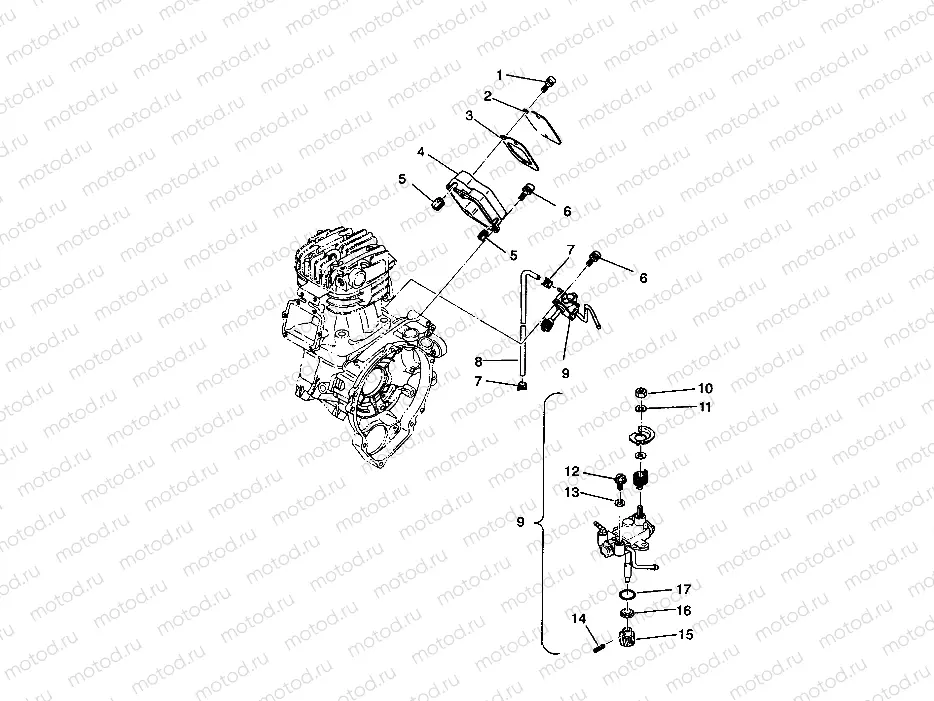

Главная Каталог товаров Polaris EPC 1993 Polaris ATV Polaris 1993 350L 2X4 (W937539) Polaris 1993 ATV OIL PUMP 2X4 350L W937539 (4924032403034A) | OIL PUMP 2X4 350L W937539 (4924032403034A)

OIL PUMP 2X4 350L W937539 (4924032403034A) | OIL PUMP 2X4 350L W937539 (4924032403034A)

OIL PUMP 2X4 350L W937539 (4924032403034A) | OIL PUMP 2X4 350L W937539 (4924032403034A)

Например: 3084205

1

3084205

ASM. SCREW & WASHER

2

3084204

COVER (Oil Pump Case)

3

3084401

GASKET,OIL PUMP

4

3084400

CASE, OIL PUMP (Oil Pump)

5

3086777

Damper

6

3083783

ASM. SCREW & WASHER

7

3083141

CLAMP-HOSE

8

3084199

PIPE, RUBBER Substituted by 3086776

9

3084193

"""PUMP OIL"""

10

3083120

Nut

11

3083121

WASHER-SPRING

12

3083125

SCREW-AIR VENT

13

3084194

Rondelle

14

3084197

PIN SPRING

15

3084196

WHEEL

16

3084195

Entretoise

17

3083127

O-Ring
