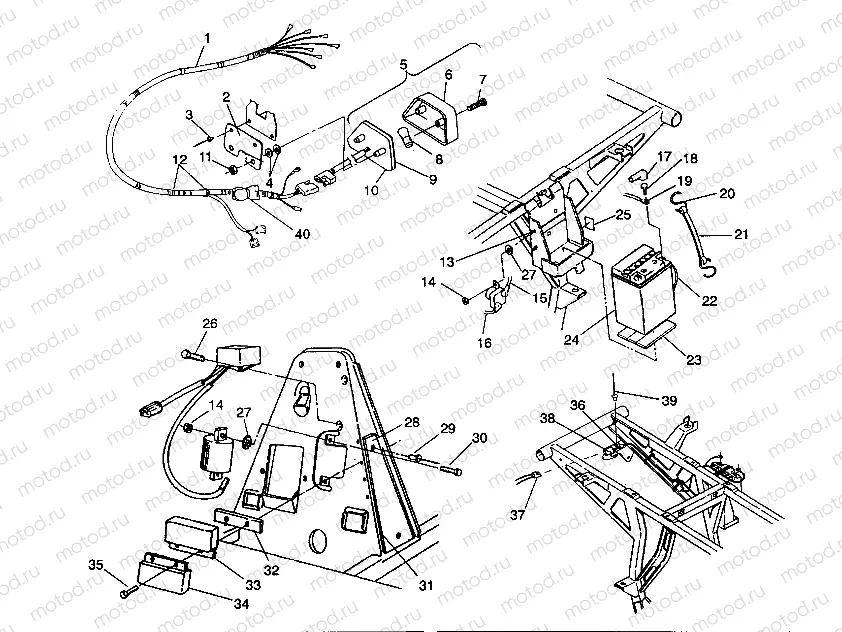

Главная Каталог товаров Polaris EPC 1993 Polaris ATV Polaris 1993 350L 2X4 (W937539) Polaris 1993 ATV ELECTRICAL/TAILLIGHT ASSEMBLY 2X4 350L W937539 (4924032403029A) | ELECTRICAL/TAILLIGHT ASSEMBLY 2X4 350L W937539 (4924032403029A)

ELECTRICAL/TAILLIGHT ASSEMBLY 2X4 350L W937539 (4924032403029A) | ELECTRICAL/TAILLIGHT ASSEMBLY 2X4 350L W937539 (4924032403029A)

ELECTRICAL/TAILLIGHT ASSEMBLY 2X4 350L W937539 (4924032403029A) | ELECTRICAL/TAILLIGHT ASSEMBLY 2X4 350L W937539 (4924032403029A)

Например: 2460453

1

2460453

HARNESS,MAIN WIRE

2

5211391-067

ISOLATOR,TAILLIGHT

3

7621453

RIVET

4

7558301

WASHER FLAT

5

2432034

TAIL LIGHT ASM.

6

4032046

Taillight lens

7

4032029

Vis

8

4030043

BULB

9

4032045

Gasket

10

4032064

BACKING TAILLIGHT

11

7670054

NUT PUSH-ON

12

7080138

CABLE TIE

13

7512027

Vis

14

7541925

NUT NYLOK 10-24 Y

15

4010075

CABLE,SOLENOID-STRTR.

16

4010064

CABLE SOLENOID/STARTER

17

5410346

INSUL.CABLE SOL.

18

2200361

KIT-BATTERY BOLT (SHORT)

19

4010076

CABLE BATTERY-SOLENOID

20

7010032

HOOK-BATTERY STRAP

21

5418182

STRAP-BATTERY HOLD DOWN-C

22

8360009-600

LINE FUEL 1/8 ID 600 CM.

23

5810290

PAD BATTERY

24

4140006

La batterie

25

7072606

DECAL, BATTERY [No Longer Available]

26

7512232

Vis

27

7571602

Rondelle

28

4040022

BOARD,TERMINAL

29

7621322

RIVET, POP(50)

30

7512007

Vis

31

5431152

SHIELD,TERM.BOARD

32

5210650

HEAT SINK

33

4060087

RECTIFIER, VOLTAGE

34

4060085

LIMITER REV.SPEED

35

7512018

Vis

36

7080524

CLAMP BLK 5/16 PLASTIC

37

2460442

PIGTAIL POWER

38

2410022

POWER ASM 12V

39

7621336

RIVET

40

2200419

BREAKER,CIRCUIT,10AMP,ATV
