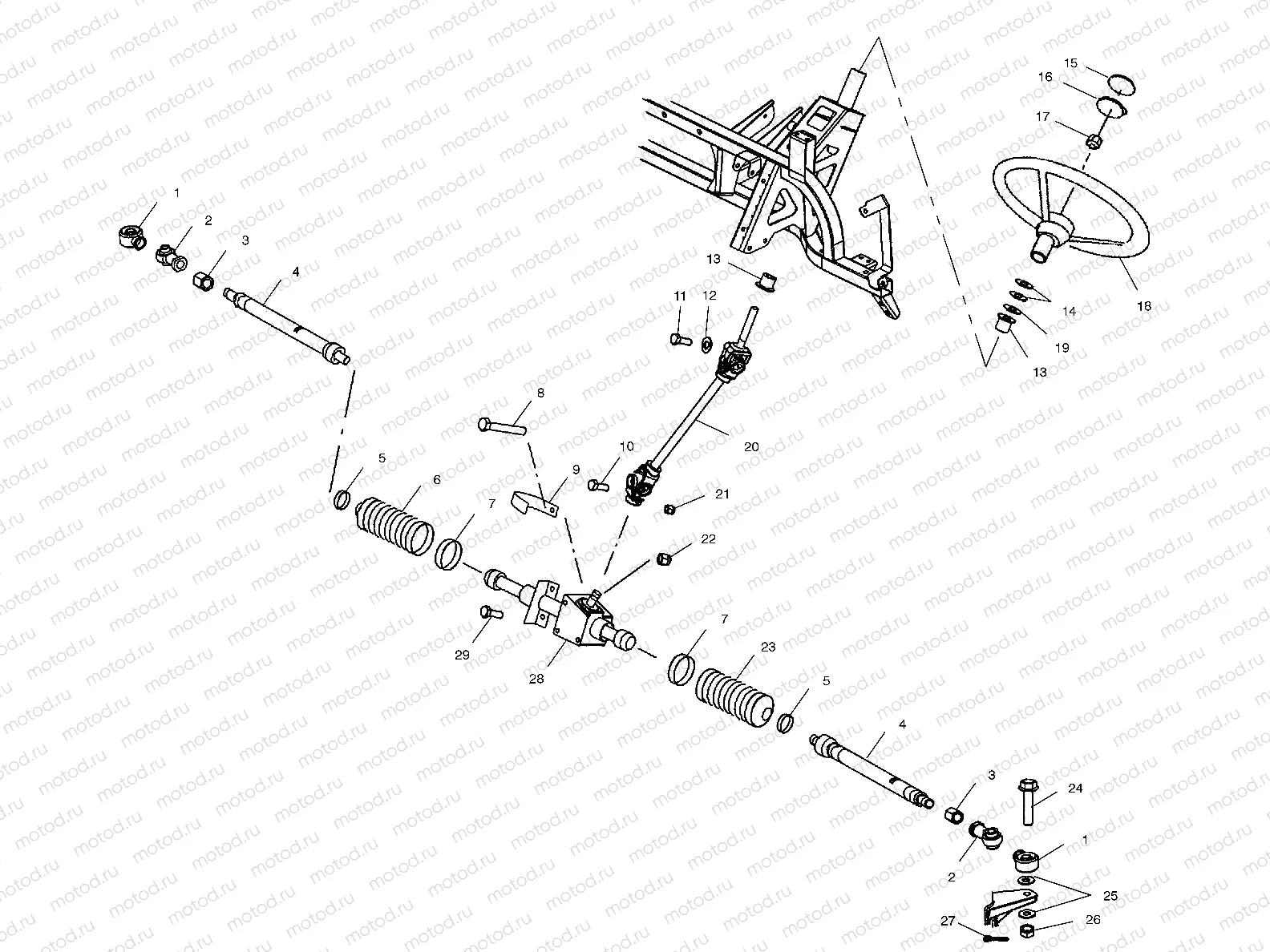

STEERING - A10RB42AA (4970937093B07) | STEERING - A10RB42AA (4970937093B07)

STEERING - A10RB42AA (4970937093B07) | STEERING - A10RB42AA (4970937093B07)

Например: 5412929

1

5412929

BOOT-SEAL ROD END 10MM

2

7061138

ROD-END 10MM 1/2-20LH 42 DEG

3

7547028

NUT JAM LH

4

1820921

ASM-GEARCASE BOX STEERING

5

7080978

CLAMP-BOOT SMALL

6

5412013

BOOT-PASSENGER SIDE RACK

7

7080979

CLAMP-BOOT LARGE

8

7515382

Vis

9

7080884

CLIP J

10

7515434

Vis

11

7517924

BOLT-CAP M8X1.25

12

7552902

Rondelle

13

5434106

BUSHING-STEERING SHAFT

14

7556063

WASHER WAVE

15

7078465

LOGO-POLARIS STAR

16

5434169

Cap

17

7547188

NUT-M16X2-6G

18

1823678

WHEEL-STEERING 15

19

7556301

BUSHING

20

1821019

SHAFT-STEERING LOWER W/JOINTS

20

1820993

STEERING SHAFT ASM.

20

1821018

SHAFT-STEERING UPPER

21

7542439

Nut (SELF-LOCKING)

22

7542324

Nut (SELF-LOCKING)

23

5412012

BOOT-DRIVER SIDE RACK

24

7517909

BOLT-M10X1.25X65 HX WASH HD

25

7556099

WASHER

26

7547177

NUT-M10X1.25-HX-LOCK-Y

27

7661203

PIN COTTER

28

1820921

ASM-GEARCASE BOX STEERING

29

7512371

BOLT 5/16-18X3/4
