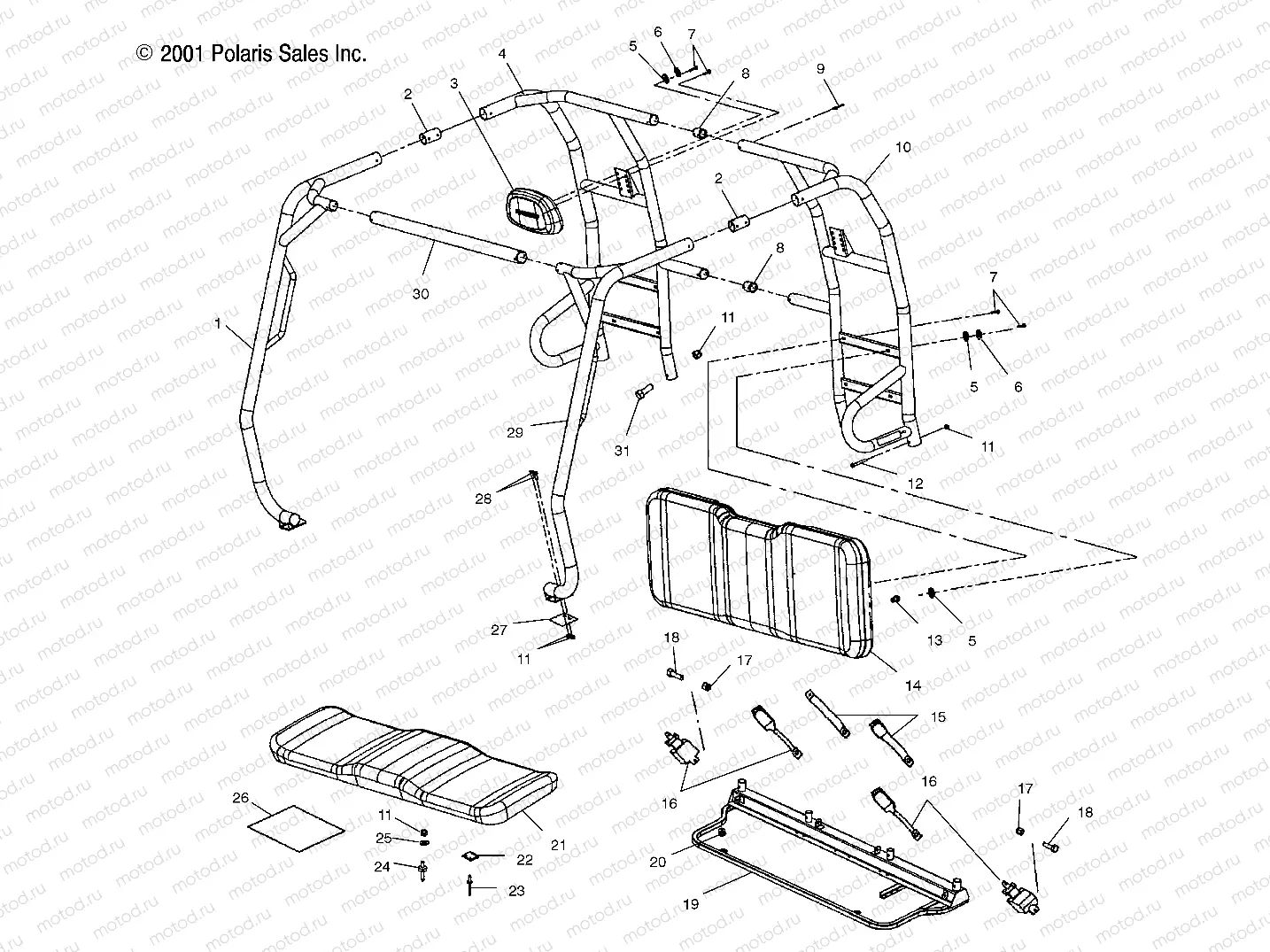

Главная Каталог товаров Polaris EPC SERIES 10 Polaris RANGER Polaris SERIES 10 RANGER (A10RB42AA) Polaris SERIES 10 RANGER CAB FRAME - A10RB42AA (4970937093A03) | CAB FRAME - A10RB42AA (4970937093A03)

CAB FRAME - A10RB42AA (4970937093A03) | CAB FRAME - A10RB42AA (4970937093A03)

CAB FRAME - A10RB42AA (4970937093A03) | CAB FRAME - A10RB42AA (4970937093A03)

Например: 1013333-067

1

1013333-067

CAB FRAME RIGHT FRONT BLK

2

5243093-067

Tube, Coupler, Top, Rear

3

5434879-070

HEADREST-BLACK

4

1013717-067

ASM-CAB FRAME REAR RIGHT BLK

5

7558301

WASHER FLAT

6

7552801

Rondelle (Lock)

7

7512247

Vis

7

7517230

Vis

8

5243092-067

TUBE-COUPLER RR CENTER BLK

9

7661637

RIVET INTERLOCK Z

10

1013716-067

ASM-CAB FRAME REAR LEFT BLK

11

7542324

Nut (SELF-LOCKING)

12

7515339

Vis

13

7670096

NUT

13

7541923

NUT-WELL

14

2683124-317

Asm., Seat, Back (AA)

14

2683124

Seat, Back [If built after 2/18/02]

15

2635053

ASM-SEAT BELT 2PT CENTER

16

2632421

SEAT BELT ASM.

17

7542525

NUT NYLOK

18

7512539

Vis

19

1013336-067

Base, Cab/Seat

20

5412507

Damper

21

2683817-317

ASM-SEAT RNGR BTM GUNMETAL

22

5245676

TAB-MOUNT SEAT

23

7661052

Rivet

24

5910096

PIN-SEAT LATCH

25

7555734

WASHER FLAT

26

5812295

FOIL-SEAT

27

5812313

PAD-CAB FRAME FRONT

28

7515321

Vis

29

1013332-067

CAB FRAME LEFT FRONT BLK

30

7515319

Vis

31

5244844-067

Tube, Cab, Frame, Top, Front (AA)
