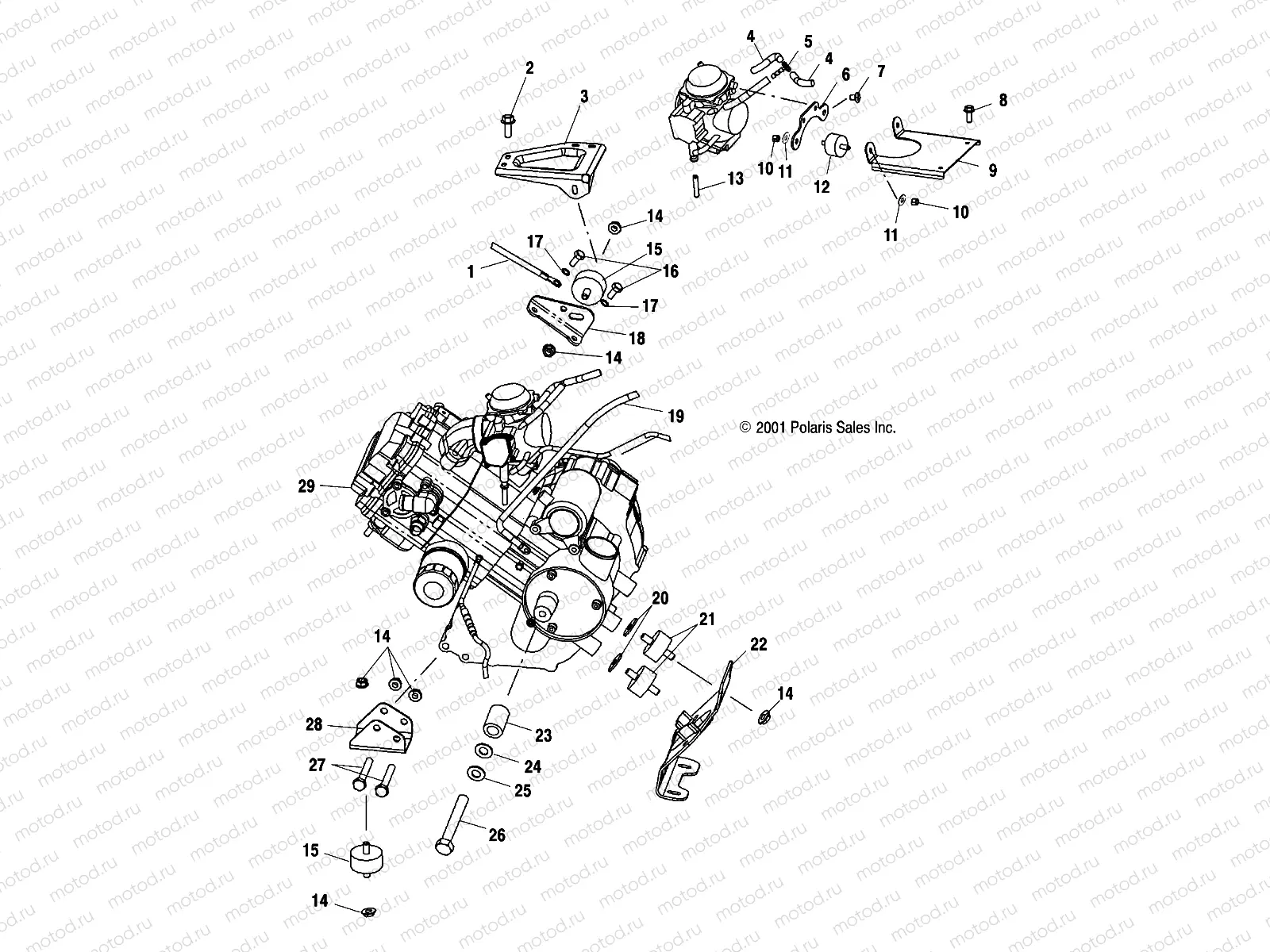

Главная Каталог товаров Polaris EPC SERIES 10 Polaris RANGER Polaris SERIES 10 RANGER (A10RB42AA) Polaris SERIES 10 RANGER ENGINE MOUNTING - A10RB42AA (4970977097A13) | ENGINE MOUNTING - A10RB42AA (4970977097A13)

ENGINE MOUNTING - A10RB42AA (4970977097A13) | ENGINE MOUNTING - A10RB42AA (4970977097A13)

ENGINE MOUNTING - A10RB42AA (4970977097A13) | ENGINE MOUNTING - A10RB42AA (4970977097A13)

Например: 4010605

1

4010605

CABLE-BLACK BATT/FRAME/ENG

2

7515399

Vis

3

5244244-067

Bracket, Motor Mount, Top

4

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

5

7052075

FITTING TEE

6

5245206

BRKT-CARB DAMPNER CARB SIDE

7

3084205

ASM. SCREW & WASHER

8

7517386

Vis

9

5245024-067

Bracket, Dampner

10

7542105

NUT HEX

11

7552605

Rondelle

12

3110032

MOUNT RUBBER

13

8360009-600

LINE FUEL 1/8 ID 600 CM.

14

7547108

Nut

15

3024012

ISOLATOR-3/8-24M/M 60DURO

16

7512315

Vis

17

7552901

Rondelle (Lock)

18

5241453

MOUNT-ENGINE TOP PLTD

19

4010539

CABLE-SOL./STARTER RANGER

20

7555815

WASHER FLAT

21

3022076

ISOLATOR-3/8-24M 3/8-16M 60DUR

22

1013134-067

MOUNT ENGINE REAR BLK

23

5430261

BUSHING

24

5210748

Rondelle

25

7575202

Rondelle (Lock)

26

7512566

Vis

27

7515417

Vis

28

5244245-067

Bracket, Motor Mount, Front

29

3087023

ENGINE-EH42PLE05-SB (EH42PLE05) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f
