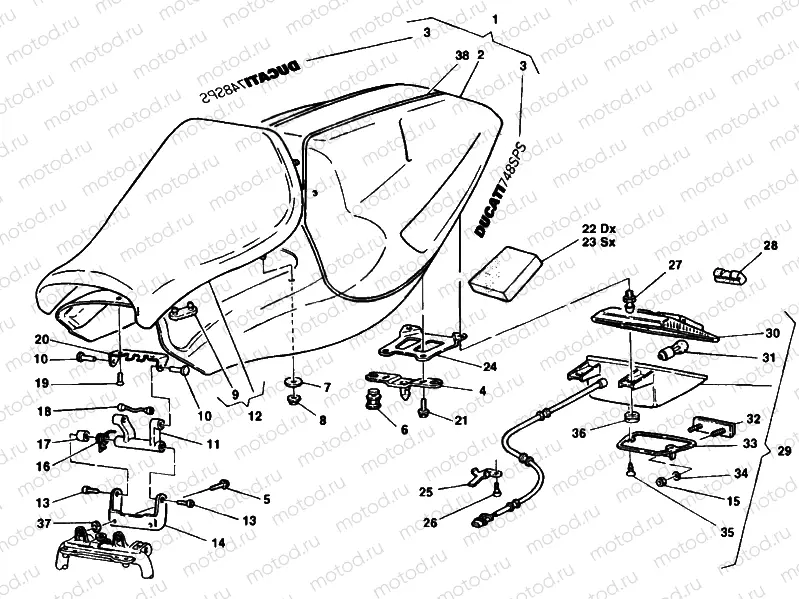

SEAT » TANK/SEAT

SEAT » TANK/SEAT
Например: 48320192F
1
48320192F
YELLOW SEAT ASSY
2
48330192A
REAR FAIRING
3
43810991BA
STICKER DUCATI748SPS
4
82920042A
HOLDER
6
86610201A
5 pc - Damper
7
85250311A
pc - Rondelle
8
74941108B
5 pc - Nut
9
86610191A
.CUSHION, SEAT
10
82110571A
.PIN
11
45510051A
SMALL LINK
12
59510271A
Saddle assy
13
77150388B
pc - Vis (M5x10)
14
82710851A
BRACKET
15
74940301A
Nut
16
79910571A
2 pc - Spring
17
85610431A
Entretoise
18
76410141A
Damper
19
77750343B
10 pc - Vis (M5x12)
20
82710861A
BRACKET, SEAT
21
77250968B
pc - Vis (M6x10)
22
86610231A
RIGHT PAD
23
86610241A
LEFT PAD
24
82711081A
PLATE
25
82711111A
.PLATE
26
M470412
.SCREW
27
83210081A
.PIN
28
86610181A
2 pc - Damper
29
52540053A
Taillight assy.
30
800072911
Taillight lens
31
39040031A
5 pc - Bulb (12V 5/21W)
32
52910231A
.REFLEX REFLECTOR, REAR
33
82912421A
HOLDER
34
85250011C
pc - Rondelle
35
77450081A
pc - Vis
36
D
37
71310991A
Entretoise
38
43710621A
GOLD ADHESIVE
