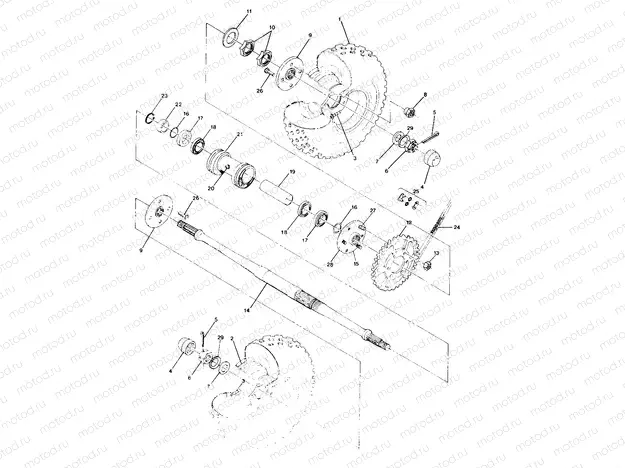

Главная Каталог товаров Polaris EPC 1992 Polaris ATV Polaris 1992 TRAIL BOSS 4X4 (W928127) Polaris 1992 ATV REAR WHEEL DRIVE ASSEMBLY 250 4x4 / W928127 (4922872287B011) | REAR WHEEL DRIVE ASSEMBLY 250 4x4 / W928127 (4922872287B011)

REAR WHEEL DRIVE ASSEMBLY 250 4x4 / W928127 (4922872287B011) | REAR WHEEL DRIVE ASSEMBLY 250 4x4 / W928127 (4922872287B011)

REAR WHEEL DRIVE ASSEMBLY 250 4x4 / W928127 (4922872287B011) | REAR WHEEL DRIVE ASSEMBLY 250 4x4 / W928127 (4922872287B011)

Например: 5410479

1

5410479

TIRE,R(24X11-10)

2

1520114

RIM,REAR, WELD. (Primed)

3

1525017

VALVE RIM

4

5413427

HUB-DUST COVER

5

7661404

PIN COTTER

6

7543005

NUT CASTLE

7

7555745

Rondelle

8

7542714

Nut

9

2200341

KIT MACH.HUB

10

5020468

NUT JAM

11

7555764

WASHER(10)

12

3223009

SPROCKET, 42T Substituted by 3222070

13

7542403

NUT LOCK

14

5020504

AXLE, REAR

16

5410415

O RING 1 5/16

17

3610013

SEAL REAR AXLE

18

3515501

BEARING BALL

19

5010204

TUBE BEARING SPACER

20

7080306

FITTING LUBE.W/BALL CK.

21

5130663

HOUSING, AXLE

22

5010206

SPACER BEARING

23

7710405

RING SNAP

24

3221193-088

CHAIN-520 ORD4 O-RING 88 PTCH

25

3225024

CONNECTOR LINK

26

7512673

Vis

27

7515513

STUD 3/8-24X1.12 PRS FIT-Z (10

28

1520170

SPROCKET HUB ASM.

29

7555796

WASHER CONE
