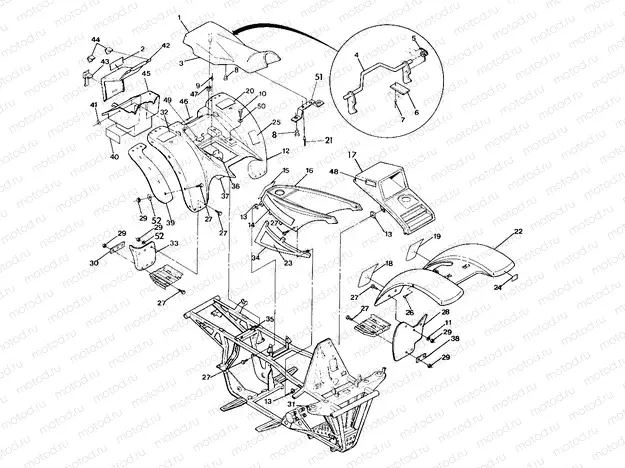

Главная Каталог товаров Polaris EPC 1992 Polaris ATV Polaris 1992 TRAIL BOSS 4X4 (W928127) Polaris 1992 ATV BODY ASSEMBLY 250 4x4 / W928127 (4922872287A005) | BODY ASSEMBLY 250 4x4 / W928127 (4922872287A005)

BODY ASSEMBLY 250 4x4 / W928127 (4922872287A005) | BODY ASSEMBLY 250 4x4 / W928127 (4922872287A005)

BODY ASSEMBLY 250 4x4 / W928127 (4922872287A005) | BODY ASSEMBLY 250 4x4 / W928127 (4922872287A005)

Например: 2682492-070

1

2682492-070

SEAT GEN II BLK ASM.

2

7072805

DECAL(CPSC),PASS.WRN. [No Longer Available]

3

2681723-070

COVER SEAT BLACK

4

1011558

LATCH,SEAT

5

7041158

SPRING LATCH

6

5211033

BRACKET LEVER RETAINER

7

7621403

BLIND RIVET

8

5410414

BUMPER RUBBER

9

7621432

RIVET 3/16X.402

10

7512232

Vis

11

7558301

WASHER FLAT

12

5430991-164

CAB,REAR,COOLBLUE (Fender)

13

7670060

NUT SPEED

14

7073450

DECAL, '4X4'

15

7072933

DECAL(CPSC),AGE WARN. Substituted by 7074827

16

5431197-157

COVER,FUELTANK,BON.BLUE

17

5430973-164

COVER,OIL-H/L(COOLBLUE)

18

7073147

DECAL(CPSC),WARNING DISC

19

7079083

DECAL-WARN,GENERAL,CPSC (AL)

20

7072786

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

21

7621481

RIVET

22

5430990-164

"""CAB FR. COOLBLUE"""

23

7072884

DECAL, SIDE PANEL [No Longer Available]

24

7073024

LABEL, 'U.S.A.'

25

7072810

DECAL(CPSC),TIRE PRESS(4X4) [No Longer Available]

26

7670052

CLIP, PUSH-ON(10)

27

7512282

BOLT BLACK

28

5850086

MUDFLAP,LH FRONT

28

5850087

MUDFLAP RH FRONT

29

7542122

NUT-NYLOK

30

5211131-067

BRKT LH MUD FLAP

31

5410012

PLUG RUBBER-HOLE .5DIA

32

7072788

DECAL(CPSC),WARN,R.RACK [No Longer Available]

33

5850077

MUDFLAP,RH,LOW REAR

33

5850076

MUDFLAP LH LOW REAR

34

5430971-157

COVER,RH,BON.BLUE,SIDEPAN Substituted by 5433579-157

34

5430970-157

COVER,LH,BON.BLUE,SIDEPAN Substituted by 5433382-157

35

7072791

DECAL,FILTER ELEMENT [No Longer Available]

36

5220880

BRKT REAR HOLDDOWN

37

5810416

TAPE FOIL R.CAB

38

5211020-067

BRKT RH MUD FLAP

39

5850060

FLAP MUD LH REAR

39

5850061

FLAP MUD RH REAR

40

5810310

TAPE, FOIL

41

7558212

WASHER 13/64X1/2X18GA FL-Y (10

42

5430769-1029

LID,TOOLBOX(92-4X4,250)

43

5410425

STRAP TOOL COMPARTMENT

44

7670050

CLIP LID HINGE

45

5430882

BOX,TOOL COMP.

46

7621462

RIVET

47

5410413

Damper

48

7073442

DECAL,'250',ORANGE [No Longer Available]

49

7080385

RETAINER,TOOL POUCH

50

7558302

WASHER WROUGHT

51

5222837-067

BRKT SUPPORT SEAT BASE

52

7555859

WASHER FLAT
