Главная Каталог товаров HUSQVARNA EPC 2004 HUSQVARNA TE-TC-SMR 250-400-450 HUSQVARNA 2004 (VIN: ZCGH802B) REAR WHEEL

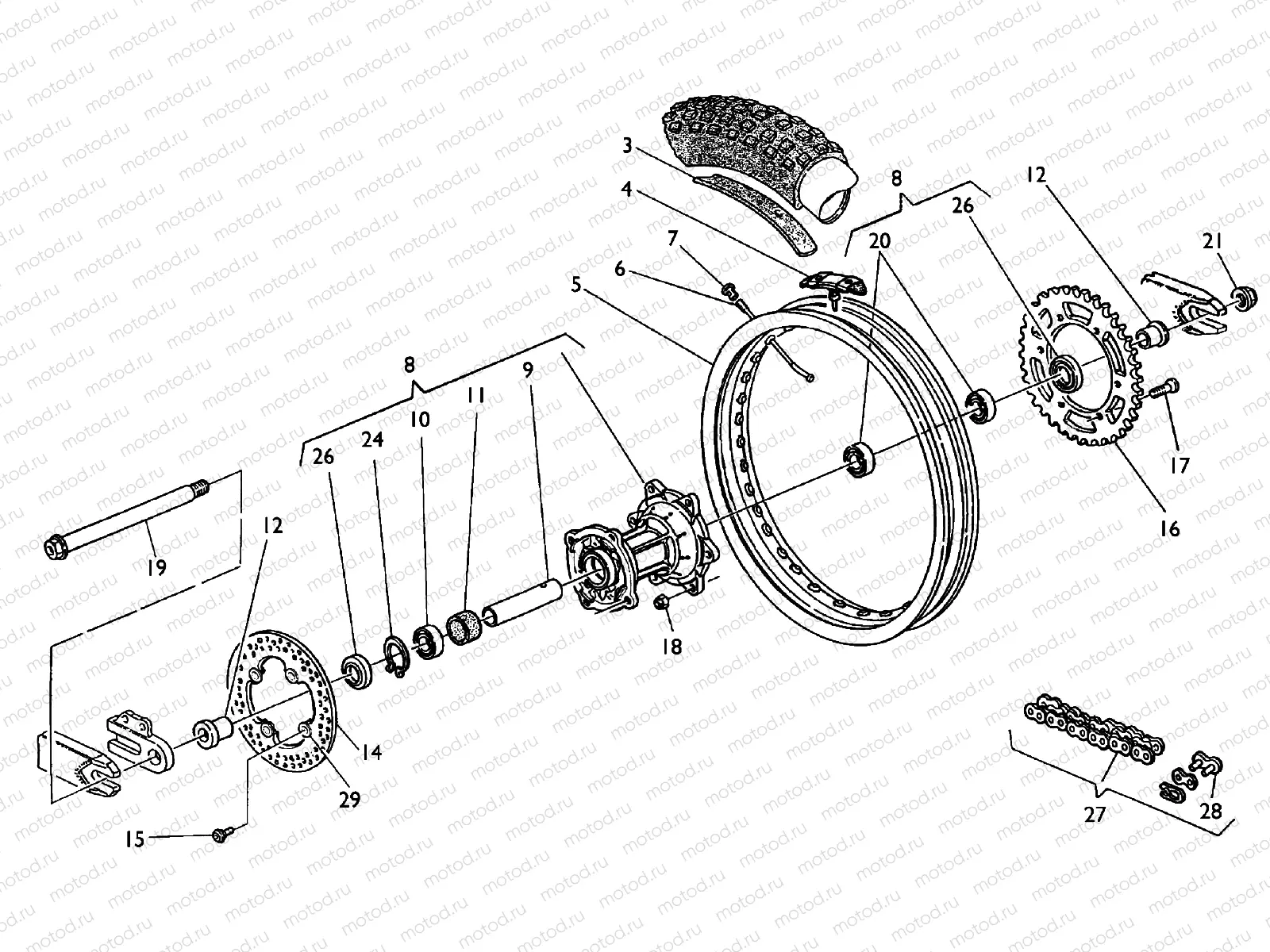

REAR WHEEL

REAR WHEEL

Например: 800001688

3

800001688

PROTECTOR, INNER TUBE

3

800010777

BAND, RIM

3

8B0082879

GASKET, GUARD INNER TUBE

4

70010090000

RIM LOCK 1,85''

4

800054073

Bracket

5

8A0058930

RIM, REAR WHEEL 2.15X18'

5

8A0055860

RIM, REAR WHEEL 2.15X18

5

8A0058929

RIM, REAR WHEEL 2.15X19'

5

800094713

RIM, REAR WHEEL 4.25X17'

6

800094757

REAR WHEEL SPOKE, DISC SIDE

6

8A00A0085

SPOKE, REAR WHEEL 206 MM

6

8000A0085

SPOKE, REAR WHEEL 194.5 MM

7

8000A0086

NIPPLE, SPOKE

7

69N429005

IPPLE, SPOKE

8

8A0096937

HUB, REAR WHEEL

8

8A0097593

HUB, REAR WHEEL

8

8C0096937

HUB, REAR WHEEL

9

800092414

SPACER, HUB BEARING

9

8A0086938

SPACER, HUB BEARING

10

8B0026846

EARING, RADIAL BALL 25X47X16

11

800092797

Entretoise

12

800096938

Entretoise (Outer)

12

8A0096938

SPACER, BRAKE SIDE

14

8000A0692

Brake disc (ø220 mm), REPLACED BY 800088887 & 800055878

14

800088887

Disque de frein

15

800055878

Vis (M6x1,00x11)

15

Z00062726

Vis

16

8B0096837

REAR SPROCKET 48T

16

8D0096837

REAR SPROCKET 50T (Z=50)

16

8G0096837

SPROCKET-HUB,45T

16

800096837

SPROCKET-HUB,46T

16

8A0096837

REAR SPROCKET 47T

16

8000H6386

SPROCKET

17

8000H0158

SCREW - L28

18

Y00043928

Nut (Lock)

19

800096940

AXLE, REAR WHEEL

20

8A0026846

BEARING, RADIAL BALL 6005-2NGK

21

800093072

Nut (M20x1,5)

24

66N021272

Seegerring

26

800089572

STOP RING 32X47X7 MM

27

800056768

CHAIN REGINA 135RX-114

27

8B0079785

CHAIN DID 520DS 5/8X6.5-114

27

8C0056768

HAIN 5/8'X6.5-116

27

800065442

CHAIN REGINA 135ORNX112

27

8F0079785

CHAIN 5/8'X6.5-116

27

8E0079783

CHAIN DID 5/8X6.5-112

27

8B0065442

CHAIN REGINA 135ORN X 114

28

800056767

CHAIN LINK REGINA 135RX

28

800079789

CHAIN LINK DID 520V6

28

8000A6262

CHAIN LINK REGINA

28

800079790

CHAIN LINK DID 520DS

29

8000A0693

BUSH
