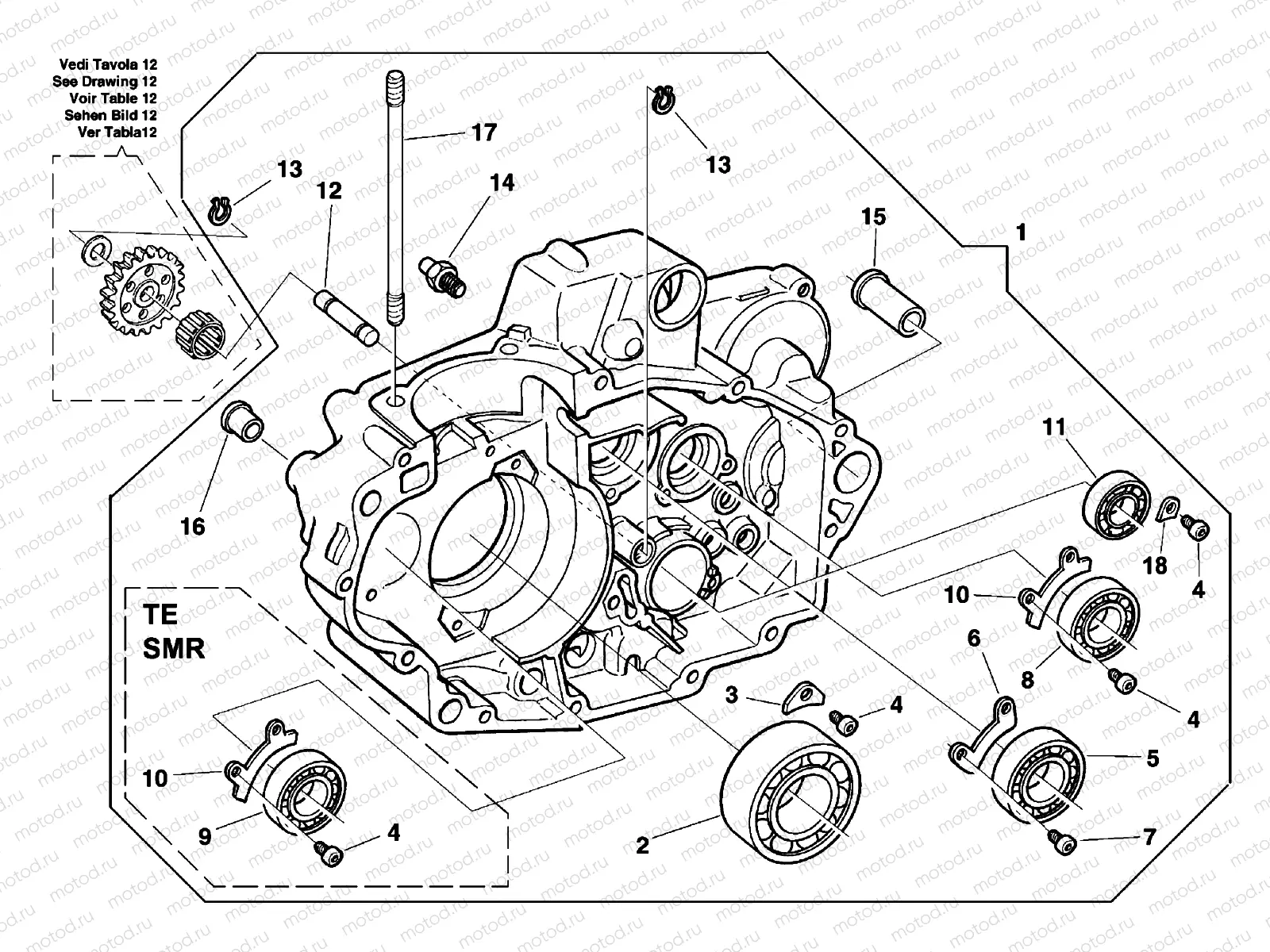

CRANKCASE CARTER R.H.

CRANKCASE CARTER R.H.
1
8000A2959
CRANKCASE SET
1
800099843
CRANKCASE SET
1
8000A2876
CRANKCASE SET
2
8000A2767
Roulement (30x62x16 mm)
2
800099846
Roulement (30x72x19 mm)
3
800097941
RETAINER, BEARING
4
YA0055241
Vis
5
800024952
Roulement
6
8A0042100
PLATE
7
8B0055241
Vis
8
0625204212
Roulement (6004 C3)
9
8A0019768
Roulement
10
800091602
RETAINER, BEARING
11
800085395
Roulement (25x42x9)
12
800099848
Pin
13
66N021312
SPRING RING18.5X9X1.1
14
8B0066953
PIN
15
800073500
BUSH FOR SWING ARM AXIS
16
161077703
BUSH WITH COLLAR
17
8C0081650
Stud bolt
17
8B0081650
Stud bolt
18
800051746
PLATE

Узлы для TE-TC-SMR 250-400-450 HUSQVARNA 2004 (VIN: ZCGH802B)
