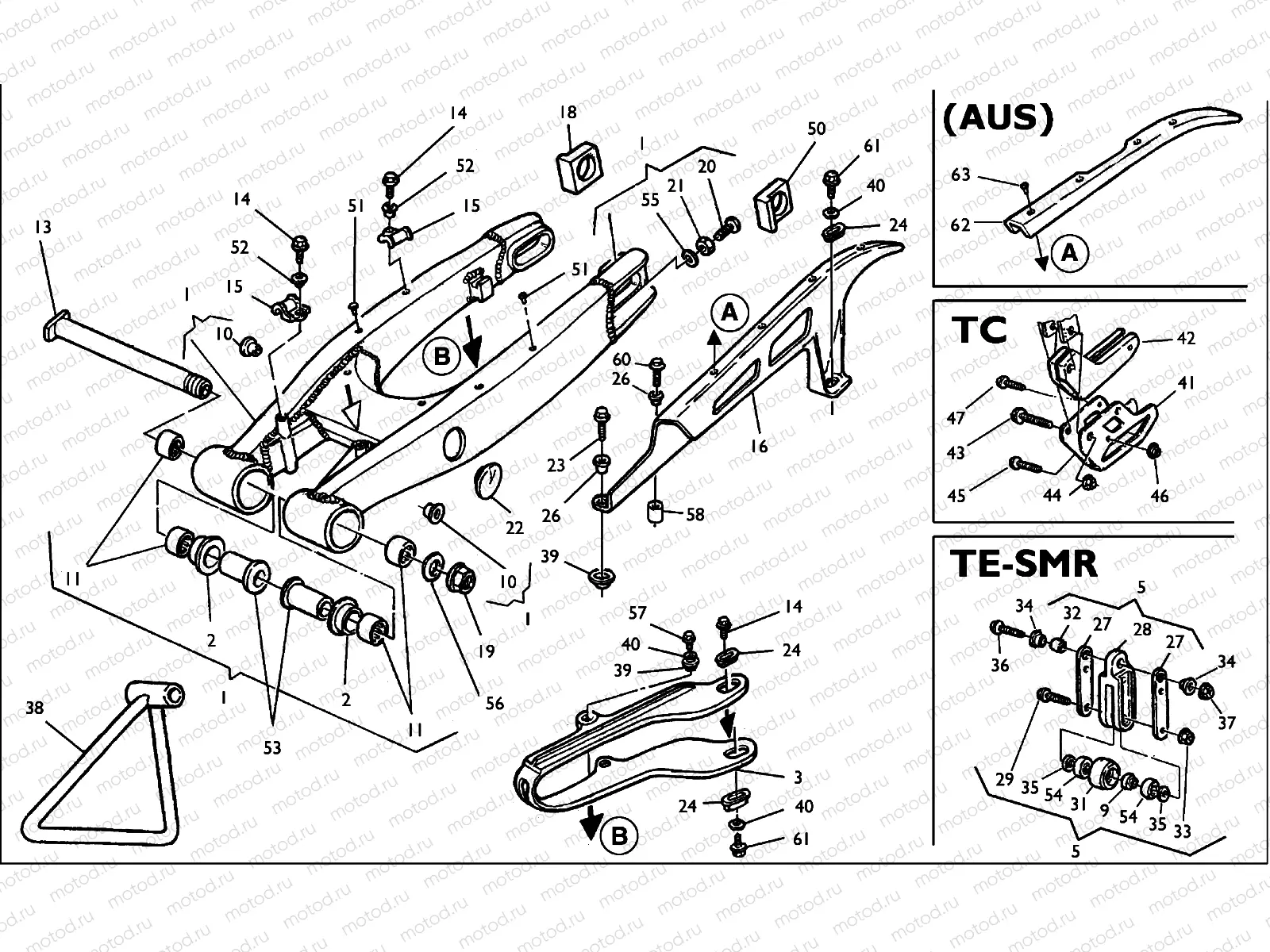

REAR SWING ARM

REAR SWING ARM
Например: 800099616
1
800099616
REAR SWING ARM
1
8000A2817
REAR SWING ARM
2
800071622
BUSH
3
8000H1320
Guard chain sliding shoe
5
800072873
Guard chain sliding shoe
9
8000H3012
Entretoise
10
8A0087810
BUSH, LEFT 13MM
10
800087810
BUSH, RIGHT 16MM
11
800076283
NEEDLE BEARING 22X28X11
13
800071620
AXE REAR SWING ARM
14
Z00067997
Vis
14
Z00020536
Vis
15
80A073456
GUIDE, CABLE
16
8AA073909
Guard chain sliding shoe
18
800096944
ADJUSTER, CHAIN RH
19
Z00071623
NUT FLANGE
20
8C0061121
Vis (M8x1,25)
21
Z00017810
Nut
22
80A074388
PLUG
23
ZA0067997
Vis
24
8000H3033
CUP
26
8A0069282
Entretoise (14x7x5.25)
27
800072875
PLATE
28
800072874
CHAIN GUIDE
29
Z00062731
Vis
31
800065411
ROLLER, CHAIN GUIDE
32
151550601
BUSH
33
Z00044240
Nut (Lock)
34
8A00H3019
Entretoise (D20-D12-D8,5)
35
8000H3017
Entretoise (14x8x6,25x4)
36
Z00062795
Vis
37
Y00043928
Nut (Lock)
38
800074016
REAR STAND
39
8000H3034
CUP
40
Z00036137
Rondelle (D11-D5,5-SP1,5)
41
800072869
PLATE,GUIDE CHAIN
42
8000H7668
CHAIN GUIDE ASSEMBLY
43
Z00062795
Vis
44
Y00043928
Nut (Lock)
45
Z00062731
Vis
46
Z00044240
Nut (Lock)
47
Z00062725
Vis
50
800096941
ADJUSTER, CHAIN LH
51
800075160
RIVET
52
800069282
Bushing
53
800071621
COLLAR, SWINGARM 49.5 MM
54
800063312
Bearing(ø8xØ22x7mm)
55
Z00008536
Rondelle
56
800032388
WASHER 26X17.2X1.5
57
Z00067997
Vis
58
800097025
SPINDLE, TAPER
60
60ND01059
Vis
61
Z00020536
Vis
62
8000A2352
EXTENSION, CHAIN GUIDE
63
800081628
Vis
