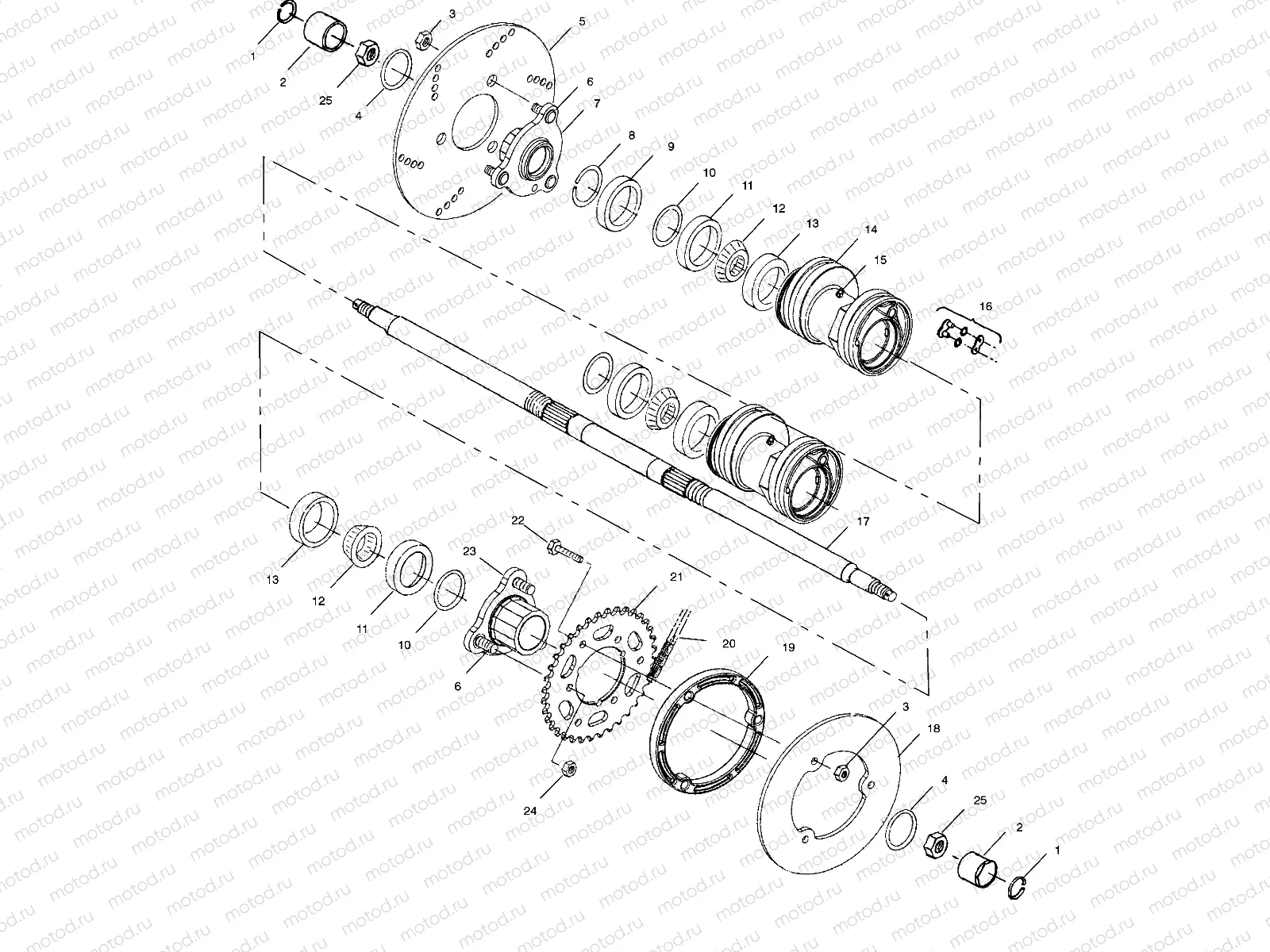

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 XPLORER 400 (A01CG38CA) Polaris 2001 ATV REAR HOUSING - A01CG38CA (4963916391B014) | REAR HOUSING - A01CG38CA (4963916391B014)

REAR HOUSING - A01CG38CA (4963916391B014) | REAR HOUSING - A01CG38CA (4963916391B014)

REAR HOUSING - A01CG38CA (4963916391B014) | REAR HOUSING - A01CG38CA (4963916391B014)

Например: 7710472

1

7710472

RING RETAINING

2

5510313

EXTRUSION RETAINER NUT

3

7542439

Nut (SELF-LOCKING)

4

5411555

SEAL FOAM

5

5243679

DISC,BRK,8.0 OD,.188

6

7515513

STUD 3/8-24X1.12 PRS FIT-Z (10

7

1520259

HUB ASM BRK.DISC LOCKING

8

7710405

RING SNAP

8

7710405

RING SNAP

9

5010462

SPACER AXLE

10

5410889

O RING

11

3610070

SEAL LIP

12

3554518

BEARING CONE TAPERED

13

3554517

BEARING CUP TAPERED

14

5132098

HOUSING-AXLE REAR(MACH)

15

7080306

FITTING LUBE.W/BALL CK.

16

3221192

LINK-CONNECTOR PRESS 520 ORD4

17

5133181

AXLE-REAR CDS

18

5211585-067

GUARD 38T SPKT BLK.ALUM.

19

5630586

SPACER-SPROCKET GUARD

20

3221193-076

CHAIN-520 ORD4 O-RING 76 PITCH

21

3222109

SPKT 36T R.AXLE

22

7512404

Vis

23

1520258

HUB ASM SPKT LOCKING

24

7547108

Nut

25

7547031

NUT JAM
