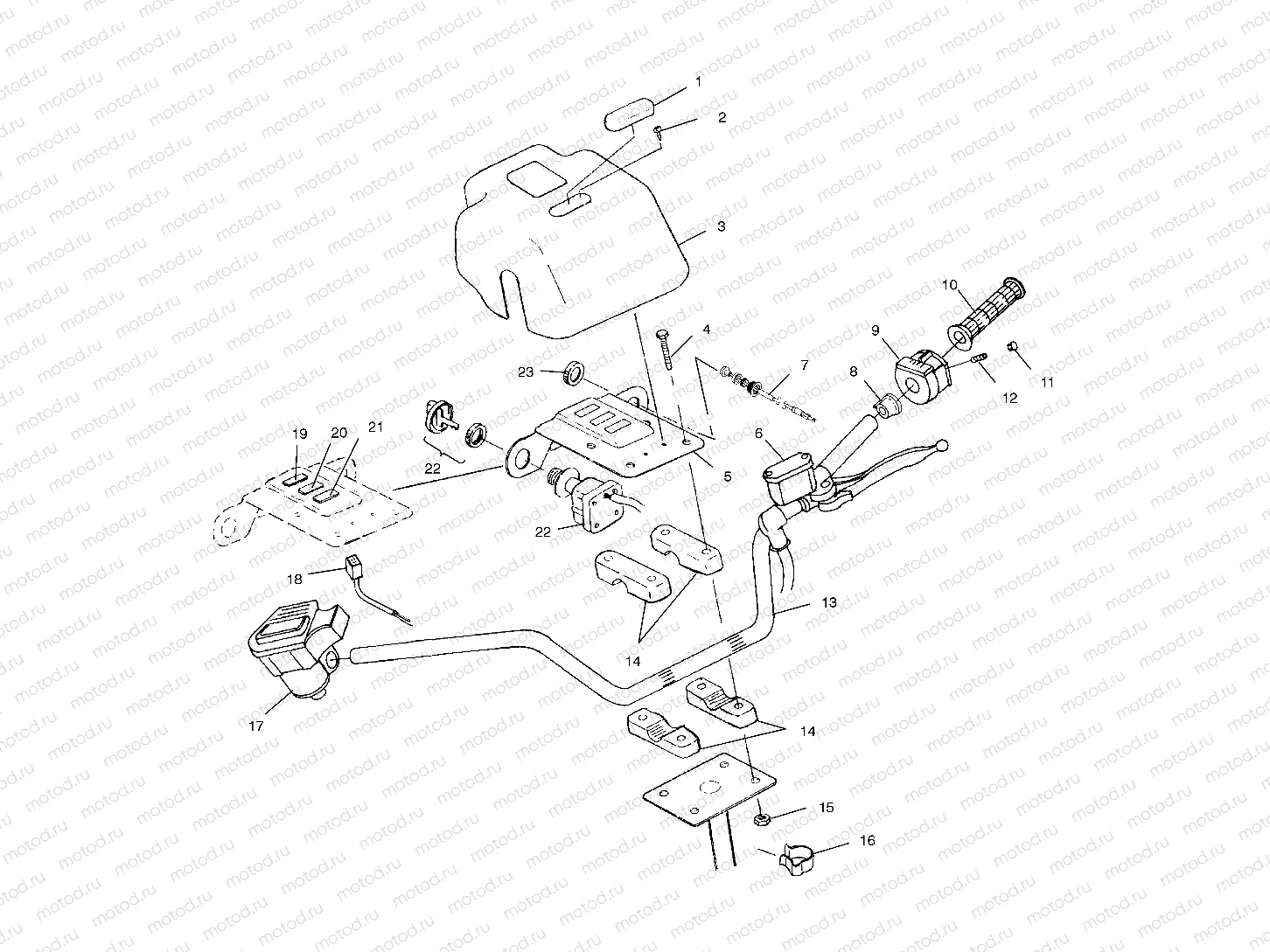

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 XPLORER 400 (A01CG38CA) Polaris 2001 ATV HANDLEBAR - A01CG38CA (4963916391B010) | HANDLEBAR - A01CG38CA (4963916391B010)

HANDLEBAR - A01CG38CA (4963916391B010) | HANDLEBAR - A01CG38CA (4963916391B010)

HANDLEBAR - A01CG38CA (4963916391B010) | HANDLEBAR - A01CG38CA (4963916391B010)

Например: 5432247-070

1

5432247-070

COVER-LOGO BLK

2

7512024

Vis

3

5432246-070

PANEL,INST.,BLK

4

7517216

Vis

5

5241397-067

BRKT,INST.PANEL,BLK

6

LR--

CALIPER, BRAKE, RH

7

7081008

CABLE-CHOKE FRICTION 40

8

5433903

SPACER-SWITCH LH 99

9

4010262

SWITCH-HANDLEBAR H/L/O REV/OR

10

5433834-070

GRIP-HNDLBAR 7/8 ID BLACK

11

5432952

PLUG HOLE

12

7517625

SCREW SET

13

5224715-067

HANDLEBAR TUBE BLK

14

5630629

BLOCK,H'BAR,(300)

15

7542122

NUT-NYLOK

16

7080631

CLIP CABLE RETAIN

18

2460872

HARNESS,CTRL.PANEL,400

19

4040054

INDICNEUT./REV.

20

4040053

INDICHOT TEMPERATURE

21

4010140

INDICATOR"LOW OIL"(SYMBOL) (Symbol)

22

5433733

NUT IGNITION SWITCH

22

4010278

Clé Vierge

22

4012163

SWITCH-IGNITION MT SLV

22

5433534

KEY COVER-KEYSWITCH

22

4010321

Clé Vierge

23

7080229

Nut
