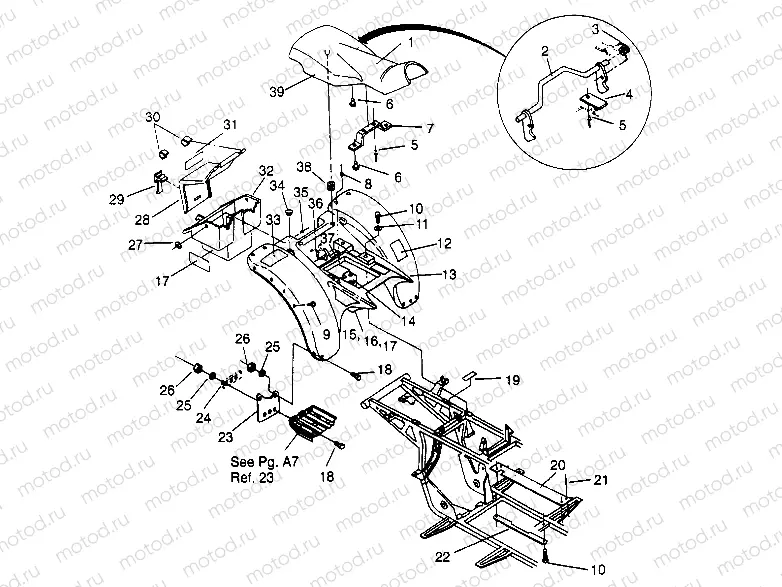

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 TRAIL BLAZER (W947221) Polaris 1994 ATV REAR CAB ASSEMBLY Trail Blazer W947221 (4926832683A006) | REAR CAB ASSEMBLY Trail Blazer W947221 (4926832683A006)

REAR CAB ASSEMBLY Trail Blazer W947221 (4926832683A006) | REAR CAB ASSEMBLY Trail Blazer W947221 (4926832683A006)

REAR CAB ASSEMBLY Trail Blazer W947221 (4926832683A006) | REAR CAB ASSEMBLY Trail Blazer W947221 (4926832683A006)

Например: 2682492-070

1

2682492-070

SEAT GEN II BLK ASM.

2

1011558

LATCH,SEAT

3

7041158

SPRING LATCH

4

5211033

BRACKET LEVER RETAINER

5

7621403

BLIND RIVET

6

5410414

BUMPER RUBBER

7

5222837-067

BRKT SUPPORT SEAT BASE

8

7621432

RIVET 3/16X.402

9

7670052

CLIP, PUSH-ON(10)

10

7512232

Vis

11

7558302

WASHER WROUGHT

12

7072793

DECAL(CPSC),TIRE PRESS(T.B.) [No Longer Available]

13

5430991-133

CAB,REAR,WHITE (Fender)

14

5220880

BRKT REAR HOLDDOWN

15

5810416

TAPE FOIL R.CAB

16

5810424

TAPE FOIL

17

5810310

TAPE, FOIL

18

7512282

BOLT BLACK

19

7072791

DECAL,FILTER ELEMENT [No Longer Available]

20

5222860-067

GUARD,CLUTCH,OUTER

21

7661637

RIVET INTERLOCK Z

22

5211359-067

GUARD,CLUTCH,INNER

23

5850076

MUDFLAP LH LOW REAR

23

5850111

MUDFLAP,RH,LOW.REAR

24

5211131-067

BRKT LH MUD FLAP

25

7555859

WASHER FLAT

26

7542122

NUT-NYLOK

27

7558212

WASHER 13/64X1/2X18GA FL-Y (10

28

5430769-133

LID,TOOLBOX,(WHITE)

29

5410425

STRAP TOOL COMPARTMENT

30

7670050

CLIP LID HINGE

31

7072805

DECAL(CPSC),PASS.WRN. [No Longer Available]

32

5430882

BOX,TOOL COMP.

33

7072786

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

34

5430887

PLUG RACK HOLE

35

7621462

RIVET

36

7080385

RETAINER,TOOL POUCH

37

7073761

DECAL CARB.INFO.

38

5410413

Damper

39

2681723-194

COVER,SEAT,PURP.VELVET
