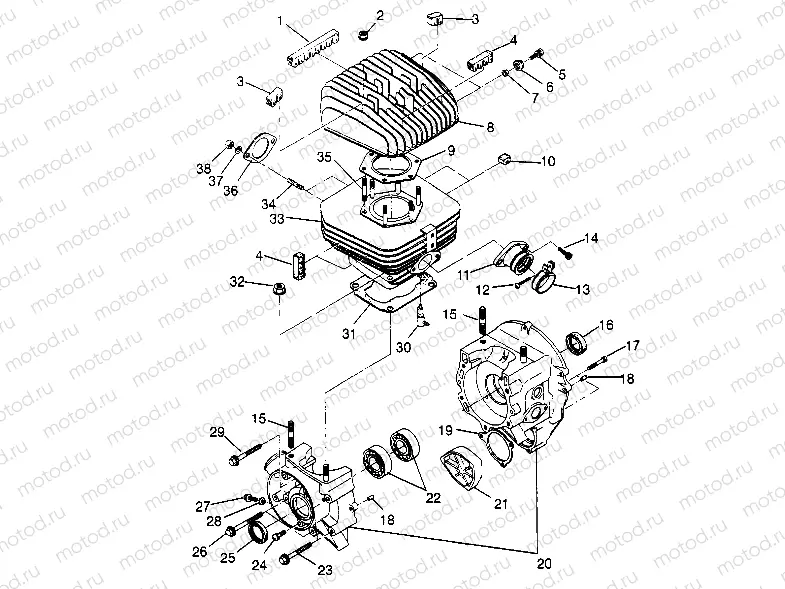

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 TRAIL BLAZER (W947221) Polaris 1994 ATV CRANKCASE and CYLINDER Trail Blazer W947221 (4926832683C005) | CRANKCASE and CYLINDER Trail Blazer W947221 (4926832683C005)

CRANKCASE and CYLINDER Trail Blazer W947221 (4926832683C005) | CRANKCASE and CYLINDER Trail Blazer W947221 (4926832683C005)

CRANKCASE and CYLINDER Trail Blazer W947221 (4926832683C005) | CRANKCASE and CYLINDER Trail Blazer W947221 (4926832683C005)

Например: 3083931

1

3083931

FIN DAMPER #3

2

3082910

NUT-FLANGE

3

3083932

FIN DAMPER #4

4

3083929

FIN DAMPER #1

5

3083730

ASM. BOLT AND WASHER

6

3083731

MOUNTING,RUBBER

7

3083732

Entretoise

8

3086841

HEAD CYLINDER

9

3084015

Joint culasse

10

3083930

FIN DAMPER #2

11

3085013

ADAPTER CARB.

12

3081497

Vis

13

3082257

ASM. BAND ADAPTER

14

3081330

BOLT SOCKET HEAD

15

7520776

STUD-M10X1.25X50

16

3082162

SEAL,OIL

17

3082038

BOLT&WASHER ASM.

18

3086838

Dowel pin

19

3085283

GASKET STARTER(NON-ASBESTOS)

20

3084579

CRANKCASE ASM.

21

3083834

COVER BLIND

22

3084580

BEARING BALL

23

3080739

ASM. BOLT AND WASHER

24

3081635

SCREW&WASHER ASM.

25

3084581

SEAL OIL PTO

26

3083615

BOLT&WASHER ASSY.

27

3083767

Vis de vidange d'huile

28

7555998

WASHER FLAT

29

3082096

BOLT AND WASHER ASSY.

30

3086785

ASM. VALVE CHECK

31

3084016

Joint d'embase cylindre

32

3082911

NUT-FLANGE.

33

3083769

CYLINDER Substituted by 3085541 (Incl. 12-14)

34

3080016

STUD (10)

35

3080283

STUD

36

3083770

Exhaust gasket

37

3080530

Rondelle (Lock)

38

3087199

Nut
