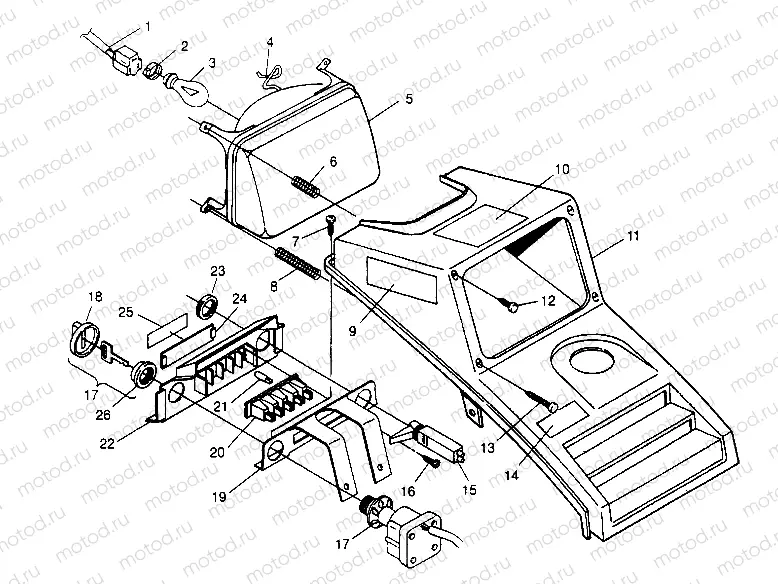

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 TRAIL BLAZER (W947221) Polaris 1994 ATV HEADLIGHT ASSEMBLY Trail Blazer W947221 (4926832683A012) | HEADLIGHT ASSEMBLY Trail Blazer W947221 (4926832683A012)

HEADLIGHT ASSEMBLY Trail Blazer W947221 (4926832683A012) | HEADLIGHT ASSEMBLY Trail Blazer W947221 (4926832683A012)

HEADLIGHT ASSEMBLY Trail Blazer W947221 (4926832683A012) | HEADLIGHT ASSEMBLY Trail Blazer W947221 (4926832683A012)

Например: 2460486

1

2460486

HARNESS,MAIN,(TRL BLAZER)

2

4032066

COVER,SOCKET,H/L.

3

4030028

BULB H/L

4

4032063

RETAINER H/L BULB

5

4032065

HEADLIGHT ASM., INCANDESCENT W/BULB SEAL

6

4032002

SPRING-ADJ

7

7512017

Vis

8

4032041

SPRING ADJ.

9

2670134

ASM. REFLECTOR AMBER

10

7073464

DECAL, CERTIFICATION

11

5430973-194

COVER,OILTANK-H/L,PURP.

12

7518157

SCR-M5X.8X50MM

13

4032042

SCREW ADJUST (ATV)

14

7073024

LABEL, 'U.S.A.'

15

2200188

KIT-CHOKE CONTROL

15

7080371

CABLE CHOKE

16

7511862

Vis

17

4110139

SWITCH,IGNITION,A.D. (See Footnote Below)

18

5433534

KEY COVER-KEYSWITCH

19

5220965-067

BRKT, IGN. PANEL

20

4032037

STRIP, SOCKET

21

4080872

BULB

22

5430995

PANEL, IGNITION

23

7080229

Nut

24

2652049

LENS ASM PILOT LIGHT

25

7072528

DECAL, PANEL [No Longer Available]

26

5432090

NUT IGN.SWITCH
