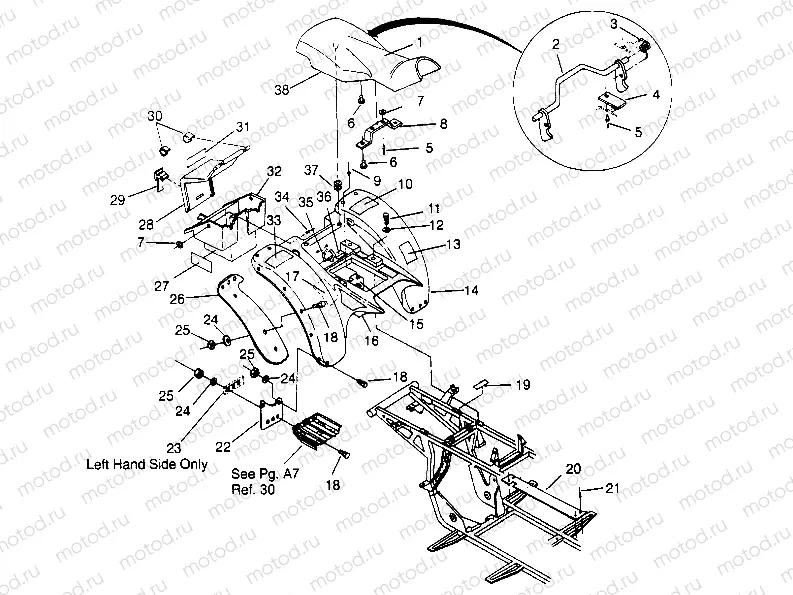

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 300 2X4 (W947530) Polaris 1994 ATV REAR CAB ASSEMBLY 2x4 300 W947530 (4926742674A006) | REAR CAB ASSEMBLY 2x4 300 W947530 (4926742674A006)

REAR CAB ASSEMBLY 2x4 300 W947530 (4926742674A006) | REAR CAB ASSEMBLY 2x4 300 W947530 (4926742674A006)

REAR CAB ASSEMBLY 2x4 300 W947530 (4926742674A006) | REAR CAB ASSEMBLY 2x4 300 W947530 (4926742674A006)

Например: 2682492-070

1

2682492-070

SEAT GEN II BLK ASM.

2

1011558

LATCH,SEAT

3

7041158

SPRING LATCH

4

5211033

BRACKET LEVER RETAINER

5

7621403

BLIND RIVET

6

5410414

BUMPER RUBBER

7

7558212

WASHER 13/64X1/2X18GA FL-Y (10

8

5222837-067

BRKT SUPPORT SEAT BASE

9

7621432

RIVET 3/16X.402

10

7072788

DECAL(CPSC),WARN,R.RACK [No Longer Available]

11

7512232

Vis

13

7072809

DECAL(CPSC),TIRE PRESS(2X4) [No Longer Available]

14

5431271-143

CAB, REAR (Fender)

15

5220880

BRKT REAR HOLDDOWN

16

5810957

FOIL

17

5810991

FOIL SMALL

18

7512282

BOLT BLACK

19

7072791

DECAL,FILTER ELEMENT [No Longer Available]

20

5222860-067

GUARD,CLUTCH,OUTER

21

7661637

RIVET INTERLOCK Z

22

5850076

MUDFLAP LH LOW REAR

22

5850111

MUDFLAP,RH,LOW.REAR

23

5211131-067

BRKT LH MUD FLAP

24

7555859

WASHER FLAT

25

7542122

NUT-NYLOK

26

5850060

FLAP MUD LH REAR

26

5850061

FLAP MUD RH REAR

27

5810310

TAPE, FOIL

28

5430769-1010

LID,TOOLB0X(SIL/GREY)

29

5410425

STRAP TOOL COMPARTMENT

30

7670050

CLIP LID HINGE

31

7072805

DECAL(CPSC),PASS.WRN. [No Longer Available]

32

5430882

BOX,TOOL COMP.

33

7074110

DECAL,LOAD DIST.(4 WHL.)

34

7621462

RIVET

35

7080385

RETAINER,TOOL POUCH

36

7073761

DECAL CARB.INFO.

37

5410413

Damper

38

2681723-070

COVER SEAT BLACK
