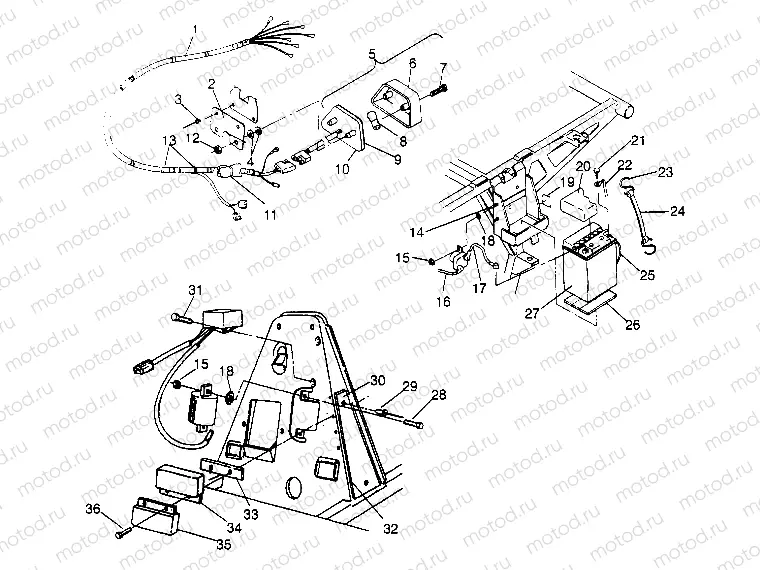

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 300 2X4 (W947530) Polaris 1994 ATV ELECTRICAL/TAILLIGHT ASSEMBLY 2x4 300 W947530 (4926742674C005) | ELECTRICAL/TAILLIGHT ASSEMBLY 2x4 300 W947530 (4926742674C005)

ELECTRICAL/TAILLIGHT ASSEMBLY 2x4 300 W947530 (4926742674C005) | ELECTRICAL/TAILLIGHT ASSEMBLY 2x4 300 W947530 (4926742674C005)

ELECTRICAL/TAILLIGHT ASSEMBLY 2x4 300 W947530 (4926742674C005) | ELECTRICAL/TAILLIGHT ASSEMBLY 2x4 300 W947530 (4926742674C005)

Например: 2460498

1

2460498

HARNESS, MAIN

2

5211391-067

ISOLATOR,TAILLIGHT

3

7621453

RIVET

4

7558301

WASHER FLAT

5

2432034

TAIL LIGHT ASM.

6

4032046

Taillight lens

7

4032029

Vis

8

4030043

BULB

9

4032045

Gasket

10

4032064

BACKING TAILLIGHT

11

2434012

CKT.BREAKER 20 AMP.

12

7670054

NUT PUSH-ON

13

7080138

CABLE TIE

14

7512027

Vis

15

7541925

NUT NYLOK 10-24 Y

16

4010064

CABLE SOLENOID/STARTER

17

4010095

CABLE BATT/ENG. BLK.

18

7571602

Rondelle

19

7072606

DECAL, BATTERY [No Longer Available]

20

5431769

COVER BATTERY

21

2200361

KIT-BATTERY BOLT (SHORT)

22

4010076

CABLE BATTERY-SOLENOID

23

7010032

HOOK-BATTERY STRAP

24

5418182

STRAP-BATTERY HOLD DOWN-C

25

8360009-600

LINE FUEL 1/8 ID 600 CM.

26

5810290

PAD BATTERY

27

4140006

La batterie

28

7512007

Vis

29

7621322

RIVET, POP(50)

30

4040022

BOARD,TERMINAL

31

7512232

Vis

32

5431152

SHIELD,TERM.BOARD

33

5210650

HEAT SINK

34

4060087

RECTIFIER, VOLTAGE

35

4060085

LIMITER REV.SPEED

36

7512018

Vis
