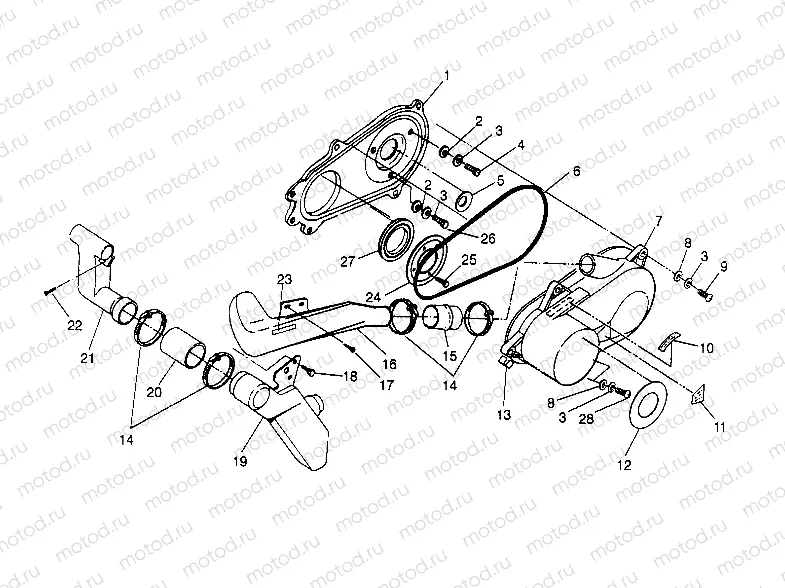

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 300 2X4 (W947530) Polaris 1994 ATV CLUTCH COVER ASSEMBLY 2x4 300 W947530 (4926742674B012) | CLUTCH COVER ASSEMBLY 2x4 300 W947530 (4926742674B012)

CLUTCH COVER ASSEMBLY 2x4 300 W947530 (4926742674B012) | CLUTCH COVER ASSEMBLY 2x4 300 W947530 (4926742674B012)

CLUTCH COVER ASSEMBLY 2x4 300 W947530 (4926742674B012) | CLUTCH COVER ASSEMBLY 2x4 300 W947530 (4926742674B012)

Например: 2200792

1

2200792

KIT CVR IN.CLUTCH

2

7555748

Rondelle

3

7552605

Rondelle

4

7512278

Vis

5

5410489

SEAL COVER CASE

6

5521301

SEAL OUTER CLUTCH COVER

7

5433542

COVER-CLUTCH FRONT RTP

8

7558301

WASHER FLAT

9

7512281

Vis

10

7072787

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

11

7072789

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

12

7072386

DECAL, PVT [No Longer Available]

13

7670051

CLIP CLUTCH COVER

14

7080492

CABLE TIE 11 INCH

15

5410421

BOOT CLUTCH INTAKE

16

5431671

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

17

7512252

SCREW(10)

18

7512018

Vis

19

5431006

DUCT,INLET DOWN TUBE

20

5410509

BOOT INTAKE

21

5431007

DUCT,INLET TOP

22

7512017

Vis

23

7074226

DECAL,DEMAND 4 DRIVE

24

5248228

Bracket, Retainer, Seal

25

LR--

CALIPER, BRAKE, RH

26

7512276

Vis

27

2870661

SEALER,10.3 OZ,SILICONE#732, Substituted by 8560054

27

5410749

SEAL COVER CASE

28

7512222

Vis
