Главная Каталог товаров Triumph EPC 2022 Triumph Bonneville Speedmaster Triumph 2022 (VIN: SMTDAD79) Rear Brake Master Cylinder, Reservoir & Pedal

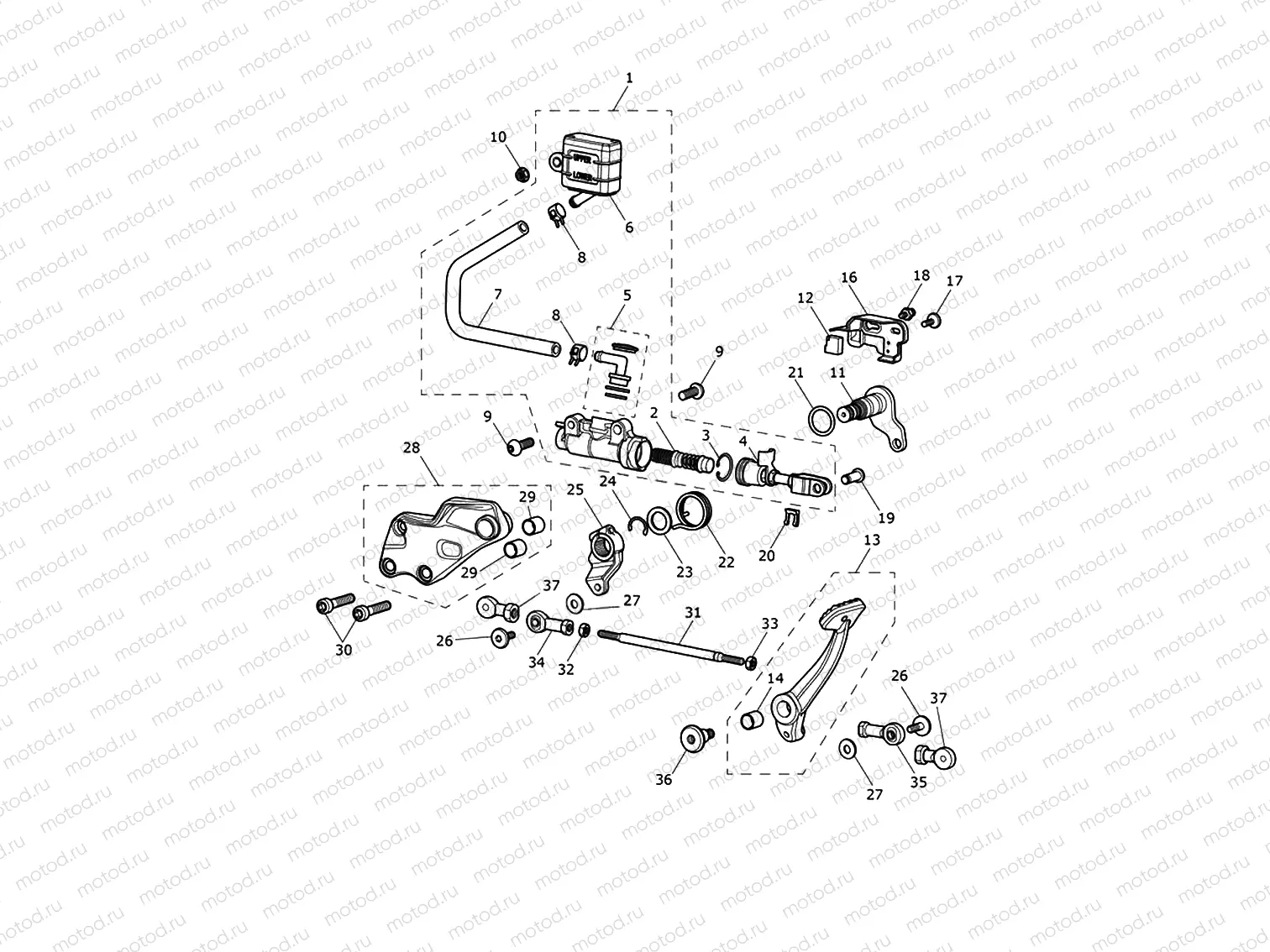

Rear Brake Master Cylinder, Reservoir & Pedal

Rear Brake Master Cylinder, Reservoir & Pedal

Например: T2027021

1

T2027021

Master Cylinder Assembly, Rear

1 шт. в узле

2

T2022110

Kit de réparation pour de frein

1 шт. в узле

3

T2027015

Push Rod Assy, M/Cyl, Rear

1 шт. в узле

4

T2020472

Circlip, M'cyl, Rear

1 шт. в узле

5

T2023207

Connector Set

1 шт. в узле

6

T2024080

M/Cyl Reservoir Assy

1 шт. в узле

7

T2027022

Hose, Reservoir, MCyl, Rear

1 шт. в узле

8

T2023188

Reservoir Hose Clip

2 шт. в узле

9

T3051072

Screw, But/Hd, TX, SS, M8 x 1.

2 шт. в узле

10

T3350003

Locknut, Flanged, M6 x 1.0

1 шт. в узле

11

T2027028

Pivot Shaft, Brake Pedal

1 шт. в узле

12

T2024932

Brake Switch, SPDT

1 шт. в узле

13

T2027024

Pedal, Brake, Fwd

1 шт. в узле

14

T3750020

Bush, PAP, 1215 P14

1 шт. в узле

16

T2027029

Bracket, Rear Brake Switch

1 шт. в узле

17

T3330955

Screw, But/Hd, M5 x 14, Slv, E

1 шт. в узле

18

T2027725

Pin, Brake Switch, Rear, M5

1 шт. в узле

19

T3000301

Pin, Clevis, 8 x 13.7

1 шт. в узле

20

T3000302

Clip, 8mm, Clevis Pin

1 шт. в узле

21

T3550950

Wavy Washer

1 шт. в узле

22

T2023102

Spring, Brake Pedal Return

1 шт. в узле

23

T3550293

Washer, 24 x 17 x 1.5

1 шт. в узле

24

T3503053

C-Clip, 14.9 x 19.4 x 1

1 шт. в узле

25

T2027032

Clamp, Rear Brake M/Cyl, Fwd

1 шт. в узле

26

T3330275

Screw, But/Hd, Tx, M8 x 20, Enc

2 шт. в узле

27

T3550184

Washer, Hardened, 8.2 x 18.7 x

2 шт. в узле

28

T2024937

Bracket, M/Cyl, Rear, Fwd

1 шт. в узле

29

T3750014

Bush

2 шт. в узле

30

T3332127

Cap Head Screw, M10 x 50

2 шт. в узле

31

T2028091

Rod, Brake, M8, Slv

1 шт. в узле

32

T3350309

Nut, LH, M8, Slv

1 шт. в узле

33

T3350303

Nut, M8, Silver

1 шт. в узле

34

T2026142

Rod End, Female, LH, M8, Slv

1 шт. в узле

35

T2044190

Rod End, Female M8

1 шт. в узле

36

T3331520

Bolt, Shld, M8 x 1.25, Slv, Enc

1 шт. в узле

37

T2044195

Boot, M8 Rod End

2 шт. в узле
