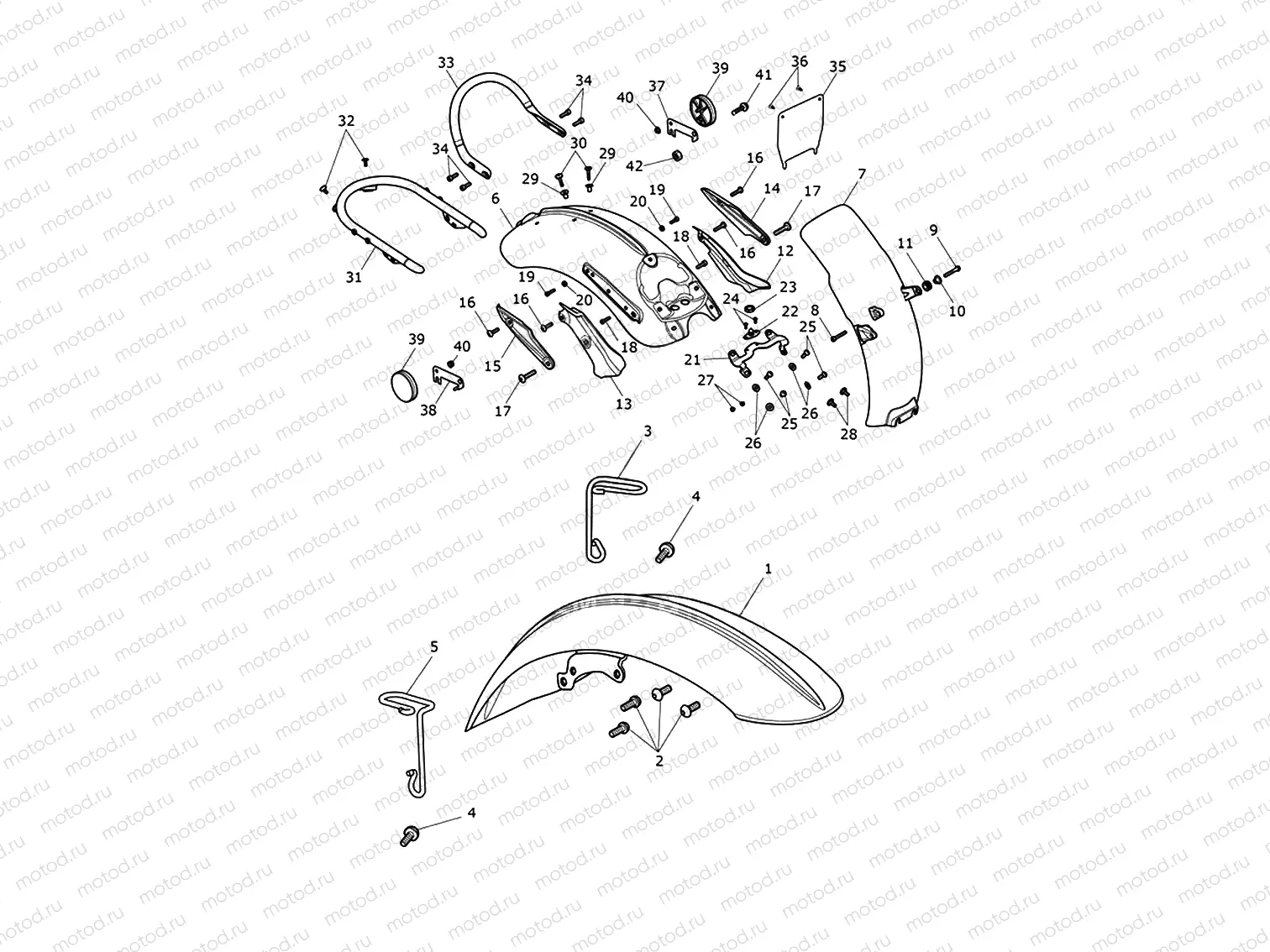

Mudguards

Mudguards

Например: T2308628-PM

1

T2308628-PM

Front mudguard

1 шт. в узле

1

T2308628-PG

Front mudguard

1 шт. в узле

2

T3331044

Screw, Pan/Hd, Tx, M6 x 16, Sl

4 шт. в узле

3

T2307212

Wire Guide, Brake Line, RHS

1 шт. в узле

4

T3331042

Screw, Pan/Hd, Tx, M6 x 12, En

2 шт. в узле

5

T2307211

Wire Guide, Brake Line

1 шт. в узле

6

T2308717-PM

Garde-boue arrière

1 шт. в узле

6

T2308717-PG

arde-boue arrière

1 шт. в узле

7

T2304929

Rear Mudguard, Lower

1 шт. в узле

8

T3050303

Capscrew, SKT HD, M6 x 35, Plt

1 шт. в узле

9

T3331111

Screw, Pan/Hd, Tx, M6 x 55, Sl

1 шт. в узле

10

T3010052

Flanged Sleeve, M6 x 12 x 10.7

1 шт. в узле

11

T3020030

Grommet, Rubber

1 шт. в узле

12

T2304941

Cover, Frame, Pressed, LH

1 шт. в узле

13

T2304942

Cover, Frame, Pressed, RH

1 шт. в узле

14

T2309944

Cover, Frame, Cast, RH

1 шт. в узле

15

T2309945

Cover, Frame, Cast, LH

1 шт. в узле

16

T3205881

Bolt, Truss/Hd, TRX, M8 x 30

4 шт. в узле

17

T3205883

Bolt, Truss/Hd, TRX, M10 x 45

2 шт. в узле

18

T3050333

Screw, Cap/Hd, M6 x 25, Slv

2 шт. в узле

19

T3050334

Screw, Cap/Hd, M6 x 20, Slv

2 шт. в узле

20

T3010902

Sleeve, Flanged, 6.2 x 10 x 3.2

2 шт. в узле

21

T2305345

Seat Bracket, Rider Seat

1 шт. в узле

22

T2307365

Bayonet, Seat

1 шт. в узле

23

T2307366

Spacer, Seat

1 шт. в узле

24

T3332655

Screw, But/HD, M5 x 12. Slv

2 шт. в узле

25

T3335011

Screw, But/Hd, Tx, M8 x 20

4 шт. в узле

26

T3550184

Washer, Hardened, 8.2 x 18.7 x

4 шт. в узле

27

T3350010

Locknut, Flgd, M5

2 шт. в узле

28

T3330858

Bolt, But/Hd, M6 x 15, Shld, S

2 шт. в узле

29

T3010710

Flanged Sleeve, 6.4 x 9.6 x 13

2 шт. в узле

30

T3330739

Screw, But/Hd, M6 x 1 x 30, Sl

2 шт. в узле

31

T2306609

Hoop, Rear Mudguard, Chrome

1 шт. в узле

32

T3331010

Bolt, But/Hd, Skt, M6 x 16, S/

2 шт. в узле

33

T2307134

Grabrail, Chrome

1 шт. в узле

34

T3335012

Screw, But/Hd, Skt, M8 x 25

4 шт. в узле

35

T2308769

Rear Mudguard Rubber

1 шт. в узле

36

T3701170

Plastic Rivet, Screw Type

2 шт. в узле

37

T2701206

Reflector Bracket, LHR

1 шт. в узле

38

T2701207

Reflector Bracket, RHR

1 шт. в узле

39

T2700464

Reflector, Red, Circular

2 шт. в узле

40

T3350010

Locknut, Flgd, M5

2 шт. в узле

41

T3335015

Screw, But/Hd, TX, M8 x 30

1 шт. в узле

42

T3350004

Locknut, Flanged, M8 x 1.25

1 шт. в узле
