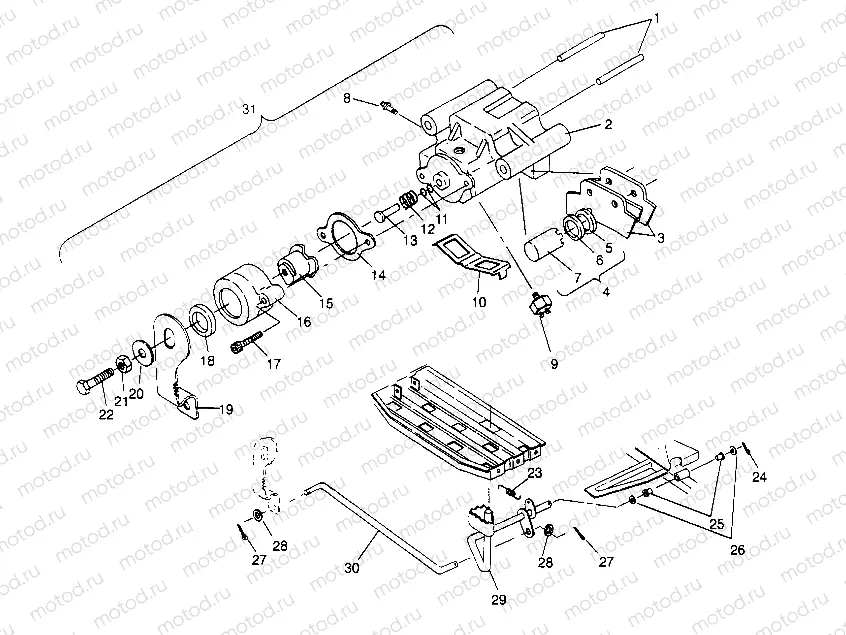

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 SPORT 400L (W948540) Polaris 1994 ATV REAR BRAKE ASSEMBLY Sport 400L W948540 (4927232723B014) | REAR BRAKE ASSEMBLY Sport 400L W948540 (4927232723B014)

REAR BRAKE ASSEMBLY Sport 400L W948540 (4927232723B014) | REAR BRAKE ASSEMBLY Sport 400L W948540 (4927232723B014)

REAR BRAKE ASSEMBLY Sport 400L W948540 (4927232723B014) | REAR BRAKE ASSEMBLY Sport 400L W948540 (4927232723B014)

Например: 7661820

1

7661820

Dowel pin

2

9990005

Crankcase, RH

3

2200464

KIT REAR.BRAKEPAD MED.DUTY

4

2200463

KIT PISTON&SEAL

5

5410766

RING MOLDED (.134)

6

2200463

KIT PISTON&SEAL

7

2200463

KIT PISTON&SEAL

8

7080352

SCREW BLEEDER

9

4110164

SWITCH STOPLIGHT

10

5222232

SPRING,ANTI-RATTLE

11

5411432

O RING

12

7041219

SPRING BRAKE COMP.

13

5020666

PIN,BRAKE CALIPER

14

5830009

GASKET BRAKE

15

9990000

Suspension, Rear

16

9990000

Suspension, Rear

17

7512173

SCREW(10)

18

3610026

SEAL BRAKE

19

5240624

ARM,BRAKE CALIPER

20

7555828

WASHER SPRING

21

7542129

Nut

22

7515145

Vis

23

7042029

Spring

24

7661401

PIN COTTER

25

5431107

BUSHING PEDAL PIVOT

26

7558702

WASHER THRUST

27

7661203

PIN COTTER

28

7555806

WASHER FLAT

29

1910144-067

FOOTBRAKE,BLK.

30

5224531

ROD, BRAKE

31

1910156

CAL.ASM,REAR BRAKE Substituted by 1910180 (Incl. 1-22)
