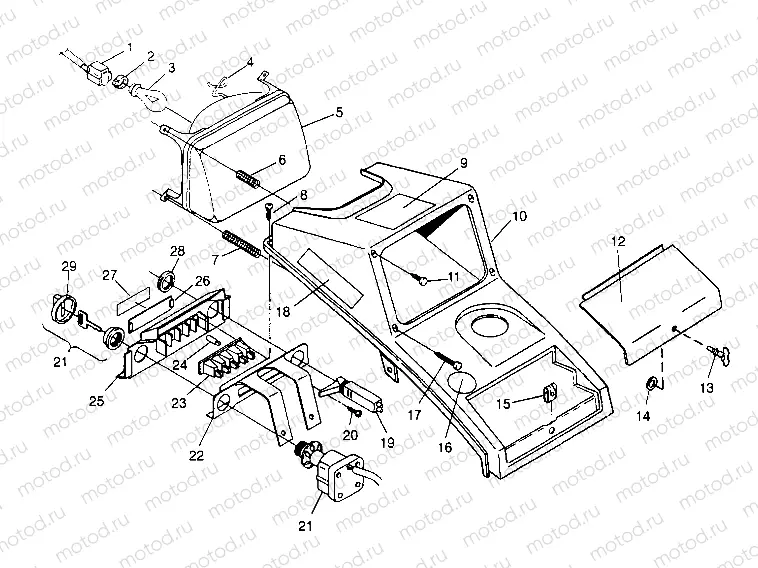

HEADLIGHT ASSEMBLY Sport 400L W948540 (4927232723A013) | HEADLIGHT ASSEMBLY Sport 400L W948540 (4927232723A013)

HEADLIGHT ASSEMBLY Sport 400L W948540 (4927232723A013) | HEADLIGHT ASSEMBLY Sport 400L W948540 (4927232723A013)

Например: 2460428

1

2460428

HARNESS,HEADLIGHT

2

4032066

COVER,SOCKET,H/L.

3

4030028

BULB H/L

4

4032063

RETAINER H/L BULB

5

4032038

HEADLIGHT ASM.

6

4032002

SPRING-ADJ

7

4032041

SPRING ADJ.

8

7512017

Vis

9

7073464

DECAL, CERTIFICATION

10

5431202-136

COVER,(P.RED),H/L.

11

7518157

SCR-M5X.8X50MM

12

5431201-136

DOOR,ACCESS(P.RED)

13

7670064

FASTENER, 1/4 TURN(10)

14

7670065

RING SPLIT RETAINER

15

7670066

RECEPTACLE,CLIP-ON(10)

16

7074695

LOGO 40 YEARS

17

4032042

SCREW ADJUST (ATV)

18

LR--

CALIPER, BRAKE, RH

19

2200188

KIT-CHOKE CONTROL

19

7080371

CABLE CHOKE

20

7511862

Vis

21

4110140

SWITCH IGNITION

22

5220965-067

BRKT, IGN. PANEL

23

4032037

STRIP, SOCKET

24

4080872

BULB

25

5430995

PANEL, IGNITION

26

2652049

LENS ASM PILOT LIGHT

27

7072528

DECAL, PANEL [No Longer Available]

28

7080229

Nut

29

5433534

KEY COVER-KEYSWITCH
