Главная Каталог товаров Polaris EPC 1989 Polaris ATV Polaris 1989 Big Boss 4x6 (X898627) Polaris 1989 ATV Muffler Mounting (4915951595008A) | Muffler Mounting (4915951595008A)

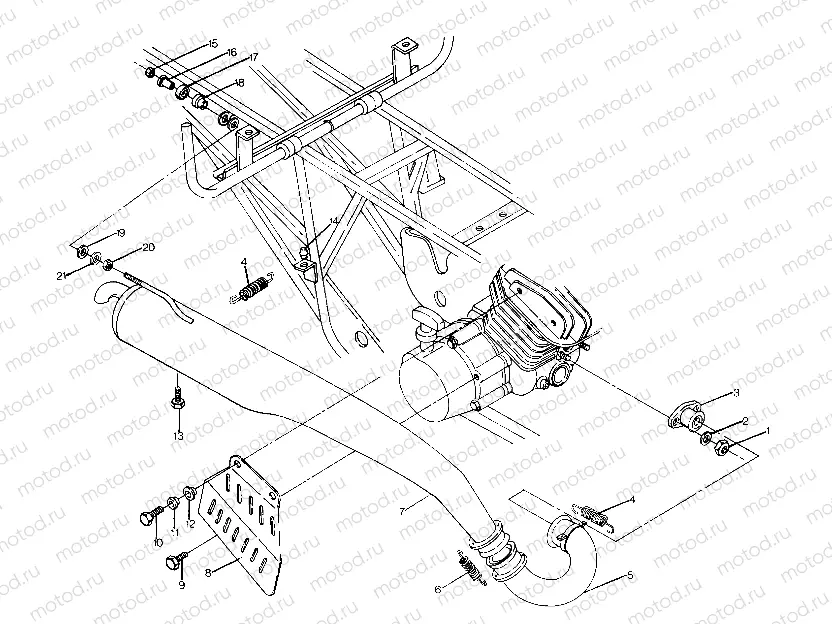

Muffler Mounting (4915951595008A) | Muffler Mounting (4915951595008A)

Muffler Mounting (4915951595008A) | Muffler Mounting (4915951595008A)

Например: 3087199

1

3087199

Nut

2

3080530

Rondelle (Lock)

3

1260509

MANIFOLD

4

7042029

Spring

5

1260511

PIPE, HEADER

6

7041687

Spring

7

1260524-029

MUFFLER SPK ARR 4WD BLK

8

5222117

SHIELD,MUFFLER,BLACK Substituted by 5220671-067

9

3083729

ASM. BOLT&WASHER

10

3083730

ASM. BOLT AND WASHER

11

3083732

Entretoise

12

3083731

MOUNTING,RUBBER

13

7512666

Vis

14

5410467

DAMPNER VIB.

15

7542324

Nut (SELF-LOCKING)

16

5020438

BUSHING,MUFFLER MT.

17

5220630

CAP,VIB. DAMPNER

18

5410326

DAMPENER-MTR.MT.

19

5410436

Rondelle (Rubber)

20

7542301

NUT HEX

21

7555716

Rondelle
