Главная Каталог товаров Polaris EPC 1989 Polaris ATV Polaris 1989 Big Boss 4x6 (X898627) Polaris 1989 ATV Clutch Cover Assembly (4915951595024A) | Clutch Cover Assembly (4915951595024A)

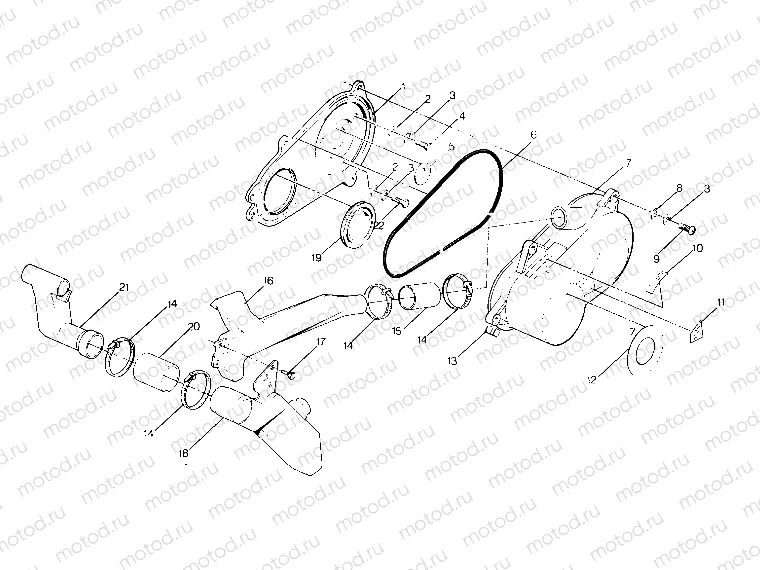

Clutch Cover Assembly (4915951595024A) | Clutch Cover Assembly (4915951595024A)

Clutch Cover Assembly (4915951595024A) | Clutch Cover Assembly (4915951595024A)

Например: 2200803

1

2200803

KIT INNER CLUTCH CVR.

2

7555748

Rondelle

3

7552605

Rondelle

4

7512278

Vis

5

5410489

SEAL COVER CASE

6

5521060

Desc not available [No Longer Available]

7

5430771

COVER, CLUTCH,FRONT

8

7558301

WASHER FLAT

9

7512281

Vis

10

7072603

DECAL,CLUTCH COVER [No Longer Available]

11

7072710

DECAL,ENG-CLUTCH MOD. Substituted by 7072601

12

7072386

DECAL, PVT [No Longer Available]

13

7670051

CLIP CLUTCH COVER

14

7080272

STRAP BLK

15

5410423

BOOT, INTAKE

16

5431010

DUCT, AIR OUTLET

17

7512018

Vis

18

5431006

DUCT,INLET DOWN TUBE

19

5410411

SEAL,ENG./CLUTCH

20

5410509

BOOT INTAKE

21

5431007

DUCT,INLET TOP

22

2870661

SEALER,10.3 OZ,SILICONE#732, Substituted by 8560054

22

2870660

ADHESIVE,(LOCTITE) Substituted by 2870769

22

7512276

Vis
