Главная Каталог товаров Polaris EPC 1989 Polaris ATV Polaris 1989 Big Boss 4x6 (X898627) Polaris 1989 ATV Front Strut Assembly (4915951595010A) | Front Strut Assembly (4915951595010A)

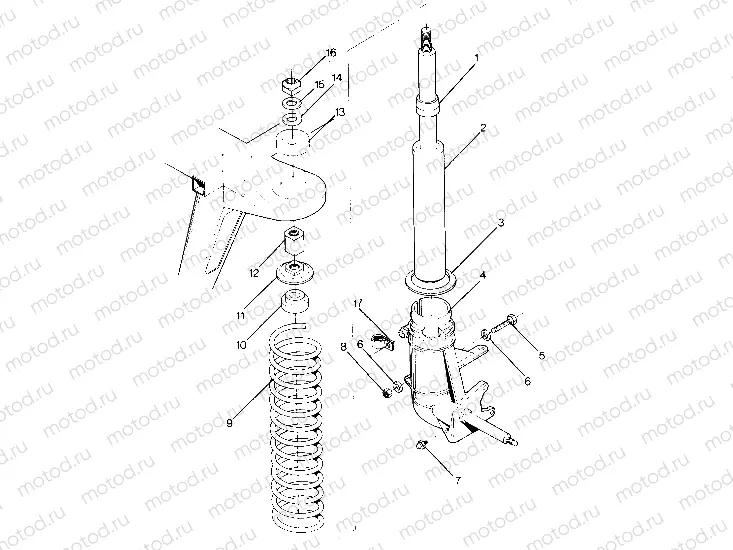

Front Strut Assembly (4915951595010A) | Front Strut Assembly (4915951595010A)

Front Strut Assembly (4915951595010A) | Front Strut Assembly (4915951595010A)

Например: 5410429

1

5410429

BUMPER RUBBER

2

7041451

STRUT ASM FRONT 25MM.

3

5211115

Rondelle

4

5130655

SUPPORT,LH STRUT&SPINDLE Substituted by 5130803

4

5130656

SUPPORT,RH STRUT&SPINDLE Substituted by 5130804

5

7515339

Vis

6

7558402

WASHER FLAT

7

7080306

FITTING LUBE.W/BALL CK.

8

7542303

NUT FLEX-LOC

9

7041215

"""SPRING STRUT RED"""

10

5220602

RETAINER,SPRING,TOP

11

5432871

PIVOT BALL BOTTOM

12

5130668

SPACER THREADED

13

5432872

PIVOT BALL TOP

14

5810291

SPACER RUBBER

15

7555749

Rondelle

16

7542507

NUT FLEX LOC

17

7080573

CLAMP RUBBER-COATED .562
