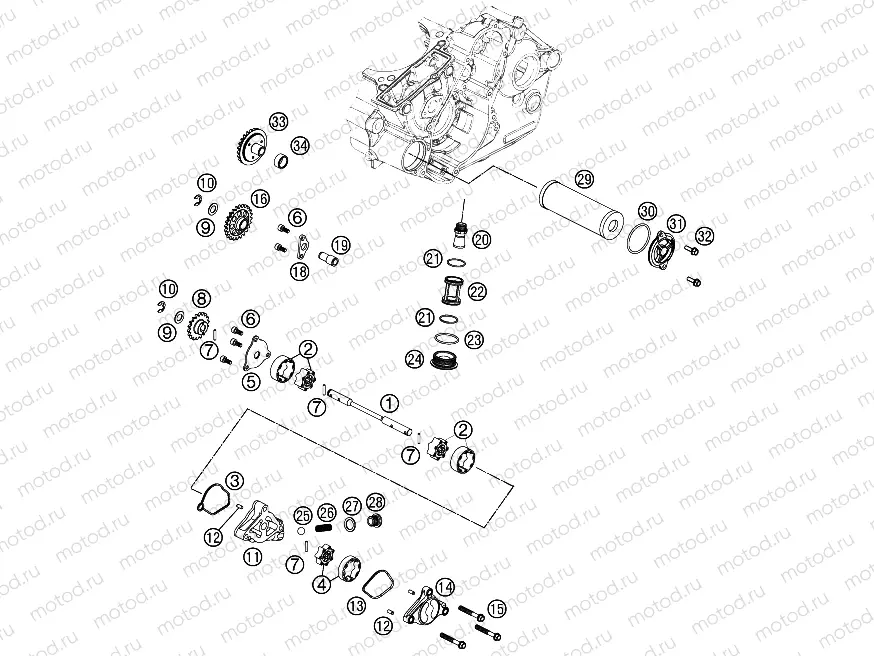

LUBRICATING SYSTEM

LUBRICATING SYSTEM
Например: 83538002000
1
83538002000
OIL PUMP SHAFT
2
77338107100
Pompe à huile
3
77338012000
GASKET PRESSURE PUMP CASE
4
77338207100
Pompe à huile
5
77338004100
PUMP COVER 07
6
0912050123
AH SCREW DIN0912-M 5X12
7
0402031580
NEEDLE ROLLER DIN5402 3X15,8
8
77338001100
OIL PUMP GEAR 18-T
9
77338023000
WASHER 10,2X18X1
10
0799080000
retaining washer DIN 6799 - 8
11
77338010100
PRESSURE PUMP CASE
12
0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
13
77338112000
GASKET PRESSURE PUMP COVER
14
77338013100
PRESSURE PUMP COVER
15
0025060406
Vis
16
77338000150
OILPUMP IDLER GEAR 24-T.
18
77338061050
Rondelle (Lock)
19
77338061000
BEARING BOLT
20
77338022000
OIL INTAKE SNORKEL
21
0770023015
O-RING 23,00X1,50 NBR 70
22
77338016100
OIL SCREEN CPL.
23
0770300020
O-Ring (30x2,0 FPM)
24
77338019100
PLUG SCREW
25
0401100000
BALL D=10 DIN 5401
26
77338026100
COIL SPRING
27
0603142016
CU-SEAL RING 14X20X1,5 LC8 02
28
60038033050
PLUG SCREW M14X1,5 ALU AH
29
83538005000
Filtre à huile
30
0770400025
O-Ring
31
75038041200
OILFILTER CAP
32
0025050166
Vis
33
83530080100
CENTRIFUGALABSORBER CPL.
34
0618142014
NEEDLE SLEEVE HK 1414L RS
