Главная Каталог товаров KTM EPC 2012 KTM Offroad KTM 2012 ATV KTM 2012 Offroad 505 SX ATV (8500LQ) [EU] KTM FRONT-END

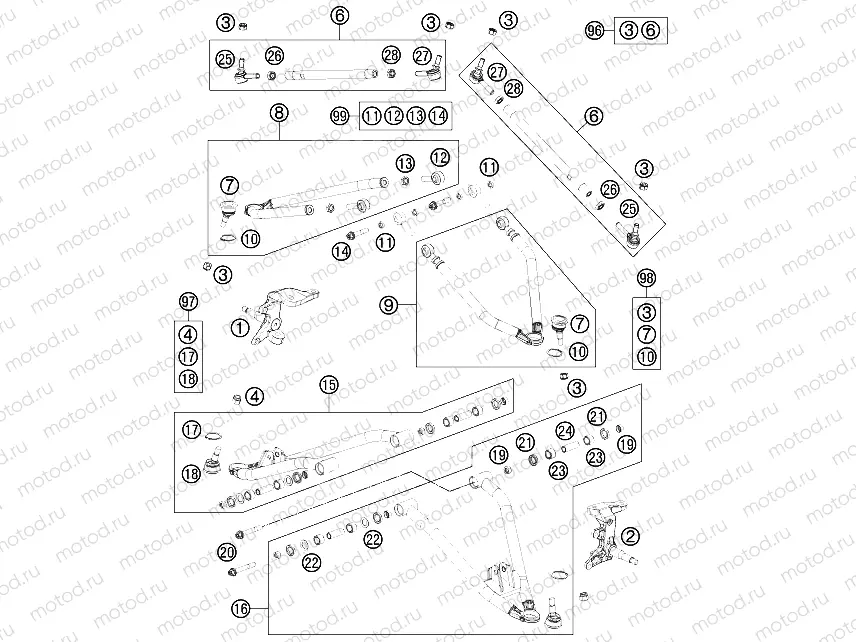

FRONT-END

FRONT-END
Например: 83061106000
1
83061106000
WHEEL CARRIER FRONT RIGHT CPL
2
83061005200
WHEEL CARRIER L/S CPL.
3
0982101253
SELF LOCK.NUT M10X1,25
4
83061005025
SELF LOCK.NUT M12X1,5
6
83561010044
TRACK RODS CPL. SX
7
83061001050
BALL HEAD M10X1,25
8
83061103044
A-ARM TOP RIGHT CPL. SX
9
83061101044
A-ARM TOP LEFT CPL. SX
10
0471320150
CIRCLIP DIN0471-32X1,5
11
83061001025
SPACER BUSHING F. BALLJOINT
12
83061001051
SWIVEL HEAD
13
0936120123
HEXAGON NUT DIN 936 M12x1,25
14
0023100523
COLLAR SCREW M10X52 TX
15
83061104044
A-ARM BOTTOM RIGHT CPL. SX
16
83061102044
A-ARM BOTTOM LEFT CPL. SX
17
0471350150
CIRCLIP DIN0741-35X1,5
18
83061002050
BALL HEAD M12X1,5
19
83061034000
BUCKET F. SHAFT SEAL RING
20
0023100703
COLLAR SCREW M10X70 TX
21
0760172660
SHAFT SEAL RING 17X26X6
22
83061015000
STOP DISK 15,2X25X1 MM
23
83061079000
NEEDLE BEARING HMK 1515
24
83061032000
BUSHING SLEEVE F. A/ARM
25
83061010002
BALL HEAD TRACK RODS RIGHT
26
83061010004
NUT RIGHT
27
83061010001
BALL HEAD TRACK RODS LEFT
28
83061010003
NUT LEFT
96
00050010011
TRACK ROD KIT CPL. ATV
97
00050010008
BALL JOINT KIT LOWER ATV
98
00050010009
BALL JOINT KIT UPPER ATV
99
00050010010
UPPER A ARM SWIVEL HEAD KIT
