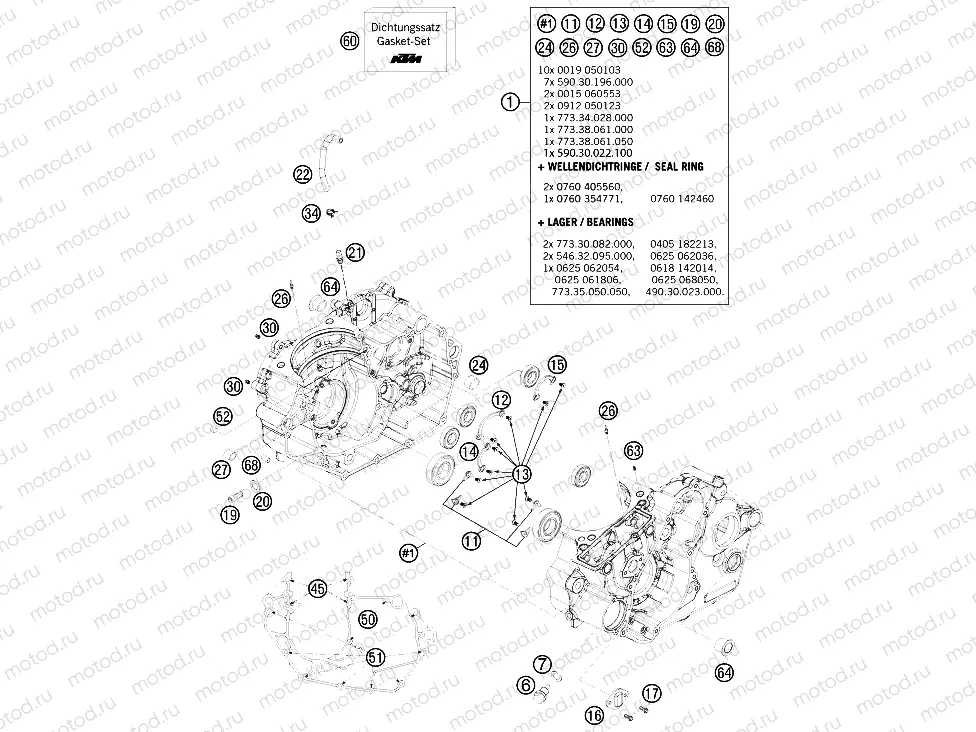

ENGINE CASE

ENGINE CASE
Например: 83530000044
1
83530000044
ENGINE CASE 08
6
58030021100
Vis de vidange d'huile
7
58038022000
Rondelle
11
77330085000
BUSHING RETAINING PLATE
12
77333022100
BUSHING RETAINING PLATE
13
0019050106S
INT. TORX FLAT HEAD M5X10 10.9
14
77334090000
BUSHING RETAINING PLATE
15
77333024100
BUSHING RETAINING PLATE
16
77336075050
RETAINING PLATE
17
0025050106
HH collar screw M5x10 TX30
19
0012080203
AH SCREW DIN6912-M 8X20
20
0603082121
SEAL RING CU DIN7603- 8X12X1
21
59030022100
BLEEDER FLANGE M12X1,5 WS=13
22
83531050000
ENGINE BREATHER TUBE
24
59030024000
DOWEL 17 X 19 X 12
26
60030063050
OIL JET 50 05
27
54630027000
DOWEL BUSHING 13,8X11X12
30
59030058000
JET 100 BING(44-031/180) M4
34
58431082100
YDNAC-CLAMP 10173 (16MM) '98
45
77330067170
SCREW M7-1,0X70
50
0025060706
Vis
51
0025060556
Vis
52
0402080120
CYLINDER ROLLER ZRO. 8,0X12 M4
60
77330099001
GASKET SET 450/505 SX-F
63
77338029052
THROTTLE M5X10X1
64
75030010000
CASE BUSH
68
59030023100
Dowel, 6x8x11.5
