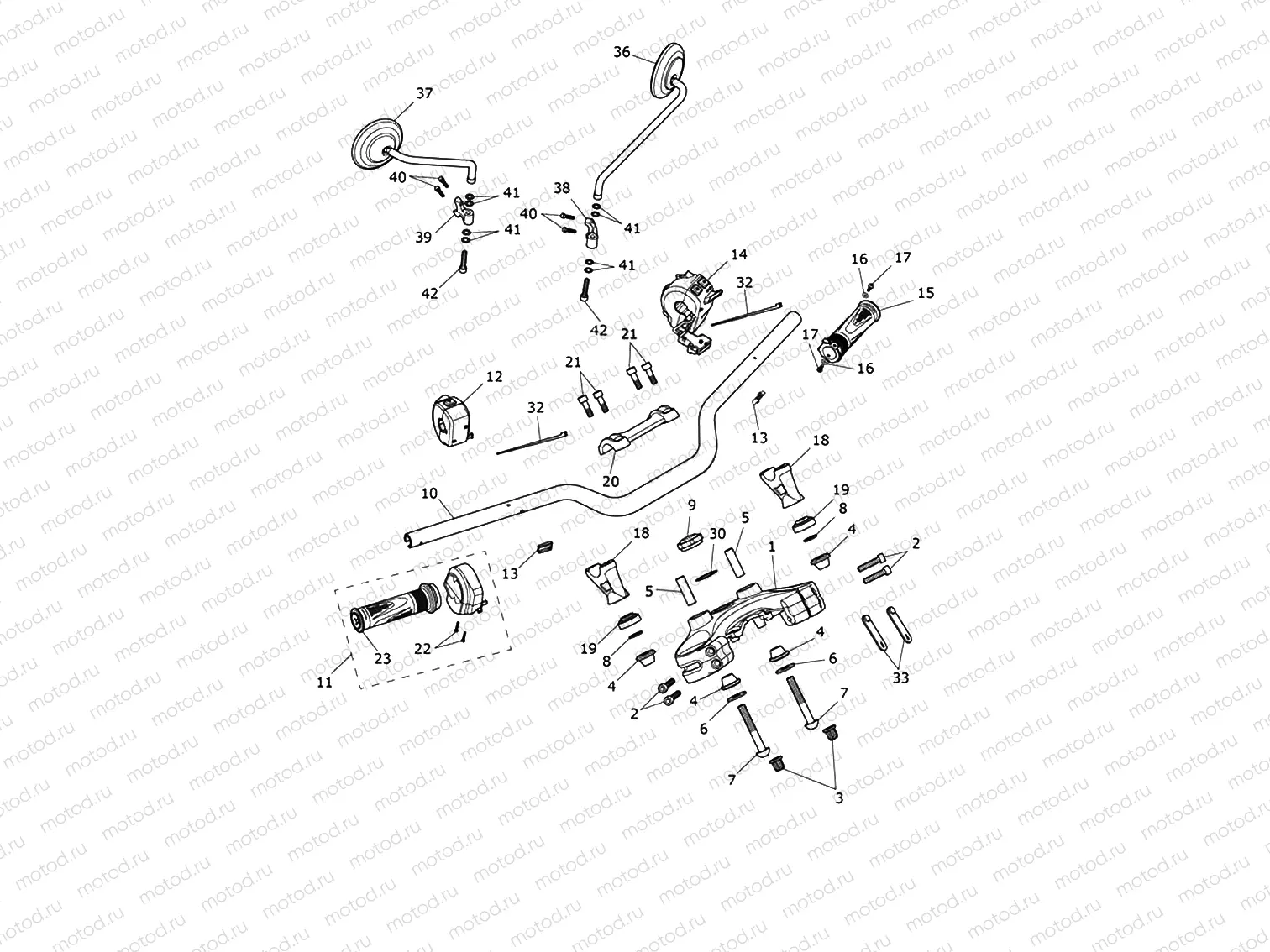

Handlebars, Top Yoke & Mirrors

Handlebars, Top Yoke & Mirrors

Например: T2041761

1

T2041761

Upper Yoke

1 шт. в узле

2

T3050324

Screw, Cap/Hd, M8 x 1.25 x 35,

4 шт. в узле

3

T2703780

Grommet, Headlight Bracket

2 шт. в узле

4

T2042136

Rubber Bush, Handlebar Clamp

4 шт. в узле

5

T2045065

Sleeve, Flanged, Handlebar

2 шт. в узле

6

T3555030

Washer, 10.5 x 30 x 2.5

2 шт. в узле

7

T3332552

Bolt, Skt/Hd, M10, 75, LG

2 шт. в узле

8

T3550632

Washer, 10.5 x 21 x 2

2 шт. в узле

9

T2049880

Nut, Upper Yoke, M25

1 шт. в узле

10

T2042445

Handlebar, Aluminium, Natural

1 шт. в узле

11

T2042226

Sensor, AP, Cruise

1 шт. в узле

12

T2041764

Switchcube, RH, Variant 6

1 шт. в узле

13

T2049701

Switchcube Mounting Block

2 шт. в узле

15

T2043789

Grip, Handlebar, LH

1 шт. в узле

16

T3550500

Washer, 4.3 x 9.0 x 0.8

2 шт. в узле

17

T3331439

Screw, S/Tap, Pan/Hd, M4 x 10,

2 шт. в узле

18

T2042598

Clamp, Handlebar Lower, Black

2 шт. в узле

19

T2042653

Spacer, Handlebar Clamp

2 шт. в узле

20

T2049511

Clamp, Handlebar Upper, Etched

1 шт. в узле

20

T2042946

Clamp, Handlebar Upper, Black

1 шт. в узле

21

T3051097

Screw, Cap/Hd, M8 x 25, Silver

4 шт. в узле

22

T3050314

Bolt, M5 x 20

2 шт. в узле

23

T2042091

Grip, Handlebar, RH

1 шт. в узле

30

T3550525

Washer, 25.5 x 35 x 0.5

1 шт. в узле

32

T3700015

Cable Tie, 185.7 Long

2 шт. в узле

33

T3700259

Rubber Band, 43mm

2 шт. в узле

36

T2060087

Mirror Assy, LH

1 шт. в узле

37

T2060088

Mirror Assy, RH

1 шт. в узле

38

T2060642

Bracket, Mirror, LH

1 шт. в узле

39

T2060643

Bracket, Mirror, RH

1 шт. в узле

40

T3050301

Screw, Cap/Hd. M5 x 20, Blk

4 шт. в узле

41

T3550278

Washer, Low FR, 8.5 x 14

8 шт. в узле

42

T3051033

Screw, Cap/Hd, M8 x 40, Enc

2 шт. в узле
