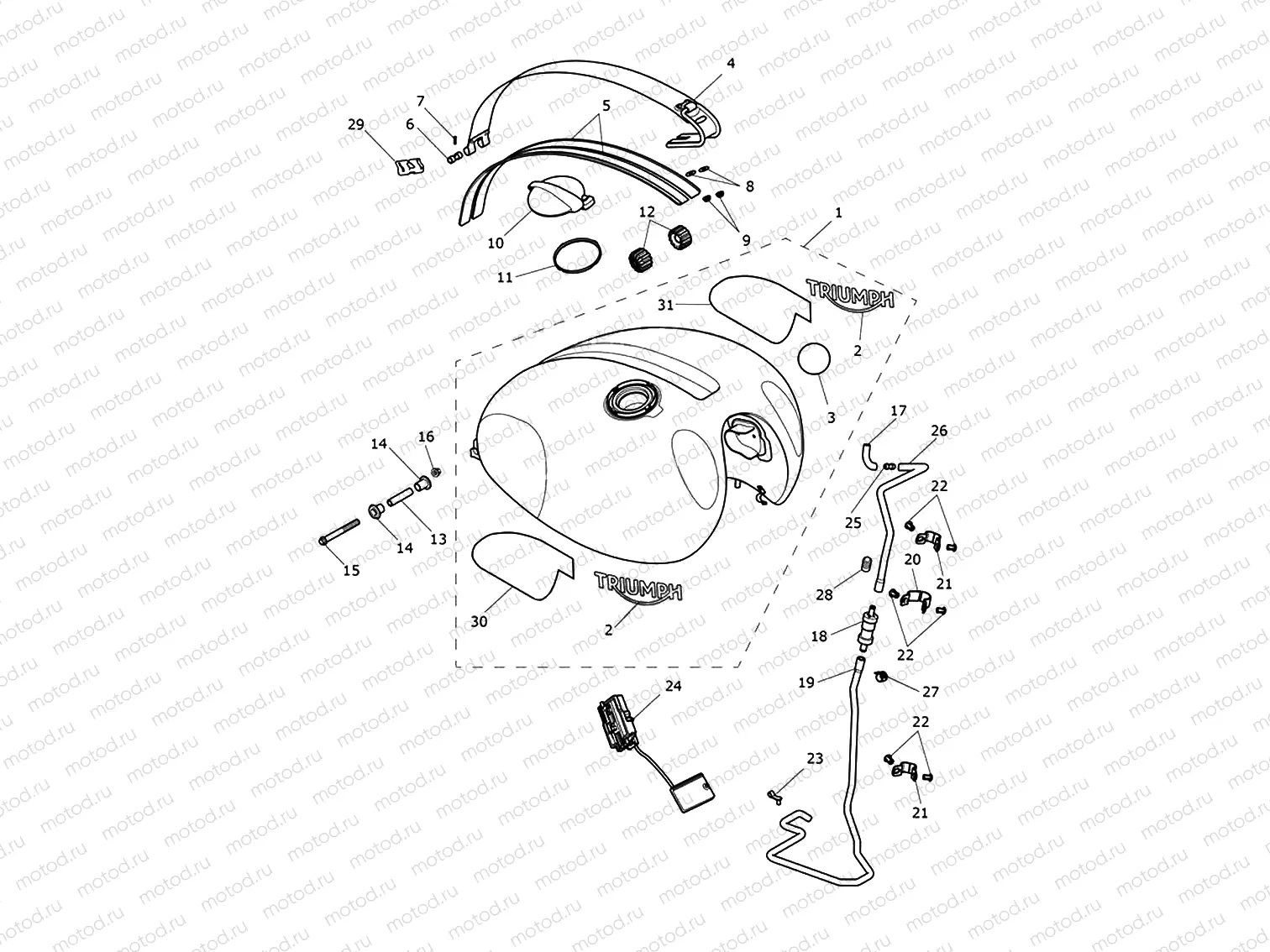

Fuel Tank - Steve McQueen Edition

Fuel Tank - Steve McQueen Edition

Например: T2401685-HN

1

T2401685-HN

Fuel Tank Assembly

1 шт. в узле

2

T2402702

Decal, Fuel Tank, Gold

2 шт. в узле

3

T2402703

Decal, Fuel Tank

1 шт. в узле

4

T2403710

Strap, Fuel Tank, Fabrication

1 шт. в узле

5

T2403805

Gasket, Tank Strap, Adhesive

2 шт. в узле

6

T2401447

ank Strap, Boss

1 шт. в узле

7

T3330659

Screw, Pan/Hd, TX, M5 x 25, Enc

1 шт. в узле

8

T3551178

Washer, M5 x 15 x 1.6

2 шт. в узле

9

T3350010

Locknut, Flgd, M5

2 шт. в узле

10

T2400812

Fuel Filler Cap, Monza

1 шт. в узле

11

T2401403

Fixture Ring, Plastic

2 шт. в узле

12

T2400854

ank Mount Bush

2 шт. в узле

13

T2401401

urned Spacer, Tank Mount

1 шт. в узле

14

T2403597

Rubber Bush

2 шт. в узле

15

T3202330

Bolt, RHHF, M6 x 90, Slv

1 шт. в узле

16

T3350003

Locknut, Flanged, M6 x 1.0

1 шт. в узле

17

T1240644

Hose, Tank to Restrictor

2 шт. в узле

18

T2405042

Roll Over Valve

1 шт. в узле

19

T2401581

Hose, Roll Over to Drain

1 шт. в узле

20

T1241673

Guide, Hose & Valve

1 шт. в узле

21

T2101679

Hose Guide

2 шт. в узле

22

T3700120

Rivet, Plastic

6 шт. в узле

23

T3700091

Clip cable

1 шт. в узле

24

T2402031

Jauge de niveau de carburant

1 шт. в узле

25

T2401851

Restrictor, Breather Hose

1 шт. в узле

26

T2401969

Hose, Restrictor to Rollover Valve

1 шт. в узле

27

T3700440

Clip, Hose, 11-12.5mm

1 шт. в узле

28

T1210385

Check Valve

1 шт. в узле

29

T2401803

Shield, Tank Strap

1 шт. в узле

30

T2404873

Decal, Fuel Tank, Brushed, RH

1 шт. в узле

31

T2407595

Decal, Fuel Tank, Brushed, LH

1 шт. в узле
