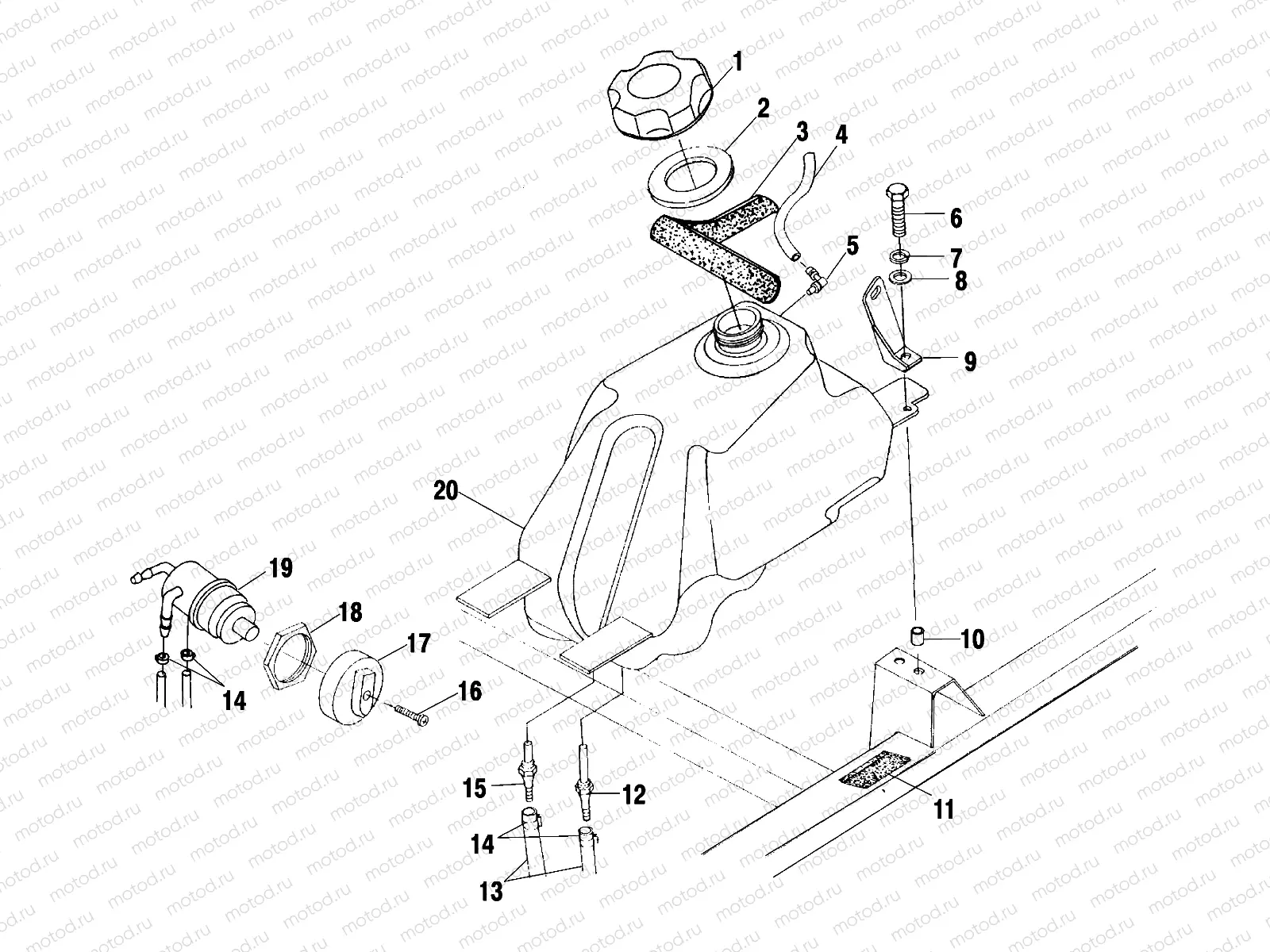

FUEL TANK - A02CH50 ALL OPTIONS (4967436743A12) | FUEL TANK - A02CH50 ALL OPTIONS (4967436743A12)

FUEL TANK - A02CH50 ALL OPTIONS (4967436743A12) | FUEL TANK - A02CH50 ALL OPTIONS (4967436743A12)

Например: 5450389

1

5450389

Fuel cap

2

5812123

Gasket

3

5812210

SEAL-FOAM 24.5 IN

4

8360009-600

LINE FUEL 1/8 ID 600 CM.

5

5431053

VENT TANK

6

7512247

Vis

7

7552801

Rondelle (Lock)

8

7558301

WASHER FLAT

9

5247185

BRKT-FUEL COVER MT RH PLTD

9

5222155

BRKT-FUEL COVER MNT RH PLTD

9

5222154

BRKT-FUEL COVER MNT LH PLTD

9

5247184

BRKT-FUEL COVER MT LH PLTD

10

7547069

NUTSERT HEX

11

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

12

7052150

FITTING FUEL OUT MAIN 4 Y

13

8450040-600

LINE FUEL 1/4 ID(600 CM.)

14

7080003

CLAMP HOSE

15

7052149

FITTING FUEL OUT RES. Z

16

7517505

Vis

17

5432559

KNOB FUEL VALVE

18

5432733

NUT FUEL VALVE

19

7052161

VALVE 3-WAY

20

2520144

TANK ASM,FUEL (Incl. 13,16)
