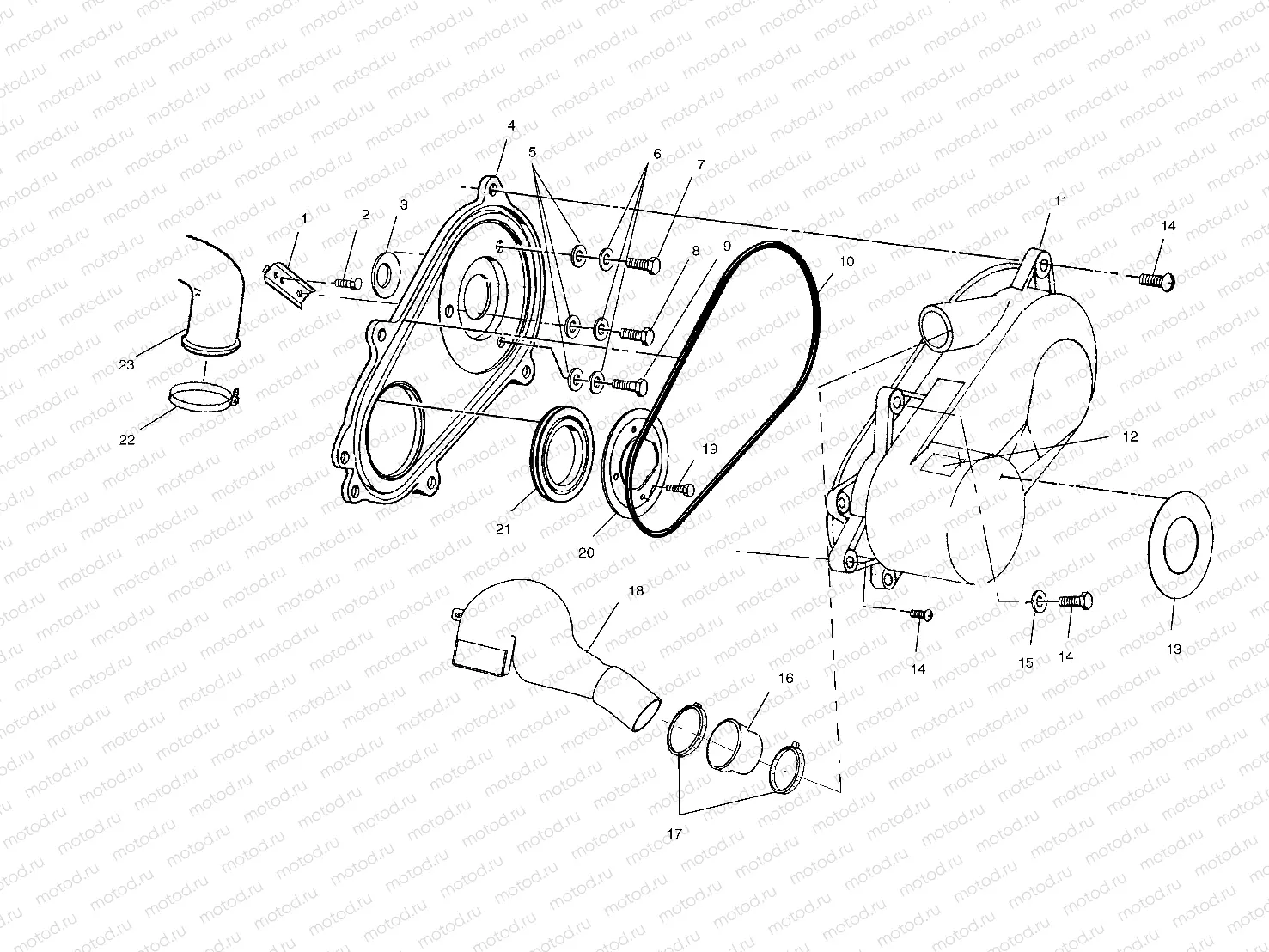

CLUTCH COVER - A02CH50 ALL OPTIONS (4967436743C07) | CLUTCH COVER - A02CH50 ALL OPTIONS (4967436743C07)

CLUTCH COVER - A02CH50 ALL OPTIONS (4967436743C07) | CLUTCH COVER - A02CH50 ALL OPTIONS (4967436743C07)

Например: 1040519-067

1

1040519-067

BRKT,R.CLUTCH CVR,BLK.

2

7512240

Vis

3

5410489

SEAL COVER CASE

4

2201851

COVER INNER CLUTCH KIT SVC 863

5

7555748

Rondelle

6

7552801

Rondelle (Lock)

7

7512247

Vis

8

7512277

Vis

9

7512278

Vis

10

5526450

SEAL-OUTER CLUTCH COVER

11

5438142-070

COVER-CLUTCH OUTER HV BLK

12

7078689

Gebruik/Utilisez 7078689

13

7077666

DECAL"AUTO./EBS",CLUTCH (Nor)(Swed)

13

7074782

DECAL,AUTO.TRANSMISSION

14

7555935

Rondelle

15

7512094

Vis

16

5411489

BOOT DUCT HI-FLOW

17

7080761

CABLE TIE 14

18

5433980

DUCT-CLUTCH OUTLET 16.6

19

LR--

CALIPER, BRAKE, RH

20

5242046

BRKT-CLUTCH SEAL

21

5412637

SEAL-COVER CASE ENGINE

22

7080511

CLAMP NARROW BAND

23

5432086

DUCT-AIR INLET, CLUTCH
